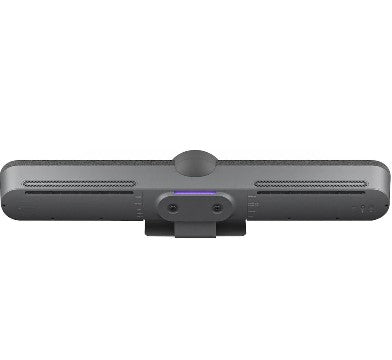

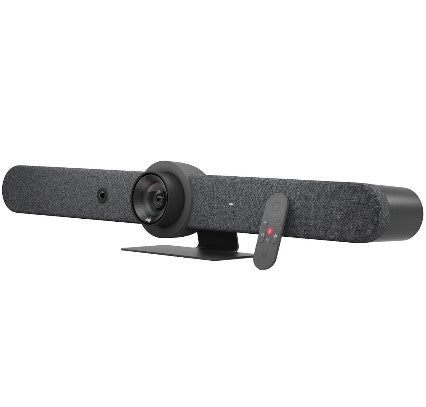

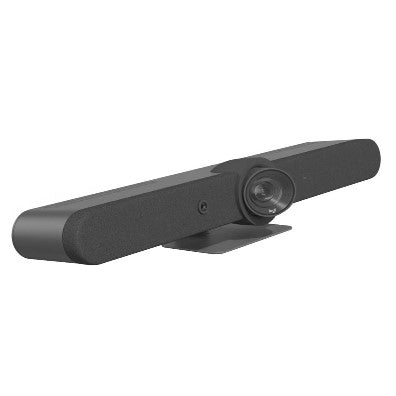

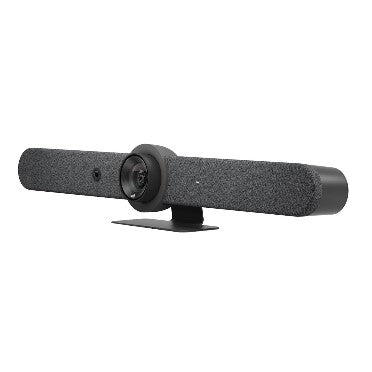

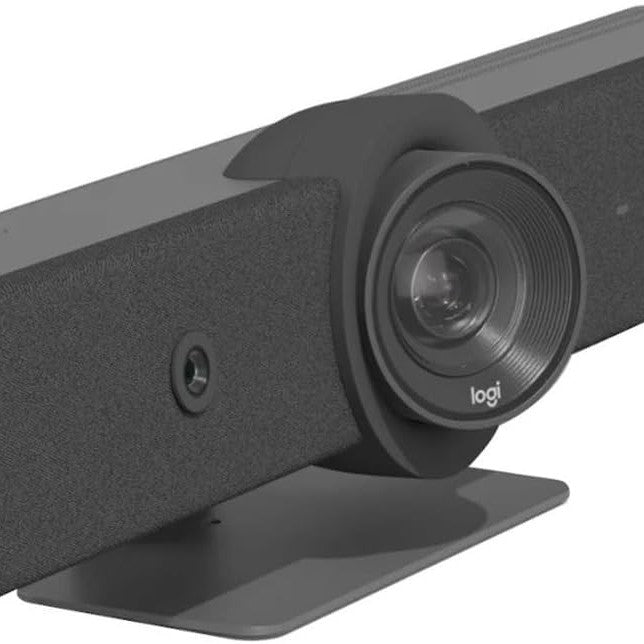

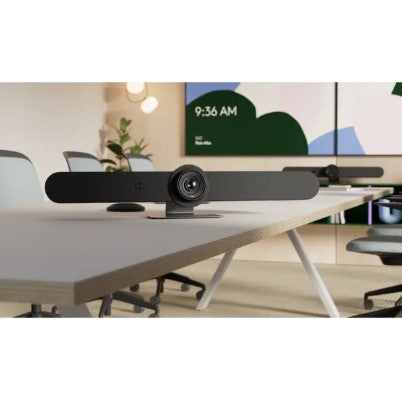

LOGITECH Rally Bar

Features

• ALL-IN-ONE VIDEO BAR FOR MEDIUM AND LARGE ROOMS: Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more
• EXPAND THE CONVERSATION: Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls
• ENSURE EVERYONE IS SEEN AND HEARD: AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers
• MANAGE REMOTELY WITH SYNC: Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform
• CERTIFIED FOR BUSINESS: Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet

Specifications

Dimensions

• Height: 164 mm
• Width: 910 mm
• Depth: 130.5 mm
• Lens Depth: 28.8 mm
• Weight: 7.08 kg

General specs

• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
• Device Management: Logitech Sync
• Displays Supported: 2
• Display Resolution: Up to 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file


Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• Pan: Motorized ±25°
• Tilt: Motorized ±15°
• Zoom: 15X HD zoom (5X optical and 3X digital)
• Diagonal Field of View: 90°
• Horizontal Field of View: 82.1°
• Vertical Field of View: 52.2°
• Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical


Speakers

• Drivers: 2x 70 mm / 2.7 in
• Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
• Rated Power: 8W
• THD: 1kHz < 2% at 1W
• Speaker Sampling Rate: 48 kHz
• Impedance: 4 Ohms


Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48KHz
• Pickup Range: Up to 23 ft (7m)
• Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm
• Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms


RightSense™ Technologies

• RightLight: Renders natural skin tones for each participant
• RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
• Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences


Interfaces

• HDMI Out: 2 (up to 1080p)
• HDMI In: 1
• USB: 3x Type A, 1x Type C
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally, Mic Pod Hub, and Rally Mic Pod Extension Cable)
• Remote Control: Bluetooth® Low Energy


Power & Cables

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
• DC Cable: 5 ft (1.5 m)
• AC Cable: 3.28 ft (1 m)
• HDMI 1.4 Cable: 6.5 ft (2 m)
• USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)


Environmental

• Operating Temperature: 0 to 40°C
• Storage Temperature: -40 to 70 °C
• Humidity: 10 to 95%
• BTU/hr: 57 idle, 64 in meeting


Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP

Compatibility

• Internet Connection: Wired or wireless
• USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
• Appliance Mode: Room solution software license (not included)

In the Box

• Rally Bar
• Power supply
• AC power cord
• HDMI cable
• USB cable
• Remote control
• Lens caps for main camera and AI Viewfinder
• User documentation
