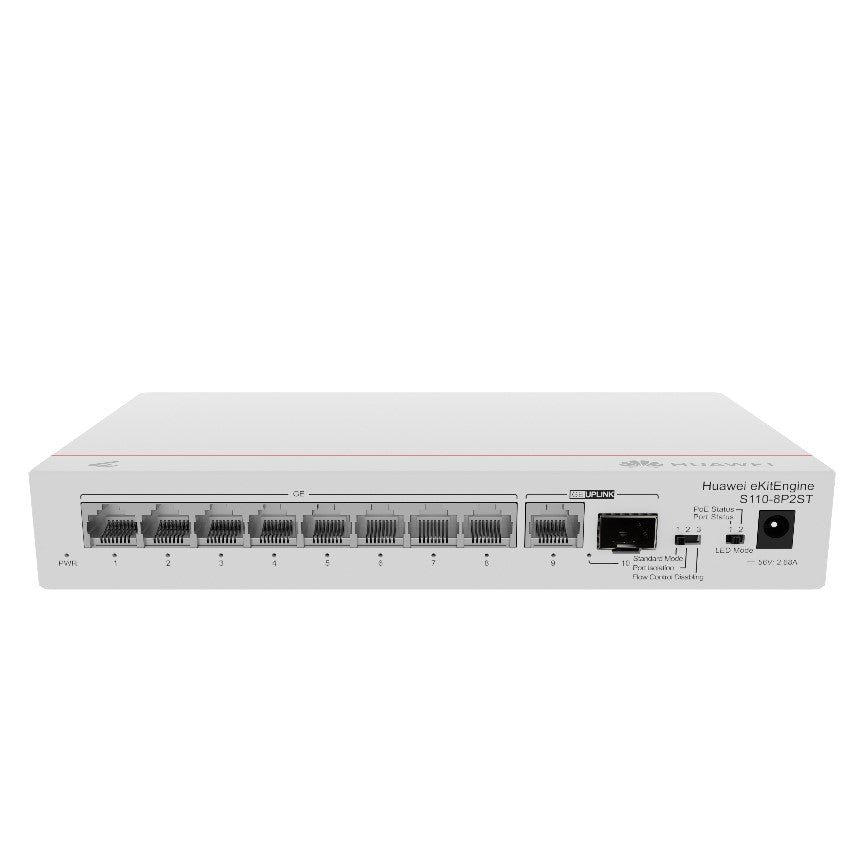

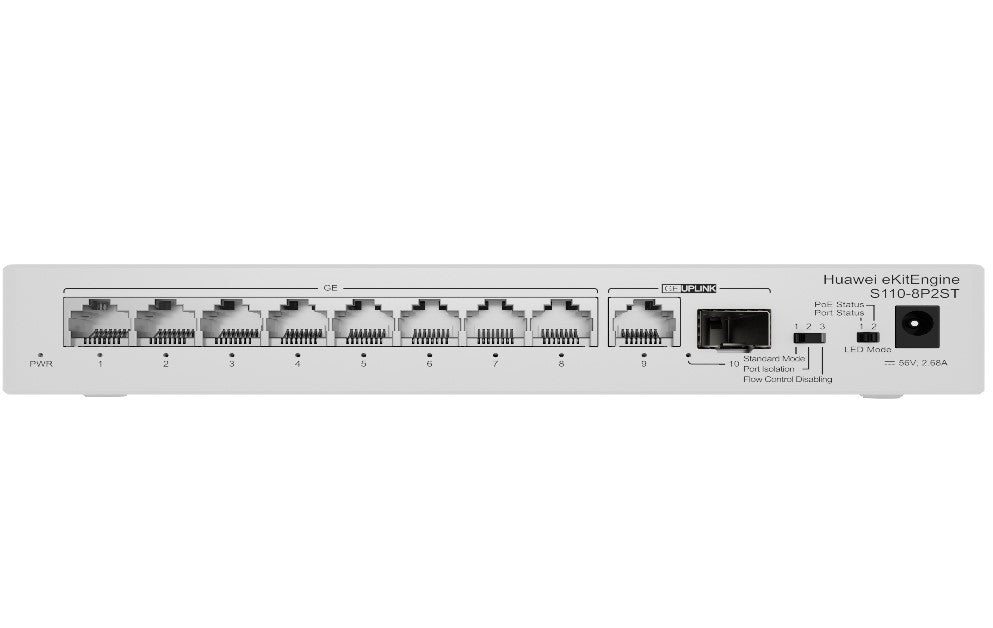

HUAWEI eKitEngine 8 x 10/100/1000BASE-T ports, PoE+, 1 x GE SFP port, 1 x 10/100/1000 BASE-T port Unmanaged Switch S110-8P2ST

The S100 series fixed Ethernet switches integrate the access and transmission functions to provide reliable access/aggregation and high-quality transmission of services on enterprise networks. The switches are built on an integrated hardware platform, and the hardware system consists of the chassis, power module, fan module, and Switch Control Unit (SCU).

Technical specs

• Dimensions without packaging (H x W x D):  35 mm x 210.0 mm x 130.0 mm
• Chassis height [U]: 0.8
• Chassis material: PC+ABS
• Weight without packaging: 1.11 kg
• Typical power consumption [W]: 11
• Typical heat dissipation [BTU/hour]: 37.53
• Maximum power consumption [W]: Without PoE: 11 W
• Maximum power consumption with full PoE load: 155 W (PoE: 124 W)
• Maximum heat dissipation [BTU/hour]: Without PoE: 37.53, Full PoE load: 528.88
• Uplink ports: 1 x GE SFP port and 1 x 10/100/1000BASE-T port
• Downlink ports: 8 x 10/100/1000BASE-T ports (124 W PoE+)
• Working mode: Standard mode, Port isolation, Flow control disabling
• MAC address entry: 2K
• Power supply mode: Power adapter
• Rated power adapter input voltage: 100–240 V AC; 50/60 Hz
• Power adapter output voltage: 56 V DC
• Fans: None
