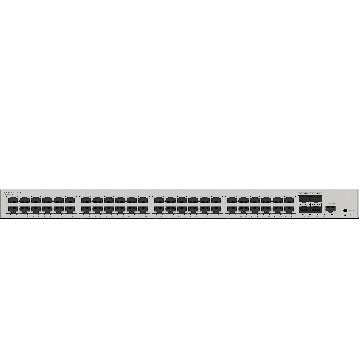

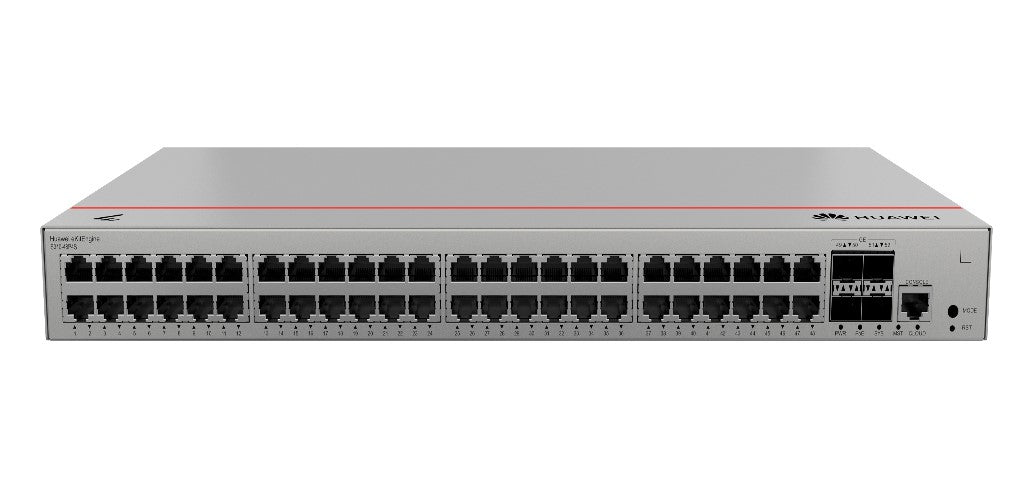

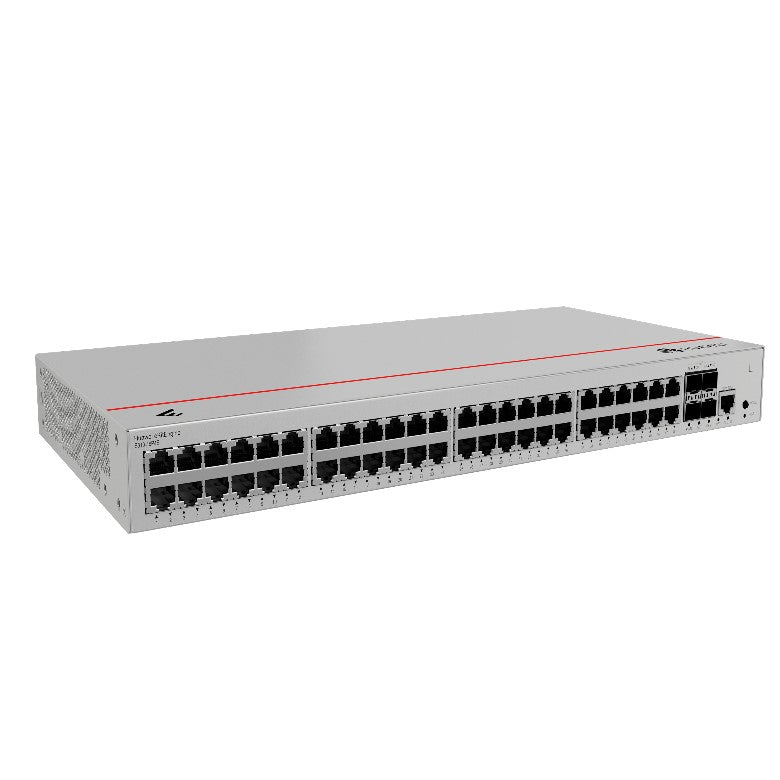

HUAWEI eKitEngine 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports, PoE+, 2-Layer Managed Switch S310-48P4S

These switches are new-generation Layer 2 access switches developed by Huawei. They can be used in various application scenarios, such as campus network access and aggregation.

Technical specs

• Dimensions without packaging (H x W x D):  43.6 x 220 x 442 mm
• Chassis height [U]: 1
• Chassis material: Metal
• Weight without packaging: 3.2 kg
• Typical power consumption [W]: 48.64
• Typical heat dissipation [BTU/hour]: 165.96
• Maximum power consumption [W]: Without PoE: 63.7 W
• Maximum power consumption with full PoE load: 462.80 W (PoE: 380 W)
• Maximum heat dissipation [BTU/hour]: Without PoE: 217.34, Full PoE load: 1579.12
• Uplink ports: 4 x GE SFP ports

• Downlink ports: 48 x 10/100/1000BASE-T ports (380 W, PoE+)

• Console port: RJ45
• Power supply mode: AC built-in
• Rated input voltage: 100–240 V AC; 50/60 Hz
• Maximum input current: 6 A
• Memory: 2 GB
• Fan modules: Built-in

• Ingress protection level (dustproof/waterproof): IP20
