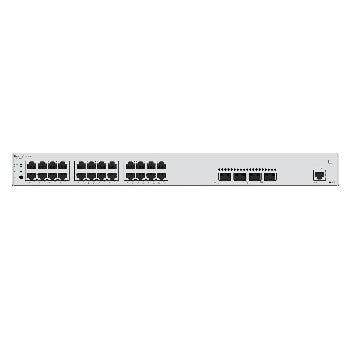

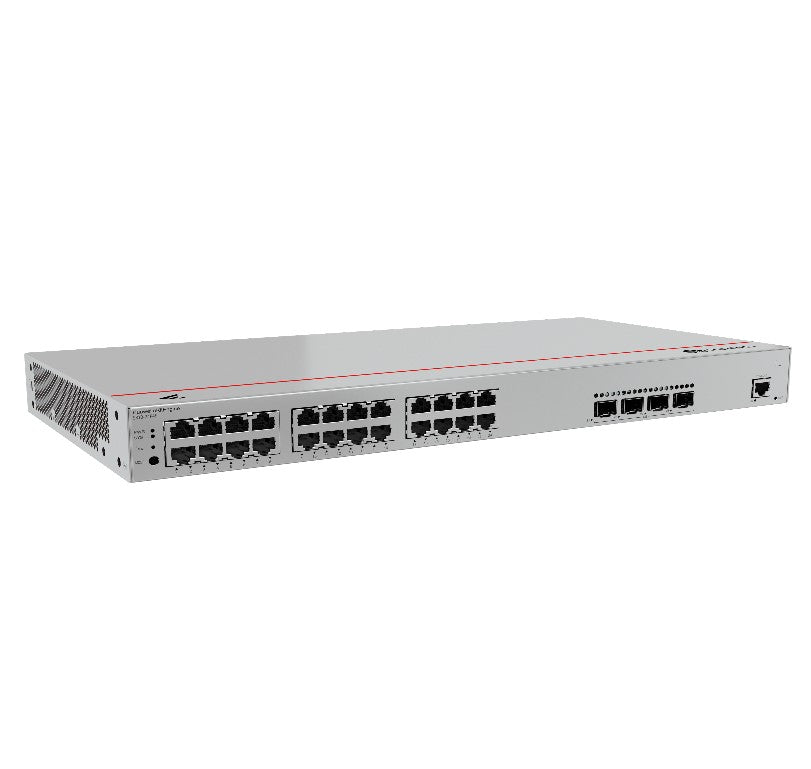

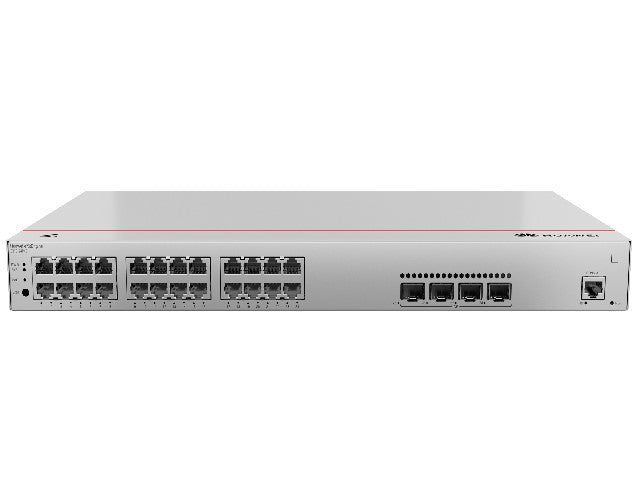

HUAWEI eKitEngine 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports, PoE+, 2-Layer Managed Switch S310-24P4S

These switches are new-generation Layer 2 access switches developed by Huawei. They can be used in various application scenarios, such as campus network access and aggregation.

Technical specs

• Dimensions without packaging (H x W x D):  43.6 mm x 442.0 mm x 220.0 mm
• Chassis height [U]: 1
• Chassis material: Metal
• Weight without packaging: 2.9 kg
• Typical power consumption [W]: 40.7
• Typical heat dissipation [BTU/hour]: 136.72
• Maximum power consumption [W]: Without PoE: 47.1 W
• Maximum power consumption with full PoE load: 491.66 W (PoE: 400 W)
• Maximum heat dissipation [BTU/hour]: Without PoE: 160.71, Full PoE load: 1677.59
• Uplink ports: 4 x GE SFP ports

• Downlink ports: 24 x 10/100/1000BASE-T ports (400 W, PoE+)

• Console port: RJ45
• Power supply mode: AC built-in
• Rated input voltage: 100–240 V AC; 50/60 Hz
• Maximum input current: 6 A
• Memory: 2 GB
• Fan modules: 2 built-in

• Ingress protection level (dustproof/waterproof): IP20
