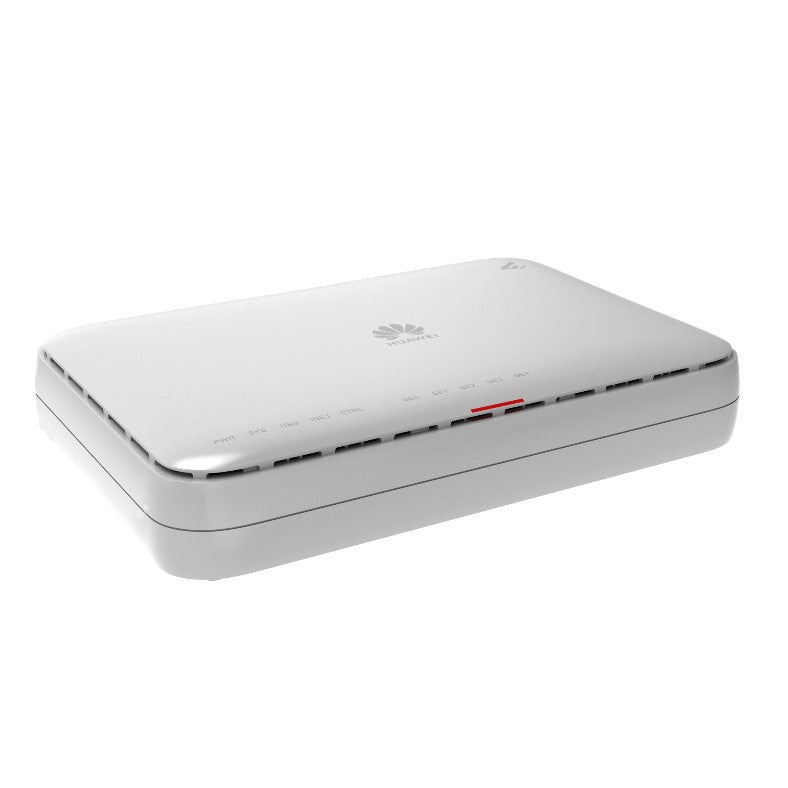

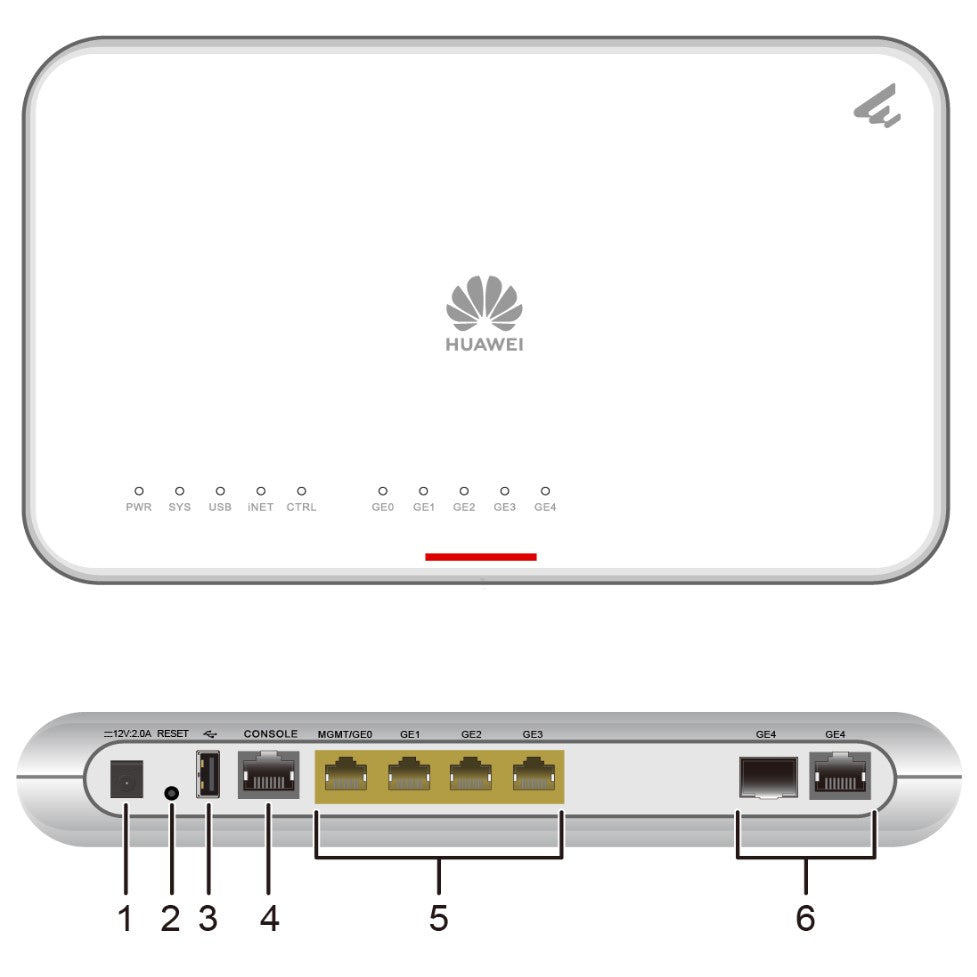

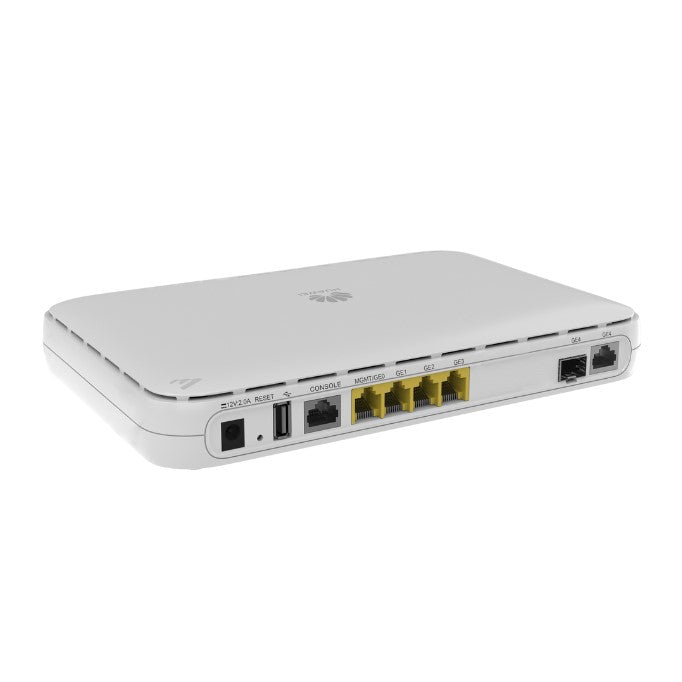

HUAWEI AR303, 1xGE COMBO WAN, 4xGE LAN, 1xUSB 2.0 Desktop Router, AR303

Specifications

• Installation type: Workbench, against the wall
• Dimensions: Height [mm] 38.0 mm, Depth [mm] 161.5 mm, Wide [mm] 240.0 mm
• Chassis height [U]: 1
• Weight with packaging [kg]: 1.18 kg
• Weight without packaging [kg]: 0.58 kg
• CPU: 1.1 GHz, 2 Cores
• Memory: 1 GB
• NAND Flash: 1 GB
• Console port: RJ45
• RTC: Supported
• LAN ports: 4 x GE electrical interfaces
• WAN ports: 1 x GE Combo WAN
• IP rating: IP20
• Maximum power consumption [W]: 12
• Power supply mode: AC power adapter
• Input voltage range [V]: 90 V to 270 V, 45 Hz to 65 Hz
• Rated input voltage [V]: 110 V to 220 V, 50 Hz/60 Hz
• Maximum input current [A]: 0.8 A
• Maximum output power: 24 W
• Fans: None
• Heat dissipation mode: Natural heat dissipation
• Long-term operating temperature [°C]: 0°C to 40°C
• Environmental standards compliance: RoHS, REACH, WEEE
• Safety regulation certification: IEC/EN/UL 60950-1, IGB 4943.1
