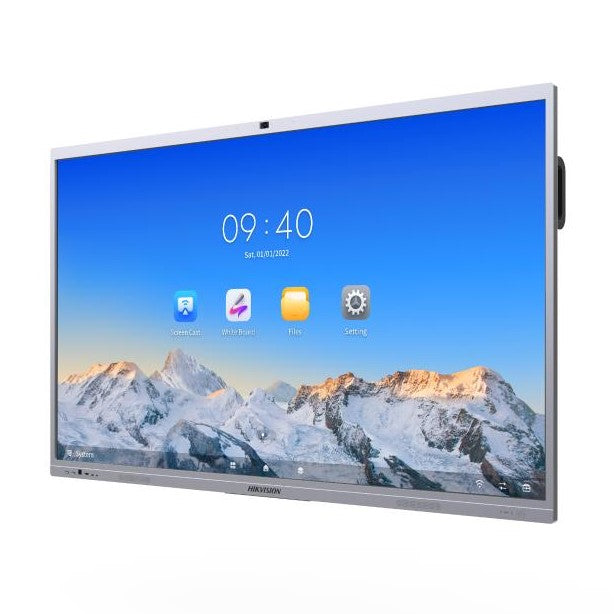

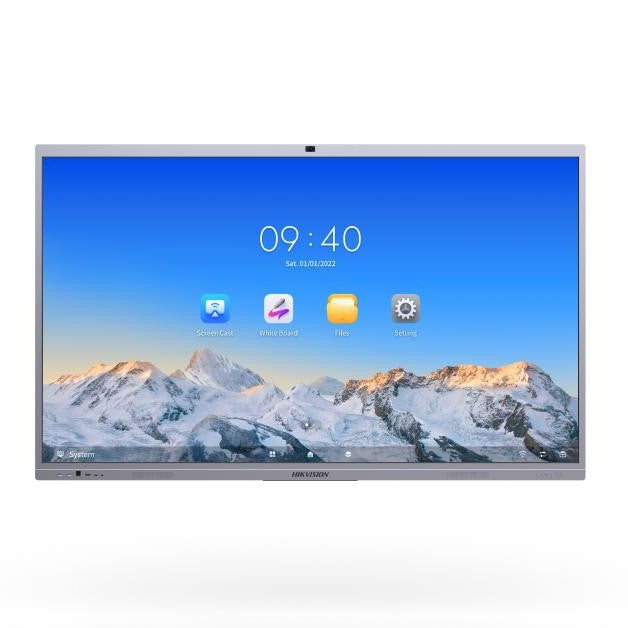

HIKVISION Interactive 86 Inch 4K Touchscreen Display With 8MP Camera DS-D5C86RB/B

Take your presentations and meetings to the next level with the HIKVISION Interactive 85 Inch 4K Touchscreen Display! Experience crystal-clear visuals and seamless touch control for a truly immersive experience. With an 8MP camera, you can also capture and share every detail with ease. Elevate your business with this revolutionary display.

Features

• UHD 4K display with resolution of 3840 × 2160

• Anti-glare and anti-blocking design to ensure smooth interaction

• Built-in 8MP camera with Microphone
• Quick response, at most 50-points touch control and smooth writing experience
• Built-in network switch chip saves a network switch
• All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection
• Android 13 OS
• Optional OPS Module: WIN11 ENT, Intel® Core, i5-12450H, 12th Gen, 8GB storage, 256Gb RAM
• Pre-installed Google Suite
• Optional purchase with or without stand
• EDLA Certified

SPECS

Display

• Screen Size: 86 inch
• Backlight: DLED
• Resolution: 3840 × 2160 @60 Hz
• Brightness: 400 cd/m²
• Color Depth: 10 bit
• Response Time: 5 ms
• Contrast Ratio: 5000:1 (Static), 30,000:1 (Dynamic)
• Refresh Rate: 60 Hz
• Viewing Angle: 178° (H)/178° (V)
• Aspect Ratio: 16:9
• Surface Glass: Anti-Glare Glass
• Display Area: 1895.04mm x 1065.96mm
• Working Duration: 7 × 16 H
• Lifespan: 50,000 hours

Touch

• Type: Infrared Touch Screen
• Touch Point: Up to 50-point multi-touch
• Touch Response Time: ≤ 2 ms
• Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
• Touch Precision: ± 0.5 mm (≥ 90% touching area)
• Touch Resolution: 32767 × 32767

Built-in System

• Operation System: Android 13.0
• Built-in software: Google Suite
• Memory: 8 GB
• Built-in Storage: 128 GB
• Processor: Quad-core Cortex-A76 × 4（2.4 GHz), and quad-core Cortex-A55 × 4 (1.8 GHz）
• GPU: Mali-G610 MC4
• HDCP Version: 2.3

Camera

• Pixel: Pixel 8 MP
• Camera Functions: Support intelligent switching between Android system, OPS, and PC
• Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
• Camera Resolution Ratio: Up to 4K

Microphone

• Specification: Omni-directional 8-array layout
• Mic Function: Echo reduction and smart noise-cancellation
• Voice Distance: 12 m
• Sampling Rate: 32 K
• Mic Depth: 16 bit

Internal Function

• Loudspeaker: Built-in 2 × 20 W+25W loudspeaker
• Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
• NFC: Support screen mirroring by Android phones
• Light Sensor: Yes
• Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging, support shadow correction
• Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection

Interface

• Video & Audio Input: HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
• Video & Audio Output: HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
• Control Interface: TOUCH-USB 3.0 × 3, RS232 × 1
• Network Interface 1: LAN (1000 Mbps) × 2
• Network Interface 2: WIFI AP & Station, 2.4G/5G: WIFI 6, IEEE 802.11 a/b/g/n/ac/ax  2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
• Data Transmission Interface: USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)

Power

• Power Supply: 100 to 240 VAC, 50/60 Hz
• Standby Consumption: ≤ 0.5 W
• Average Consumption: < 205W

Working Environment

• Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
• Working Humidity: 10%~90% RH

General

• VESA: 800 mm × 600 mm (4 × M8-25 mm）
• Product dimensions: 1960.5 mm × 1158.2 mm × 82.5 mm
• Accessories: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , Bluetooth remote control.
• Net Weight: 64.13 kg
• Gross Weight: 81.60 kg

Optional Purchase ( See pricing options including these on the " Buying Options" tab

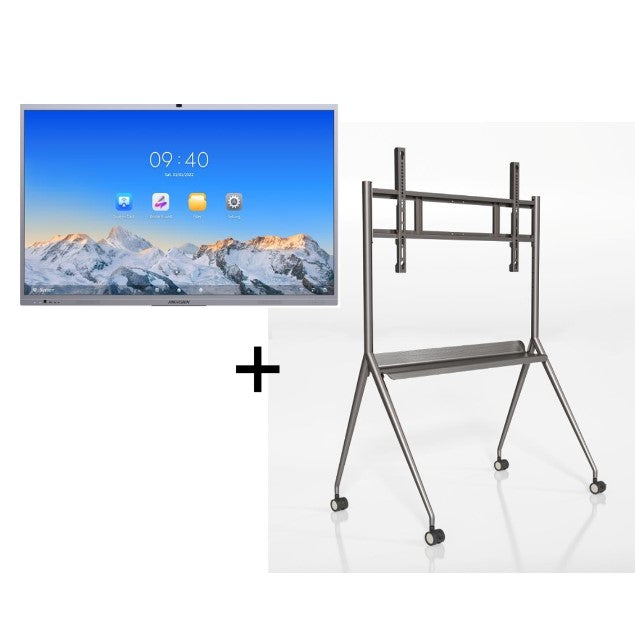

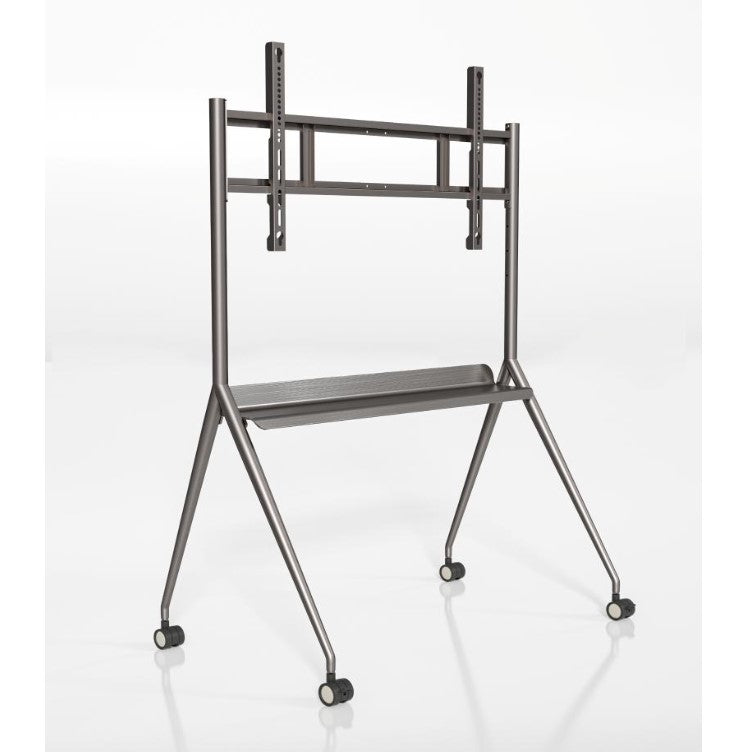

• Mobile cart stand: Model DS-D5ABKY2 Mobile Cart stand is designed to work with all HIKVISION Interactive displays. The trolley is easy to assemble and provides a perfect mounting solution for classroom and board room environments. Dimensions: 1500 × 750 × 140 mm
• OPS Module: Open Pluggable Specification (OPS) is a computing module plug-in format available for adding computing capability to this flat panel display. Specifications: WIN11 ENT, Intel® Core, i5-12450H, 12th Gen, 8GB storage, 256Gb RAM
