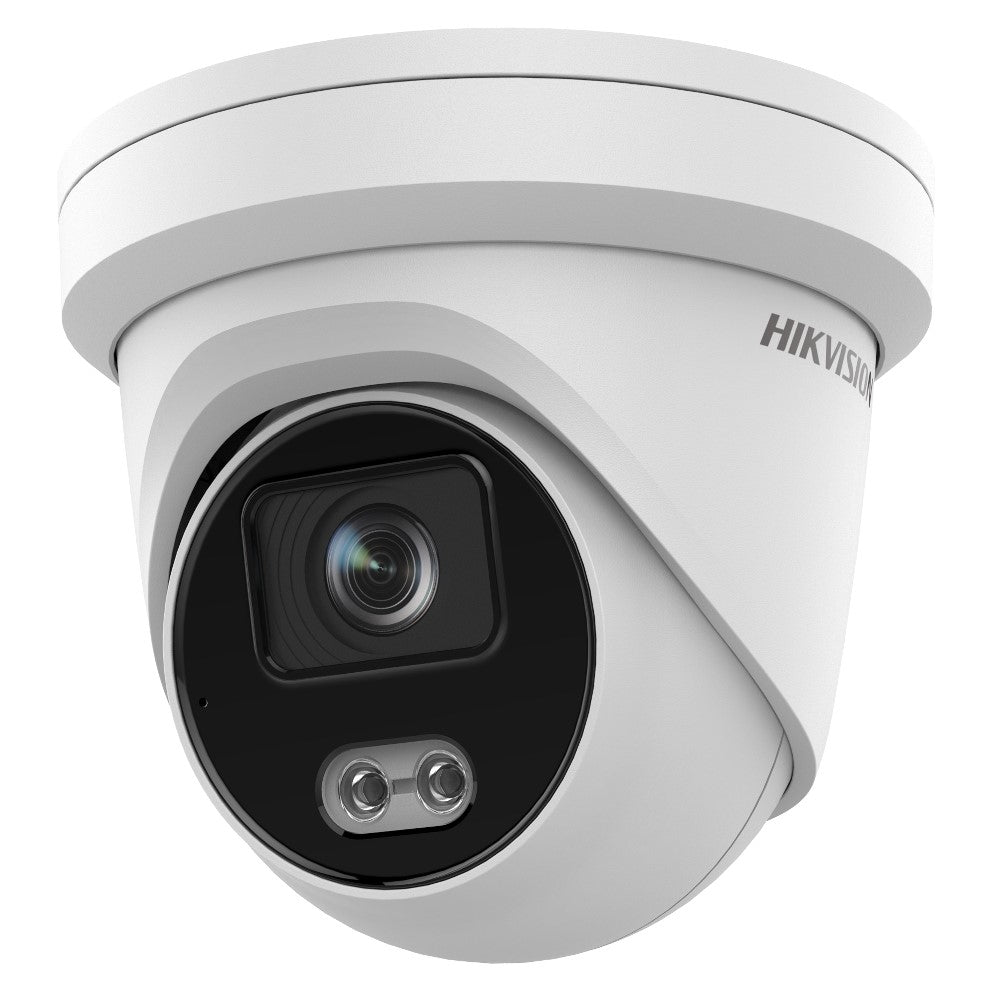

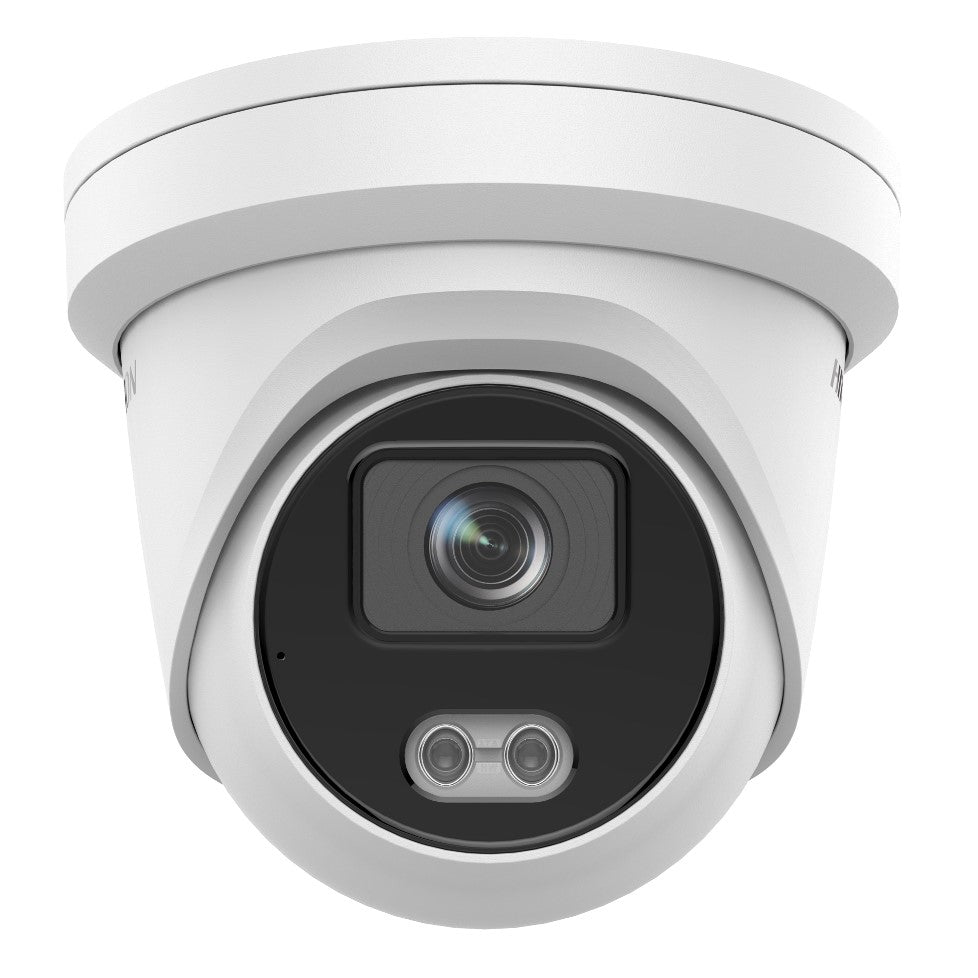

HIKVISION ColorVu 2 MP, 2.8mm, Smart Strobe Light, Fixed Turret IP Network Security Camera 2CD3327G2E-LIUF

Quick features

• 24/7 Colorful imaging
• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Supports 12 VDC power output for pickup
• Audio and alarm interfaces available
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Focal Length & FOV: 2.8mm, horizontal FOV 109°, vertical FOV 55°, diagonal FOV 138°
• Lens Mount: M16
• Aperture: F1.0

DORI

• DORI: 2.8 mm, D: 47 m, O: 18 m, R: 9 m, I: 4 m

Illuminator

• Supplement Light Type: Warm white Strobe LED
• White Light Range: Up to 40 m
• Smart Supplement Light: Yes

Video

• Max. Resolution: 1920 × 1080
• Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: BaseLine Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 5 fixed region for main stream and sub stream

Audio

• Audio Bit Rate: 64 Kbps
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, SFTP, ISUP, ARP
• Simultaneous Live View: Up to 6 channels
• Smooth streaming: Yes
• API: ONVIF, ISAPI, SDK
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for Open Network Video Interface, memory card encryption, SFTP encryption, SRTP encryption
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE10, IE11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: BLC,HLC,3D DNR, EIS, Defog
• Image Parameters Switch: Yes

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Built-In Microphone: Yes
• Hardware Reset: Yes
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)

Event/ Deep Learning

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection, video quality diagnosis
• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Linkage: Upload to NAS/ memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning, Upload to NAS/ memory card, notify surveillance center, trigger record, trigger capture, FTP, Email
• General functions: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

General

• Camera Dimension: Ø138.3 mm × 125.2 mm
• Camera Weight: Approx. 800 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Web Client Language: English, Ukrainian
• Power: 12 VDC ± 25%, 0.55 A, max. 5.4 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.6 W

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Protection: Ingression protection - IP67 (IEC 60529-2013)
