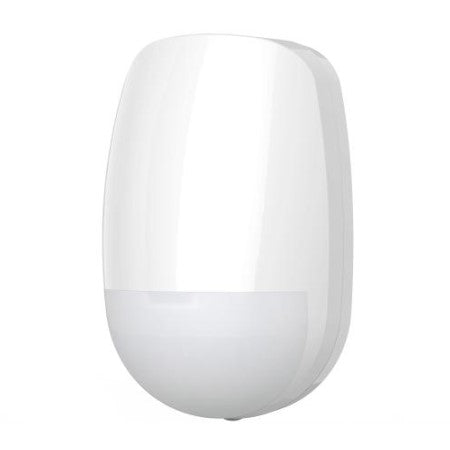

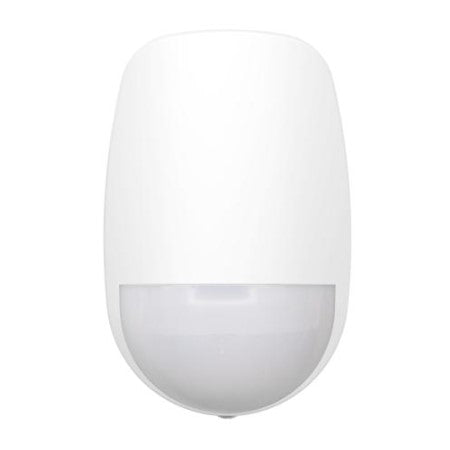

HIKVISION AX-PRO Wireless PIR Passive Infrared Sensor DS-PDP15P-EG2-WE

Upgrade your home security with the HIKVISION AX-PRO Wireless PIR Passive Infrared Sensor. This state-of-the-art sensor uses passive infrared technology to detect movement, alerting you to potential threats. Enjoy peace of mind knowing your home is protected by the latest in security technology.

Features

• Detection Range: 15m/85.9°
• Up to 30 kg pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through APP
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Specs

Detection Performance

• Detection Method: Passive Infrared
• Detection Range: 15m
• Detection Angle: 85.9°
• Detection Zones: 52
• Detectable Speed: 0.3～2m/s
• Sensitivity: High, Auto, Pet
• Pet Immunity: 30Kg
• White Light Filter: 6500 lux
• Digital Temperature Compensation: Supports
• Creep Zone Protection: Supports

Features

• Digital Processing: Supports
• Sealed Optics: Supports
• Tamper Protection: Front, Rear
• Environment Temperature Indicator: Supports
• Signal Strength Indicator: Supports

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 868MHz
• Transmission Security: AES-128 Encryption
• Transmission Range(Free Space): 1.6Km
• Frequency Hopping: Supports
• Enrolling Method: Power up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR123A × 1
• Typical Voltage: 3V

General

• Operation Temperature: -10°C to 55°C (14 °F to 131 °F)
• Operation Humidity: 10% to 90%
• Dimensions(WxHxD): 65.5 mm × 103 mm × 48.5 mm
• Weight: 128 g
• Mounting Height: 1.8 m to 2.4 m
• Mounting Method: Wall
• Application Scenario: Indoor
