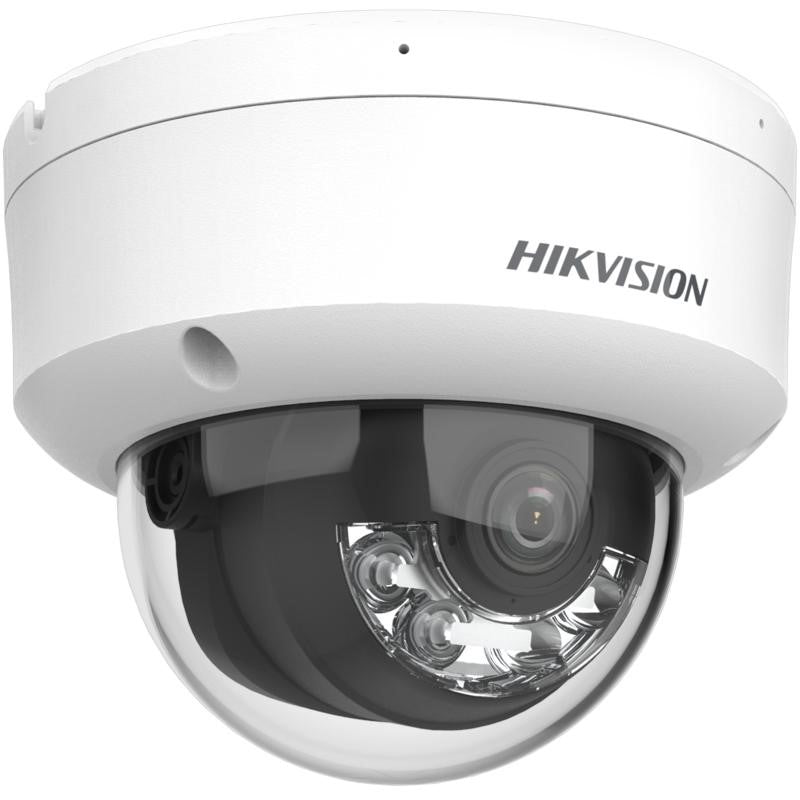

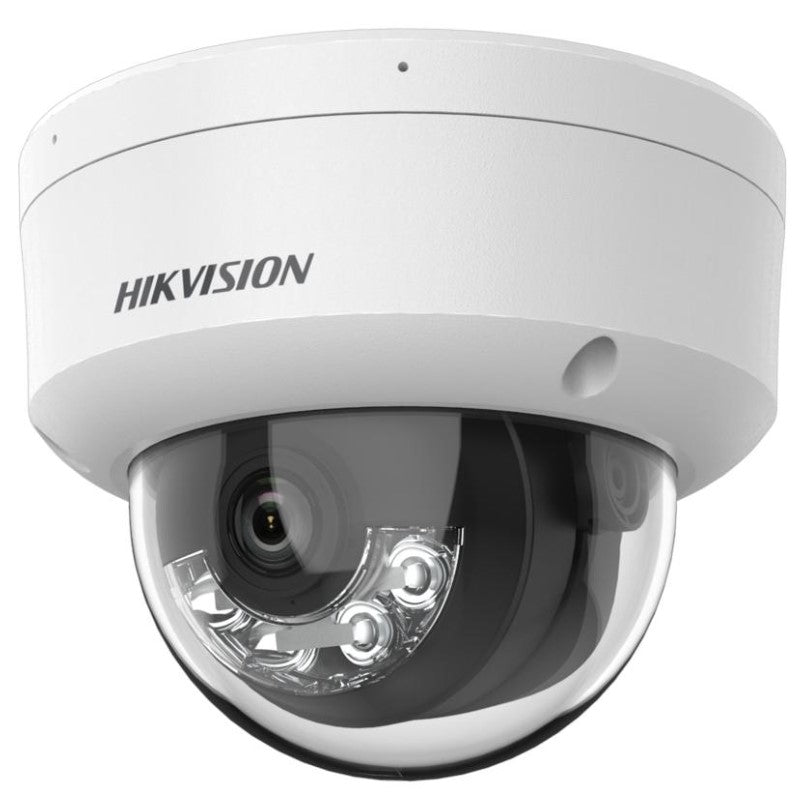

HIKVISION 4 MP, Fixed Dome, 2.8mm, Smart Hybrid Light, IP Network Security Camera 2CD3141G2-LIUF

Quick features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Support Human and Vehicle Detection
• Smart Hybrid Light with long range
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal resistant (IK08)

Specifications

Camera

• Image Sensor: 1/2.9" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100, 000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Focal Length & FOV: 2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°
• Lens Mount: M12
• Focus: Fixed
• Aperture: F1.6
• DORI: 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

Illuminator

• Supplement Light Type: IR, white light
• Smart Supplement Light: Yes
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 x 1080, 1280 × 720)
                         60 Hz: 20 fps (2560 × 1440), 30 fps (1920 x 1080, 1280 x 720)
• Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
                       60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
                                    Sub-Stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz

Network

• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI, SDK
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+



• SNR: ≥ 52 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): Digital WDR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Privacy Mask: 4 programmable polygon privacy masks
• Image Enhancement: BLC, HLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-In Microphone: Yes
• On-Board Storage: Yes, Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage: Send email, notify surveillance center, trigger capture

General

• Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, Max 7.5 W
• Dimensions: Ø121.4 mm × 97.7 mm
• Weight: Approx. 550 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language: English, Ukrainian
• General Functions: Heartbeat, anti-banding, mirror, password protection, password reset via email

Protection

• IP67: IEC 60529-2013,IK08: IEC 62262:2002
