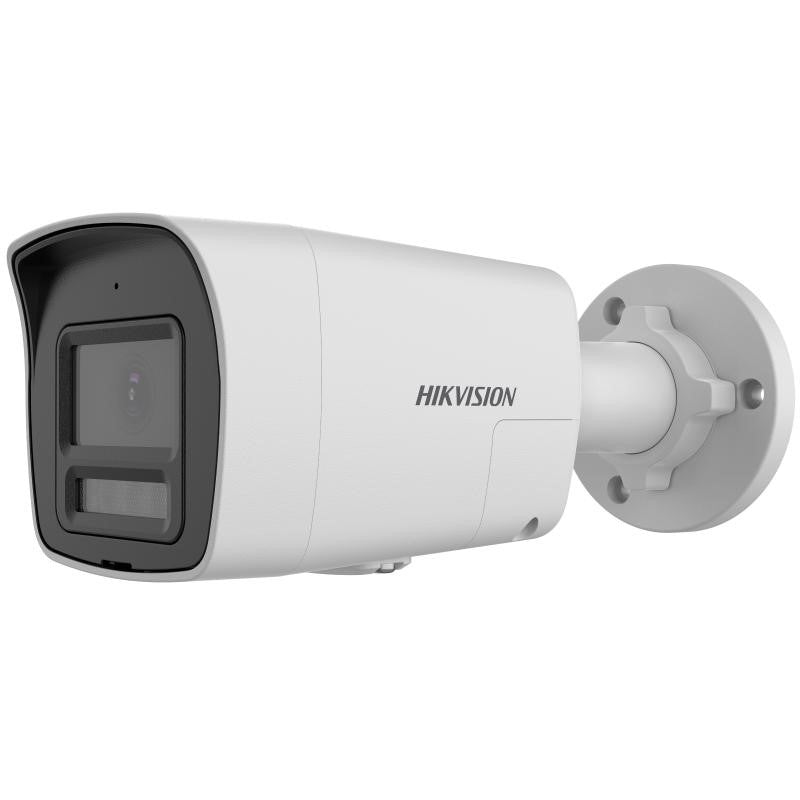

HIKVISION 4 MP ColorVu,4mm, Strobe Light, Fixed Bullet IP Network Security Camera 2CD3047G2E-LIUF

Quick features

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot)
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day and Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens 4 mm
• Focal Length & FOV: 4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 93°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0
• DORI: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: IR, White strobe light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 20 fps (2560 x 1440), 25 fps (1920 × 1080, 1280 × 720), 60 Hz: 20 fps (2560 x 1440), 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360), 60 Hz: 24 fps (1280 x 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 1 fps (640 × 360), 60 Hz: 1 fps (640 × 360)
• Video Compression: Main stream: H.265+/ H.265/ H.264+/ H.264,, Sub-stream: H.265/ H.264/ MJPEG,, Third stream: H.265/ H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Audio Type: Mono
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface, Host authentification ( MAC address)
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE10 +, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Built-In Microphone: Yes
• Reset Key: Yes

Event

• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, target types
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning, flashing light

General

• Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, max. 8.7 W
• Dimensions: 179 mm × 69.1 mm × 67.4 mm
• Weight: Approx.: 450 g
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English
• General Functions: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); LOA (IEC/EN 60950-1)
• Protection: IP67 (IEC 60529-2013)
