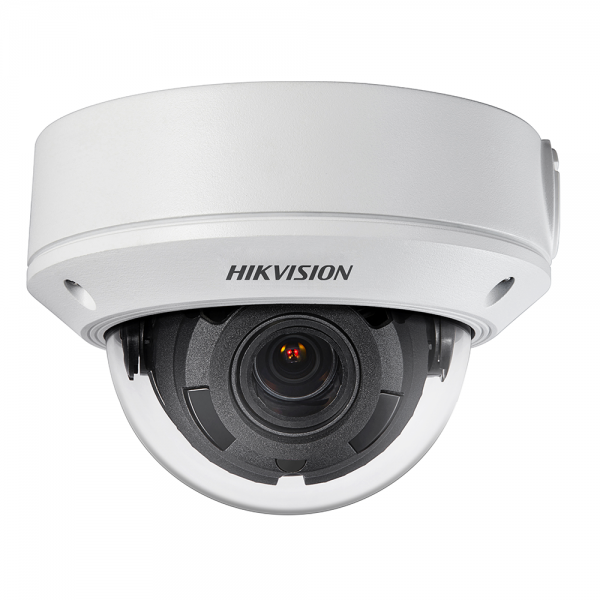

HIKVISION 4 MP, 2.8mm to 12mm Varifocal, IR Network Dome Security Camera 2CD1743G0-IZ

Quick features

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Up to 256 GB memory card slot for storage
• 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
• Water and dust resistant (IP67) and vandal proof (IK10)
• EXIR 2.0: advanced infrared technology with long IR range

Specifications

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Wide Dynamic Range: 120 dB
• Slow Shutter: Yes
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°

Lens

• Lens Type: Varifocal Lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV: 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35°
• Lens Mount: Φ14
• Day & Night: IR cut filter
• Iris Type: Fixed
• Aperture: F1.6

Illuminator

• IR Wavelength: 850 nm
• IR Range: Up to 30 m

Video

• Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720),      60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360), 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream

Network

• Protocols: : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Detections: Motion detection
• Alarms: Video tampering, network disconnected, IP address conflicted, HDD full, HDD error
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+


• Max. Resolution: 1920 × 1080
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Scheduled
• Image Enhancement: BLC, 3D DNR

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
• Reset: Support

Event

• Basic Event: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General

• Power: 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
  PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
• Camera Material: Metal
• Camera Dimensions: Ø141 mm × 99.9 mm
• Package Dimension: 140 mm × 140 mm × 154 mm
• Camera Weight: Approx. 820 g
• Storage Conditions: -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian

• General Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
