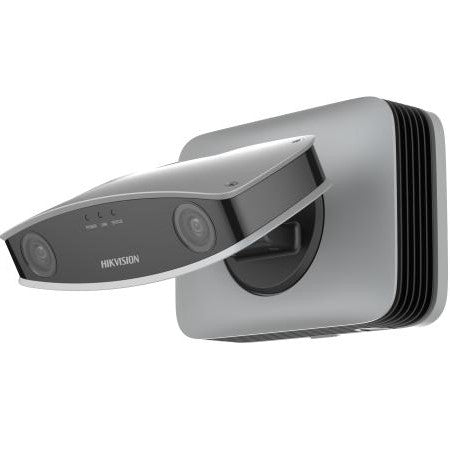

HIKVISION 2 MP DeepinView, 4mm Dual Lens, Face Recognition Indoor Network Security IP Camera IDS-2CD8426G0/F

Quick features

• High quality imaging with 2 MP resolution
• Intelligent functions based on deep learning
• Efficient H.265+ compression technology to save bandwidth and storage


Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS x 2
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.005 Lux @(F1.2, AGC ON), Color: 0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR on
• Shutter Time: 1/25 s to 1/100, 000 s
• Day & Night: IR cut filter
• DNR: 3D DNR
• WDR: 120 dB
• IR Range: Up to 10 m
• 2-Axis Adjustment: Tilt: -45° to 90°, rotate: 0° to 355°

Lens

• Focal Length & FOV: Two identical lenses, 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 103°
• Aperture: F1.6

Decoding

• Audio Compression: G.711/ G.722.1/ G.726/ MP2L2/ PCM
• Audio Bit Rate: 64Kbps (G.711)/ 16Kbps (G.722.1)/ 16Kbps (G.726)/ 32-192Kbps (MP2L2)

Video

• Max. Resolution: 1920 × 1080
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region Of Interest (ROI): 1 fixed region for main stream
• Video Compression: Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264, Fifth stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps

Audio

• Environment Noise Filtering: Max. 48 kHz

Smart Feature-Set

• Exception: Audio exception detection

Network

• Network Storage: Support Micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users
• 3 levels: Administrator, Operator and User
• Web Browser: IE7+, Chrome 18-42, Firefox 5.0+, Safari 5.02+
• General Function: Anti-flicker, five streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter


• Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream: 50Hz: 25fps (3840 × 1080), 60Hz: 30fps (3840 × 1080)
• Day/Night Switch: Auto/Schedule/Triggered by Alarm In
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Enhancement: BLC, HLC, defog, EIS, lens distortion correction, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Interface

• Communication Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
• Audio: 1 audio input (line in), 1 audio output (line out), mono soundtrack
• Alarm: 1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA)
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Behavior Analysis

• Behavior Type: Loitering, and people falling down
• Calibration: Manual, auto and one-touch calibration are supported

Event

• Basic Event: Motion detection, video tampering alarm, exception
• Linkage: Upload to FTP, notify surveillance center, send email

General

• Power: 36 VDC, two-core terminal block, max. 27 W, 0.75A
• Dimensions: 180.4 × 147 × 117.9 mm
• Weight: Approx. 1500 g
• Operating Conditions: -10 °C to 40 °C, Humidity: 95% or less (non-condensing)
