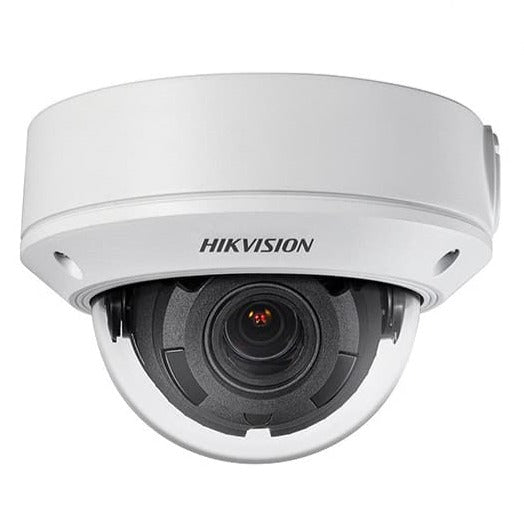

HIKVISION 2 MP, 2.8mm to 12mm Varifocal IR Network Dome Security Camera 2CD1721FWD-I

Quick features

• 1/2.8" progressive scan CMOS
• Up to 2.0 megapixel
• 2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens
• Up to 30 m IR range
• Dual stream
• 120 dB WDR (Wide Dynamic Range)
• 3D DNR (Digital Noise Reduction)
• PoE (Power over Ethernet)
• IP67, IK10
• Mobile monitoring via Hik-Connect or iVMS-4500

Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Focal Length & FOV: 2.8 mm to 12 mm @F1.4, horizontal field of view: 100° to 35°
• Lens Mount: Φ14
• Day & Night: IR cut filter with auto switch
• 3-Axis Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
• DNR (Digital Noise Reduction): 3D DNR
• WDR (Wide Dynamic Range): 120 dB

Video Compression

• Video Compression: Main stream: H.264+/H.264, Sub stream: H.264/MJPEG
• H.264 Type: Baseline profile/Main profile
• Video Bit Rate: 32 Kbps to 8 Mbps

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Network Storage: Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
• Detections: Motion detection
• Alarms: Video tampering, network disconnected, IP address conflicted, HDD full, HDD error
• Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
• General Features: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter


• Max. Resolution: 1920 × 1080
• Main Stream Max. Frame Rate: 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-stream Max. Frame Rate: 50Hz: 25fps @(704 × 576, 640 × 360, 352 × 288, 320 × 240), 60Hz: 30fps @(704 × 480, 640 × 360, 352 × 240, 320 × 240)
• Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
• Day/Night Switch: Support auto, Scheduled
• Image Enhancement: BLC (area configurable), Mirror
• Region of interest: 1 fixed region

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Video Output (Without-Z): 1Vp-p composite output (75Ω/BNC)
• Reset: Support

General

• Operating Conditions: -30 °C to 60°C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply: DC12V ± 25%, PoE (802.3af)
• Power Consumption: Max. 5.5 W/11 W (With -Z)
• Protection Level: IP67, IK10
• IR Range: Up to 30 m
• Dimensions: Φ 141 mm × 99.9 mm
• Weight: 800 g
