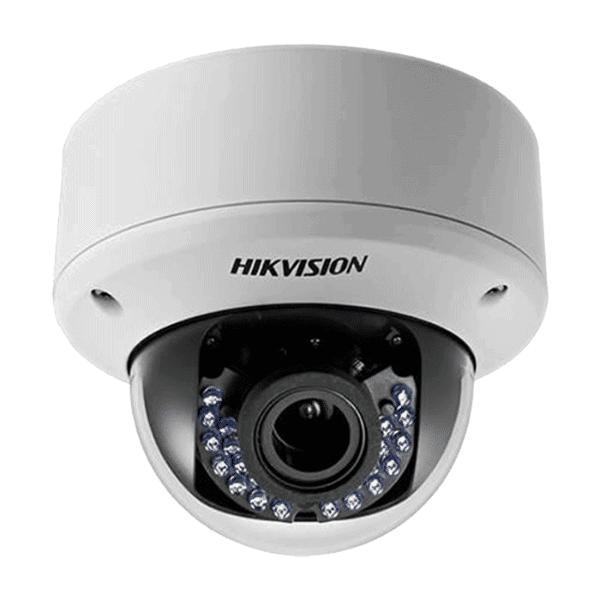

HIKVISION 2 MP, 2.8mm to 12mm, Indoor PoC Analog Varifocal Dome Security Camera 2CE56D0T-VFIR

Quick features

• 2 MP varifocal PoC dome camera
• 2.8 mm to 12 mm varifocal lens
• Up to 30 m IR distance for bright night imaging
• Transmits both HD video and power over the same coaxial cable

Specifications

Camera

• Image Sensor: 2 MP Progressive Scan CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.01 Lux@(F1.2, GC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s
                        NTSC: 1/30 s to 1/50, 000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.8 mm to 12 mm
• Focal Length & FOV: 105.2 ° to 32.8 °
• Lens Mount: Φ14


• Image Settings: Brightness, Sharpness, DNR, Mirror
• Frame Rate: PAL: 1080p@25fps
                     NTSC: 1080p@30fps
• Day/Night Mode: Smart/color/BW(Black and White)
• Wide Dynamic Range (WDR): DWDR
• Image Enhancement: BLC
• AGC: Low/middle/high

Interface

• Video Output: 1 HD analog output

General

• Dimensions: Ø 136 mm × 102 mm
• Weight: 600 g
• Operating Condition: -40 °C to 60 °C (-40 °F to 140°F), humidity 90% or less (non-condensation)
• Language: English
• Power Supply: 12 VDC ± 15%/PoC.af
• Consumption: Max. 4 W
• IR Range: Up to 30 m
