HAFELE Mortise Lock For Hinged Door, Backset 55mm, Forend 20mm With Profile Cylinder 91102151

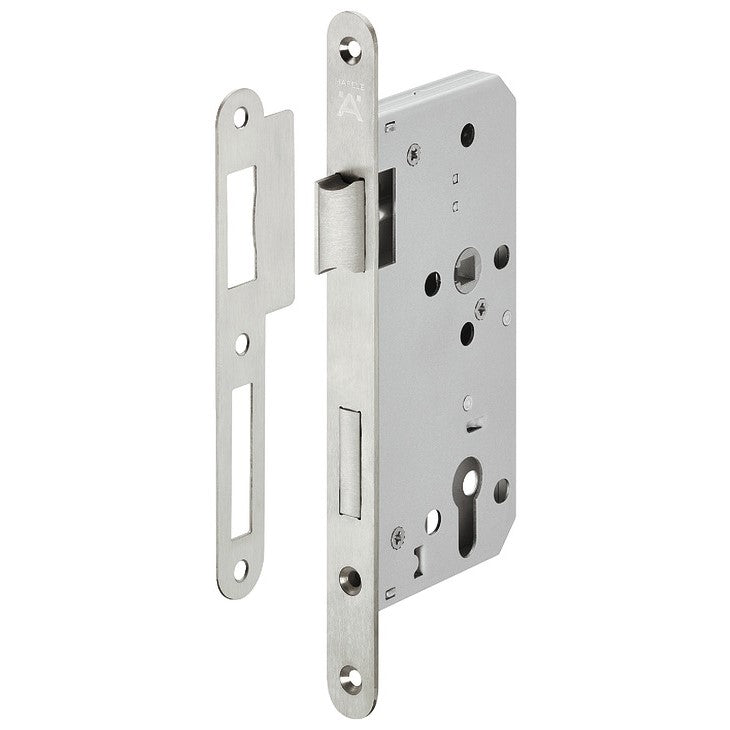

Mortice Lock 91102151

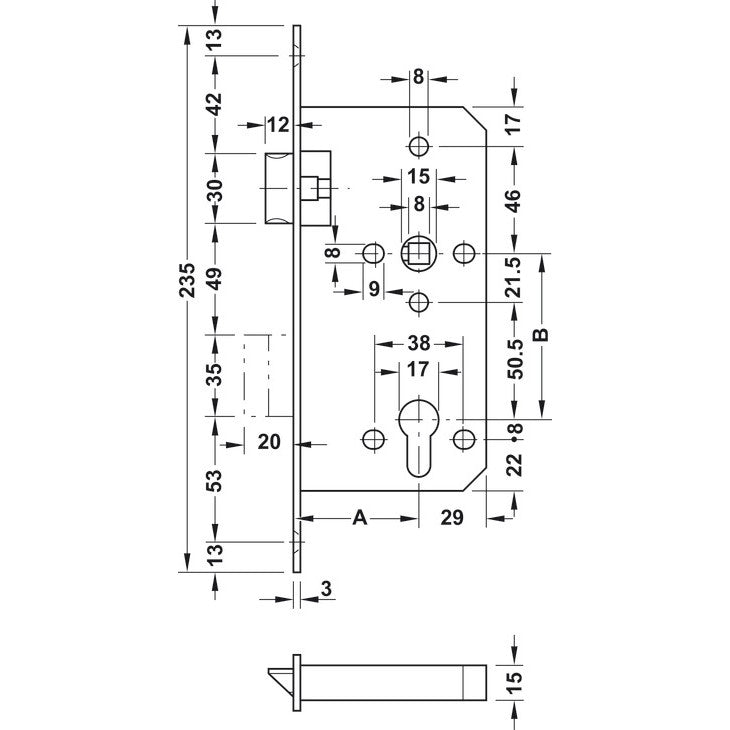

• Backset: 55 mm

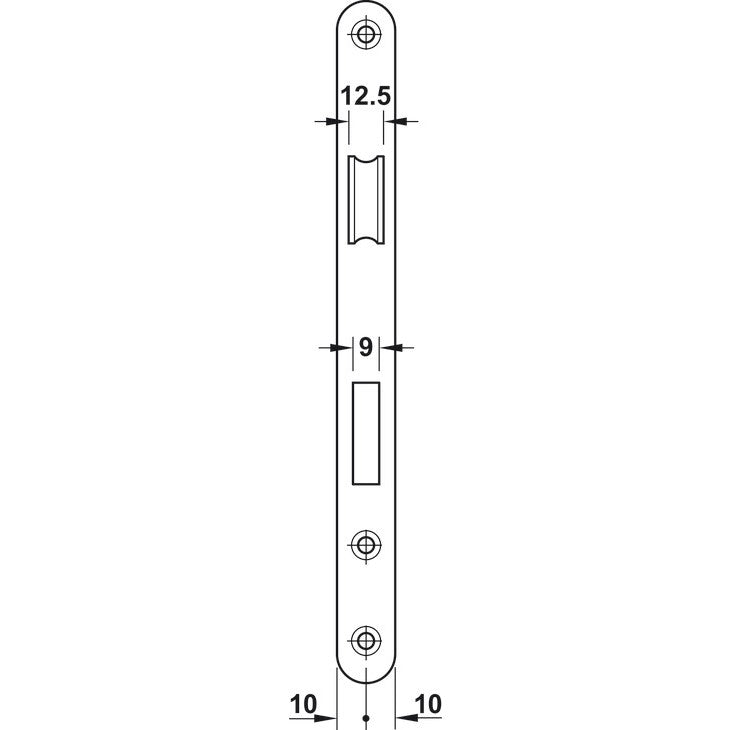

• Forend width and length: 20 mm x 235 mm
• Mounting: DIN left and DIN right, reversible
• Area of application: For hinged door
• Forend material: Stainless steel
• Lock case material: Steel
• Deadbolt pocket material: Plastic
• Type of locking: Prepared for profile cylinder
• Latchbolt: Yes, standard
• Deadbolt throw: 2 turns
• Deadbolt throw dimensions: 20mm
• Lever follower: 8 mm
• Version: With key action
• Forend type: Flat
• Standard: Certified in compliance with EN 12209:2003
• Fire resistant: Yes

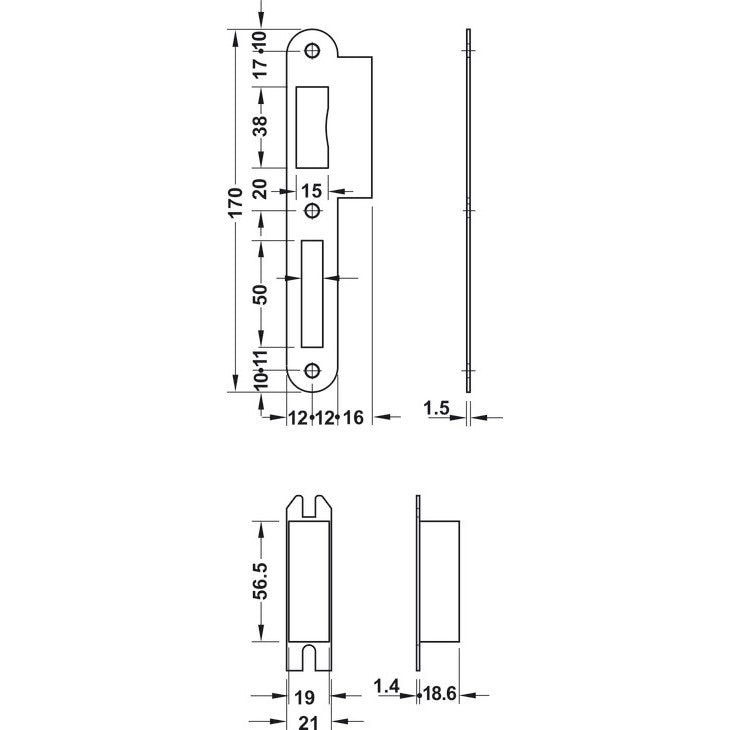

• What's in the box: 1 mortice lock, flanged striking plate, deadbolt pockets

Double Standard Profile Cylinder 91659007

• Keyed to differ with reversible key
• Cylinder housing material: Brass
• Finish: Nickel plated
• Type of locking: Keyed to differ
• Locking system: With 5 pin tumblers
• What's in the box: 1 cylinder (double, single or thumbturn cylinder), 3 keys, nickel plated steel, 1 fixing screw

PC escutcheon

• Area of application: For covering profile cylinder hole on wooden doors
• Key hole type: Profile cylinder
• Escutcheon Ø: 53,50 mm
• Backplate thickness: 8,00 mm
• Installation: Screwing
• Supplied with: 1 pair of PC escutcheons, 4 threaded screws M4 x 65 mm, can be shortened, 2 sleeves with internal thread M4 x 17 mm
