- Sku: hafele-31190021
- Type: Cabinet hinge and mounting plate

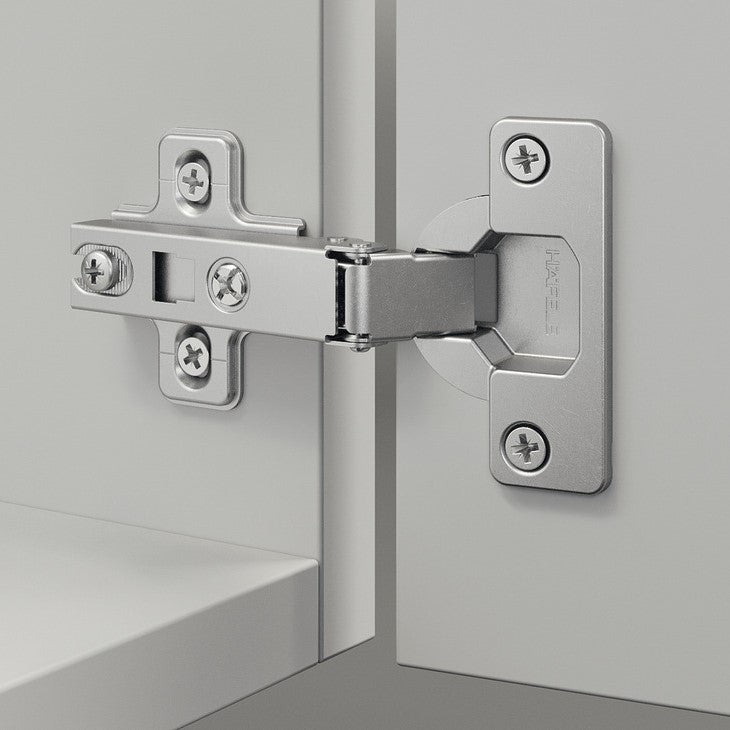

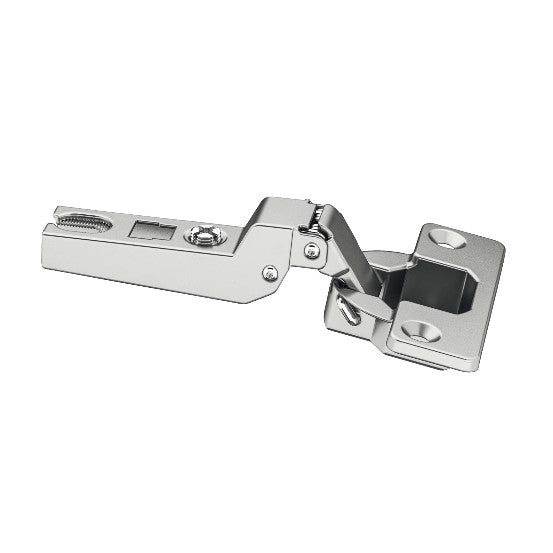

HAFELE Half Overlay Metalla Concealed Hinge With 2mm Cross Mounting Plate 31190021
5,600.00 TZS
Tax included.
Shipping calculated at checkout.
In stock!
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
Overlay Hinge
- Closing mechanism: With automatic closing spring
- Cup fixing: For screw fixing
- Hinge arm: Cranked
- Material: Steel cup and hinge arm
- Finish: Nickel plated
- Cup fixing: For screw fixing
- Installation: Door to cabinet with quick fixing system SM
- Drilling depth: Hinge cup 12.0 mm
- Setting option: Side adjustment: ±2 mm, height adjustment: ±2 mm, depth adjustment: -0.5 – 4 mm, height adjustment via mounting plate
- For wooden door thickness: 14-22mm
Mounting Plate 31198012
- Material: Steel, nickel plated matt
- Finish: Nickel plated
- Soft Closing: 2mm
Have a question?
HAFELE Half Overlay Metalla Concealed Hinge With 2mm Cross Mounting Plate 31190021
5,600.00 TZS
