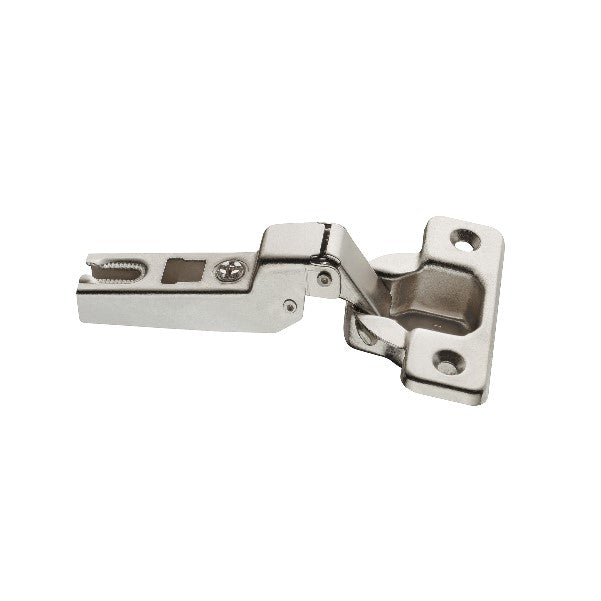

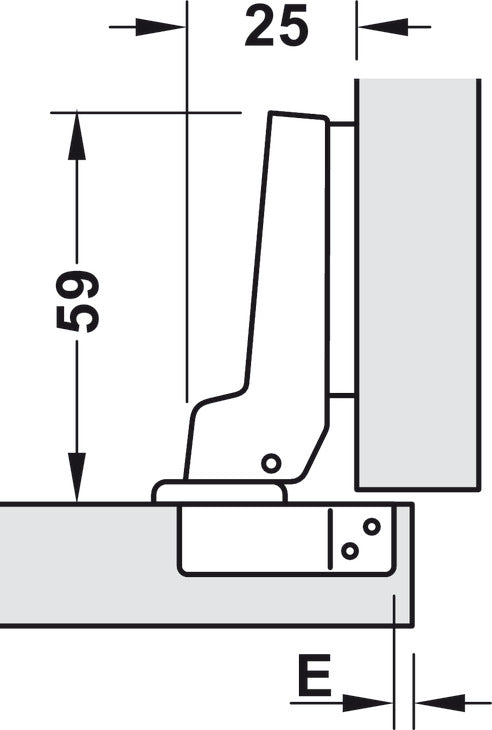

HAFELE Half Overlay Metalla Concealed Hinge With 2 mm Mounting Plate 31190621

Overlay Hinges 31190621

• Drilling pattern: 48/6 mm
• Cup fixing: For screw fixing
• Hinge arm: Cranked
• Opening angle: 110 degrees
• Material: Cup and hinge arm made of steel
• Finish: Nickel plated
• Cup fixing: For screw fixing

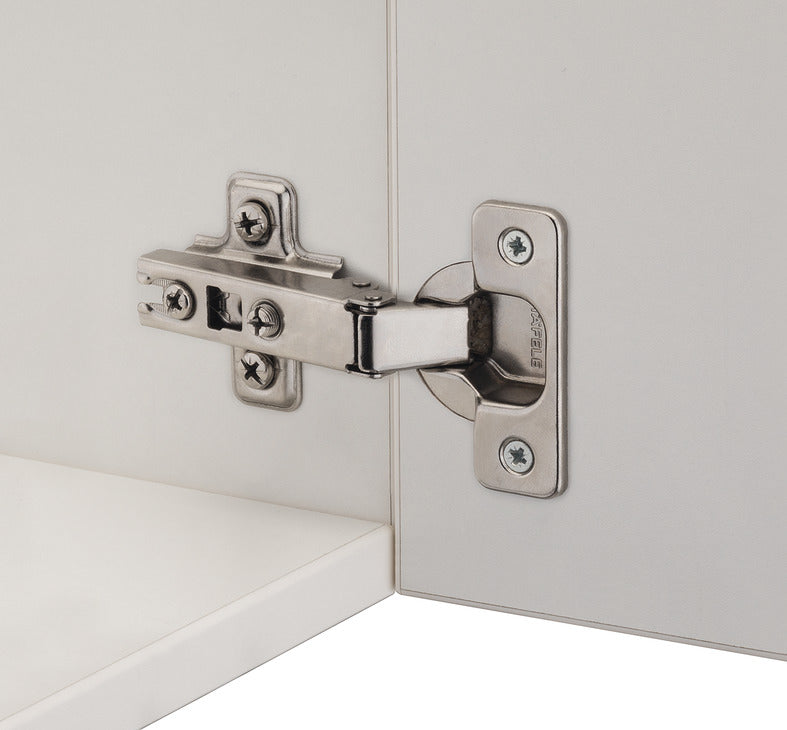

• Installation: Door to cabinet with slide-on system A
• Drilling depth: Hinge cup 12.0 mm
• For wooden door thickness: 14-26m
• Setting option: Side adjustment: ±2.5 mm, height adjustment: ±2 mm, depth adjustment: -1.5 – 4.5 mm, height adjustment via mounting plate

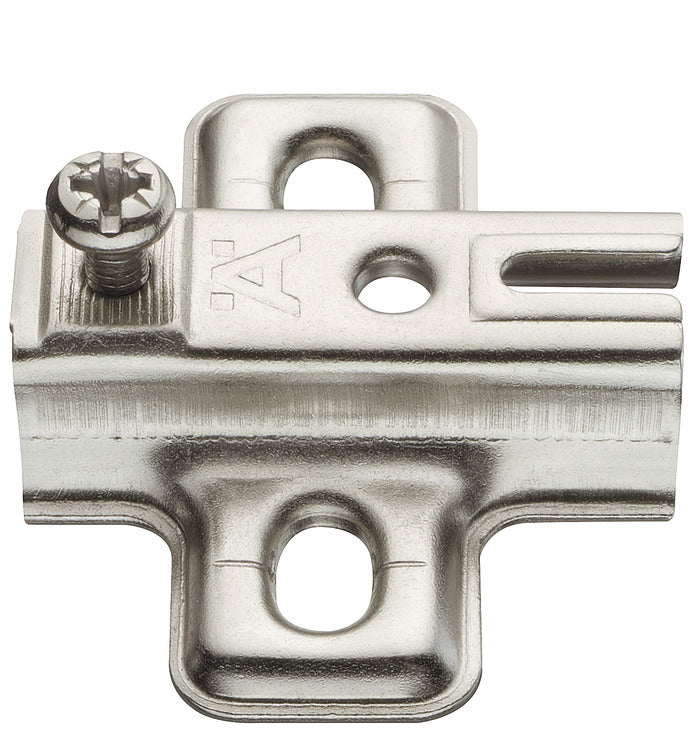

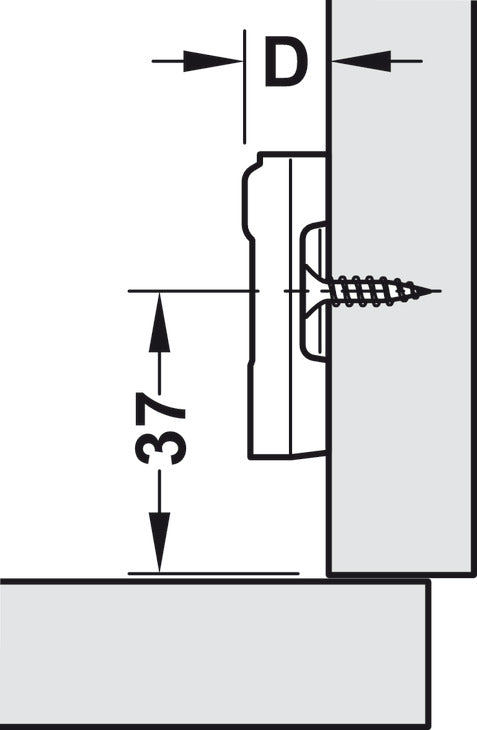

Mounting Plate 31198682

• Material: Steel
• Adjustment facility: Height adjustment ±2 mm via slot
