HAFELE Full Overlay Metalla A Concealed Hinge With 0mm Mounting Plate 31190620

HAFELE Full Overlay Metalla A Concealed Hinge With 0mm Mounting Plate 31190620

This product comes directly from the factory

Regular price 4,800.00 TZS
Regular price Sale price 4,800.00 TZS
Sale Sold out
18% Vat Inclusive. Shipping calculated at checkout.

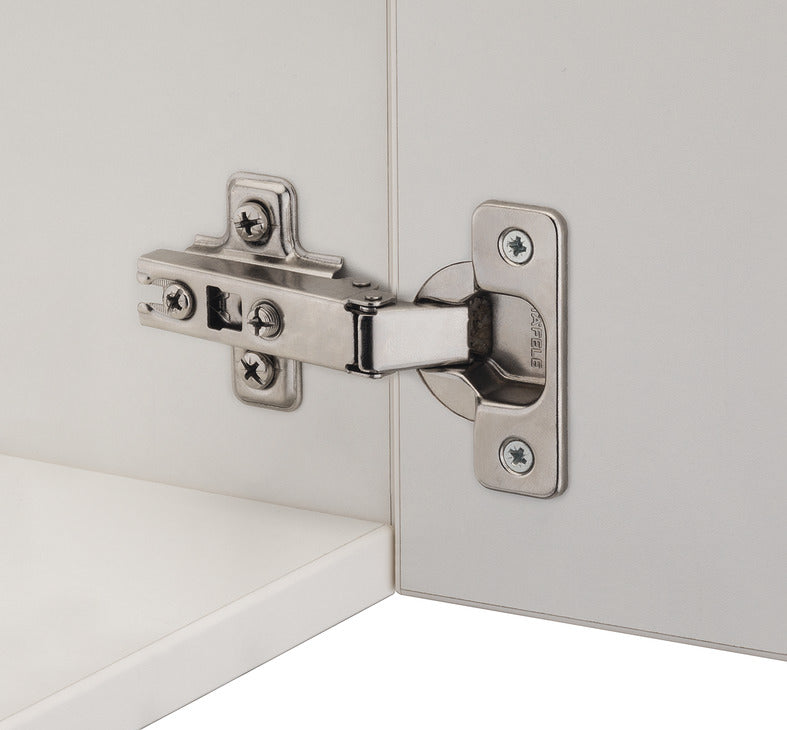

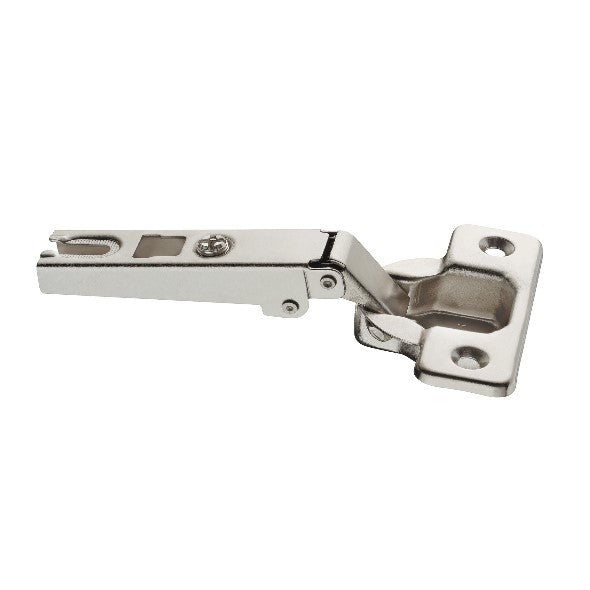

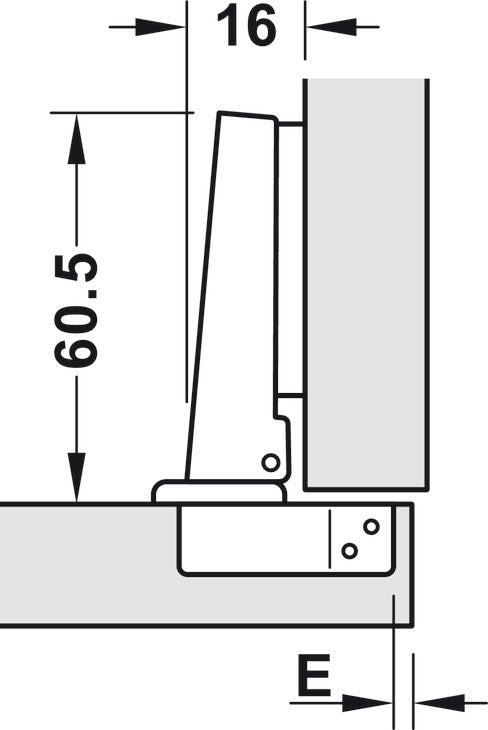

Overlay Hinge 31190620

  • Cup fixing: For screw fixing
  • Drilling pattern: 48/6 mm
  • Hinge arm: Straight
  • Material: Steel cup and hinge arm
  • Finish: Nickel plated
  • Cup fixing: For screw fixing
  • Installation: Door to cabinet with slide-on system A
  • Drilling depth: Hinge cup 12.0 mm
  • Adjustment facility: Side adjustment ±2.5 mm
  • Height adjustment: ±2 mm (via mounting plate): depth adjustment ±2 mm

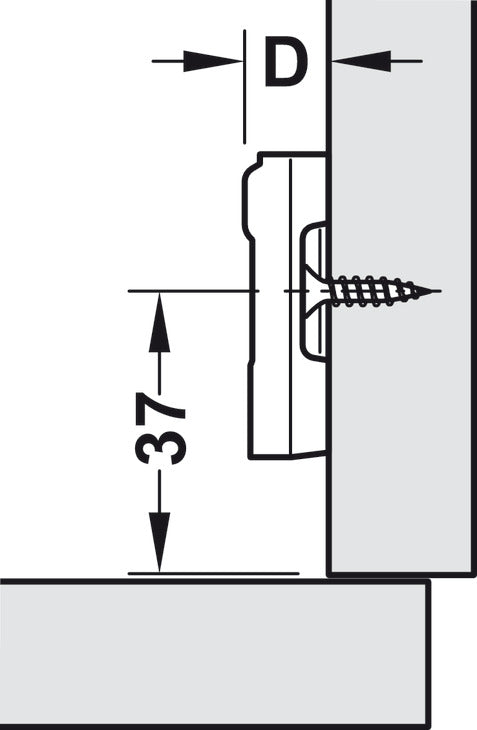

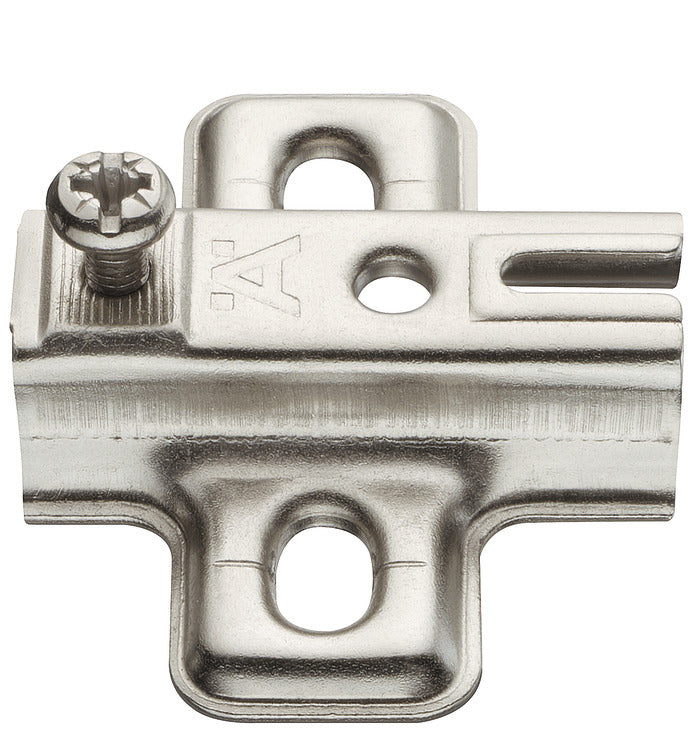

Mounting Plate 31198680

  • Material: Steel
  • Adjustment facility: Height adjustment 0 mm via slot
  • System: Slide-on system for screw fixing
View full details
