- Sku: hafele-31632600hinges
- Type: furniture hinges
HAFELE Full Overlay 175D Metalla Hinge With 2mm Mounting Plate 31632600
33,600.00 TZS
Tax included.
Shipping calculated at checkout.
In stock!
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION

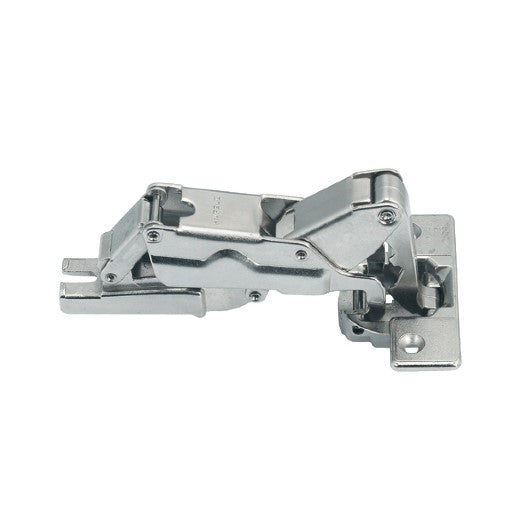

Overlaying Hinge

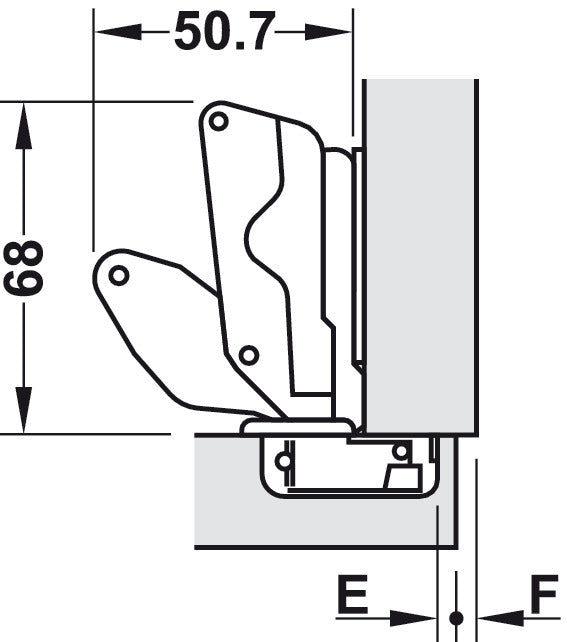

- Drilling pattern: 48/6 mm
- Cup fixing: For screw fixing
- Hinge arm: Straight
- Material: Zinc alloy cup, steel hinge arm
- Finish: Nickel plated
- Cup fixing: For screw fixing
- Installation: Door to cabinet with slide-on system A or with quick fixing system SM
- Drilling depth: Hinge cup 12.5 mm
- Adjustment facility: 3-dimensional (with appropriate mounting plate)
- With automatic closing spring: Drilling pattern: 48/6 mm

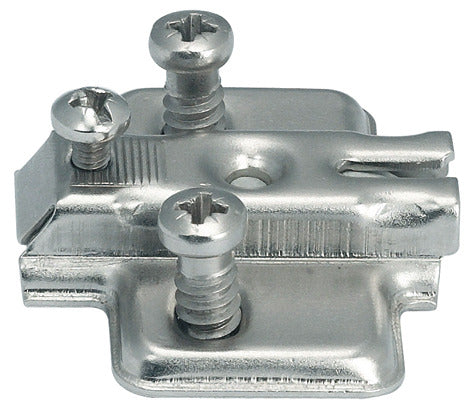

Mounting Plate
- Material: Steel
- Finish: Nickel plated

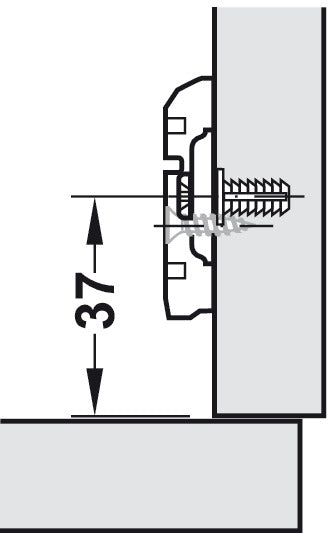

- Installation: For screw fixing into 32 mm series drilled holes
- Adjustment facility: Height adjustment ±2 mm via slot
