HAFELE Door Handle Set 90392666 LDH2176

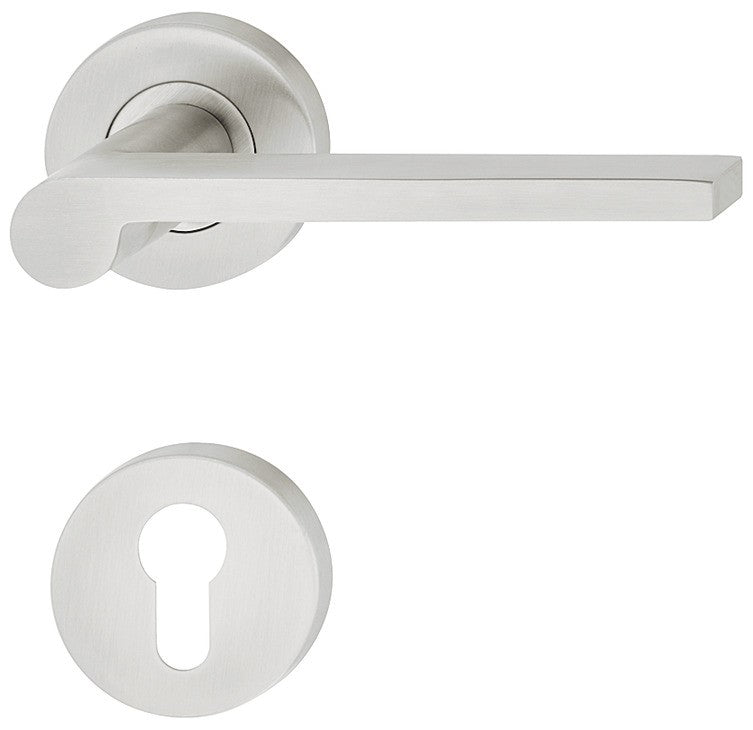

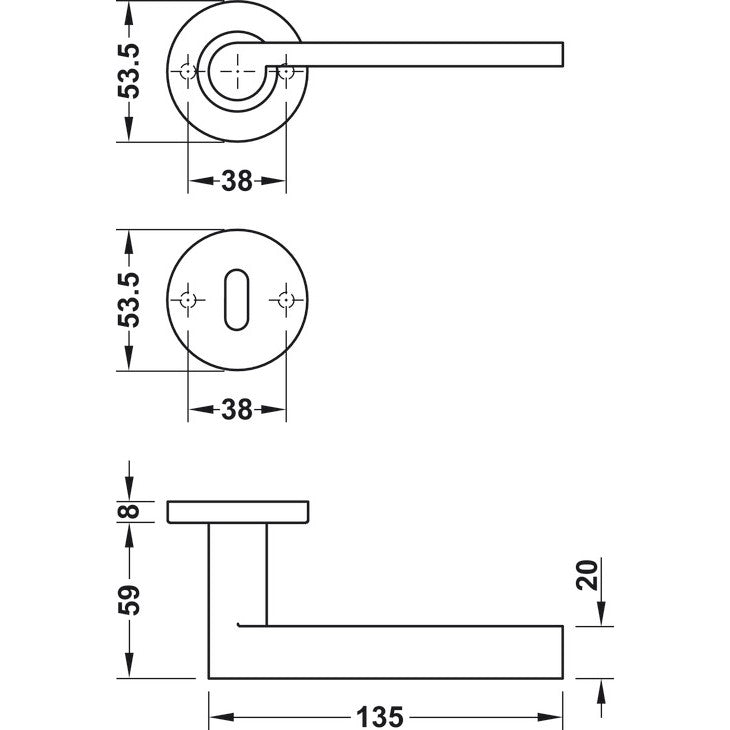

Handle 90392666

• Material: Stainless steel
• Lever handle length: 135 mm
• Lever handle depth: 59 mm
• Quality: DIN EN 1906:2012
• Substructure: Steel
• Finish: Matt
• Bearing: Lever handle pivot-fitted in rose, sprung
• Suitable for door thickness: 38 to 55mm
• Supplied with: 2 Lever handle aperture parts, 1 Spindle 8 x 100 mm, 1 Pair of handle roses, 1 Pair of PC escutcheons, 8 Chipboard screws 3.9 x 19 mm, 4 Threaded screws 4 x 65 mm, can be shortened, 4 Sleeves with internal thread M4 x 17 mm

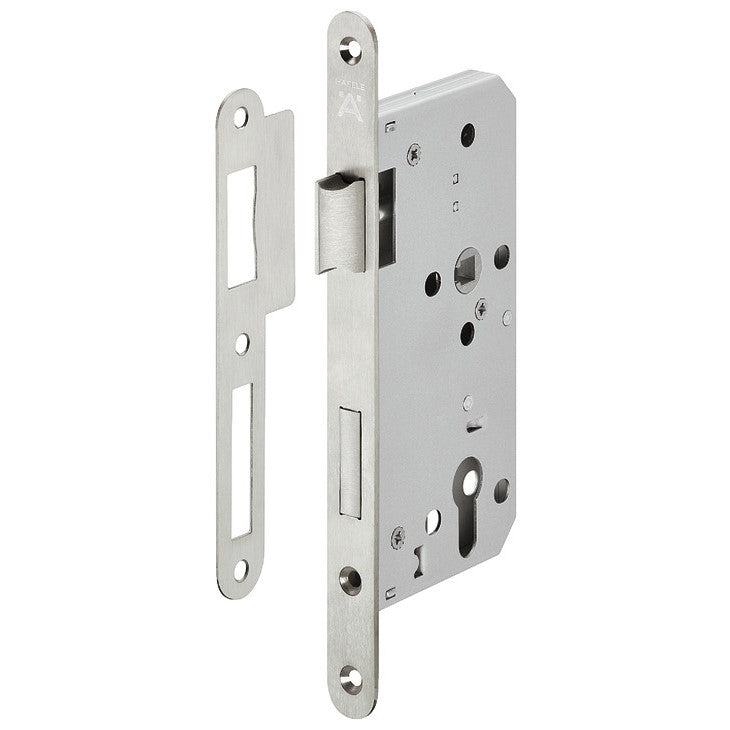

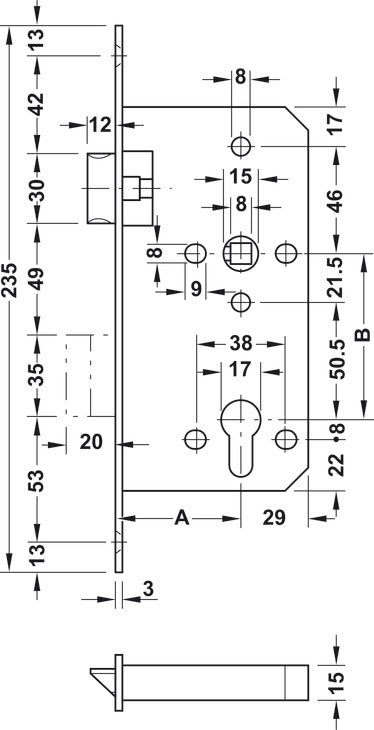

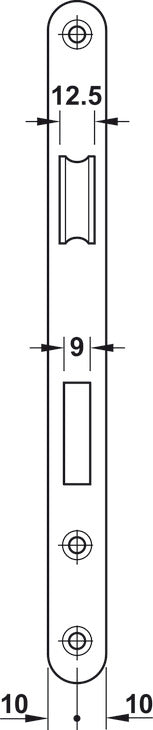

Mortice Lock 91102151

• Backset A: 55 mm
• Mounting: DIN left and DIN right, reversible
• Area of application: For rebated or flush doors
• Forend, latchbolt and deadbolt material: Stainless steel
• Lock case material: Steel
• Deadbolt pocket material: Plastic
• Type of locking: Prepared for profile cylinder
• Deadbolt: 2-turn
• Version: With key action
• Forend: Round
• Lever follower: 8 mm
• Distance B: 72 mm
• Standard: Certified in compliance with EN 12209:2003
• What's in the box: 1 mortice lock, 1 flanged striking plate, 2 deadbolt pockets

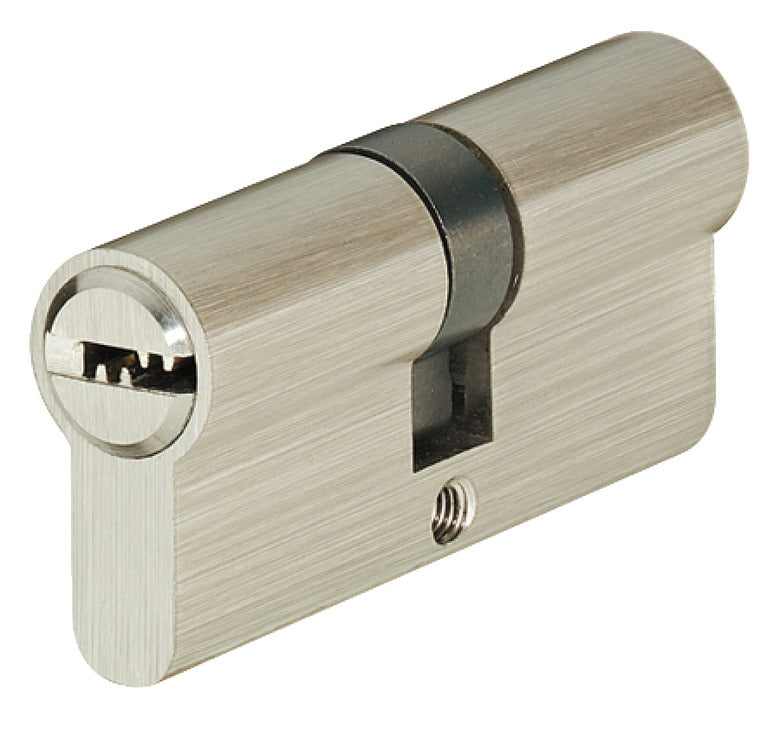

Double Stndard Profile Cylinder 91659007

• Keyed to differ with reversible key
• Cylinder housing material: Brass
• Finish: Nickel plated
• Type of locking: Keyed to differ
• Locking system: With 5 pin tumblers
• What's in the box: 1 cylinder (double, single or thumbturn cylinder), 3 keys, nickel plated steel, 1 fixing screw
