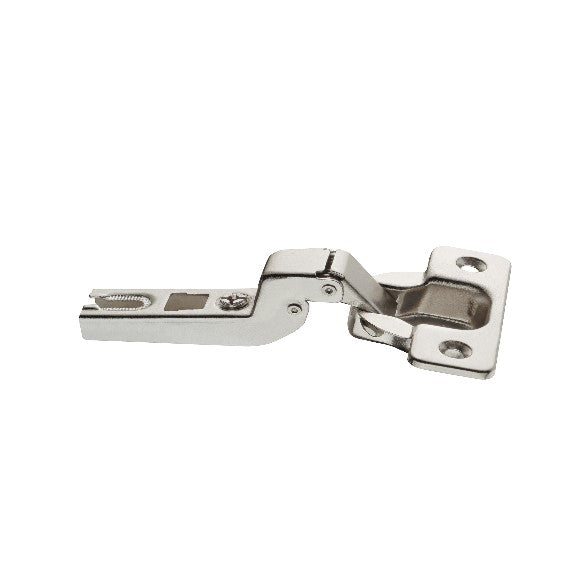

HAFELE Concealed Hinge With 2mm Mounting Plate 31190622
HAFELE Concealed Hinge With 2mm Mounting Plate 31190622
Regular price
4,800.00 TZS
Regular price
Sale price
4,800.00 TZS
Unit price
per
18% Vat Inclusive.
Shipping calculated at checkout.
This product comes directly from the factory
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Overlay Hinge
- Automatic closing
- Pot attachment for screwing
- Color/finish: Nickel plated
- For door material: Wood
- Concealed hinge design: Inside stop
- Offset type: Cranked up
- Opening angle: 110 degrees
- Material: Articulated arm steel
- Assembly: Door on the body to slide open with slide-on technique
- Setting option: Side adjustment: ±2.5 mm, height adjustment: ±2 mm, depth adjustment: -1.5 – 4.5 mm, height adjustment via mounting plate
- For wooden door thickness: 14-26mm
- Pot drilling depth: 12mm
- Drilling pattern: 48/6

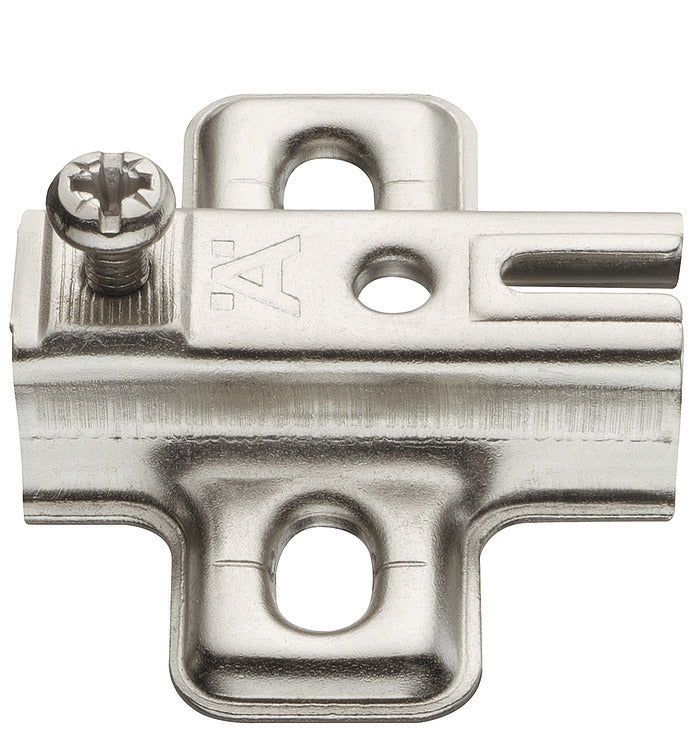

- Mounting plate material: Steel
- Adjustment facility: Height adjustment ±2 mm via slot
