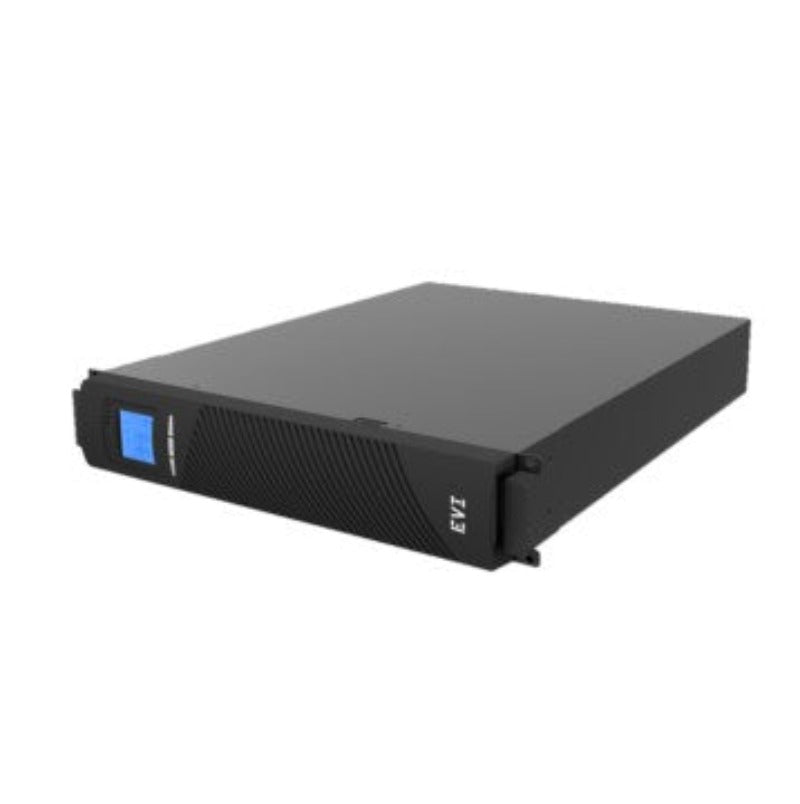

EVI UPS Online Rack/Tower, 3000VA, 3kVA 230V, USB Port, RS232 & SNMP Card Slot Outlets, UPS3000EUC13OR

EVI UPS Online Rack/Tower, 3000VA, 3kVA 230V, USB Port, RS232 & SNMP Card Slot Outlets, UPS3000EUC13OR

Out of stock

Regular price 2,274,600.00 TZS
Regular price Sale price 2,274,600.00 TZS
Sale Sold out
18% Vat Inclusive. Shipping calculated at checkout.

Estimated Shipping Widget will be displayed here!

Evi UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

UPS Features

  • Online double conversion
  • Rack Mountable
  • Wide input voltage range (110 ~ 300 Vac)
  • Input power factor: 0.99 (With PFC)
  • Output power factor: 1.0
  • 50 Hz / 60 Hz frequency converter mode
  • Emergency power off function (EPO)
  • ECO mode support
  • Optional Communication ports: SNMP, USB, RS232
  • Smart battery charging design for optimized battery performance
  • Selectable output voltage: 200, 208, 220, 230, 240 Vac

Technical Specifications

Power

  • Maximum configurable power in VA: 3000 VA
  • Max Configurable Power (Watts): 3000 Watts
  • Phase: Single phase

Input

  • Low voltage transfer to bypass:  160V @ 100-80% load, 120V @ 70-60% load, 110V @ 60-50% load
  • High voltage transfer to bypass: 300V
  • Input voltage range: 55-150V/ 110-300V @ 60% load, 80-145V/160-300V @ 100% load
  • Operating frequency range: 40-70 Hz
  • Power factor: 0.99
  • Generator input: Supported
  • Nominal voltage: 200/ 208/ 220/ 230/ 240 V

Output

  • Output voltage: 200/ 208/ 220/ 230/ 240 V
  • Power factor: 1
  • Voltage regulation: 1%
  • Voltage frequency on Battery mode: 50/60 Hz
  • Voltage frequency on line mode: 47-53 Hz or 57-63 Hz
  • Crest factor: 3:1
  • Topology: Pure sinewave
  • Transfer time: Battery mode 0, Inverter mode 4ms (typical)
  • Output outlets: USB Port, RS232 & SNMP Card Slot Outlets

Efficiency

  • AC mode: 92%
  • Battery mode: 90%

Battery

  • Battery type: Lead-acid battery, 12V, 9Ah
  • Number of batteries: 6
  • Typical recharge time: 4 hours charge to 90% capacity
  • Charging voltage: 82.1 vdc

System & operating features

  • Short circuit: Hold whole system
  • Overheat: Line mode: Switch to bypass, Backup mode: UPS will shut down
  • Low battery: Alarm and switch off
  • Alarms: Line failure, low battery, overload, system fault
  • Operating Temperature: 0 - 40 °C
  • Noise level: <50 dBA

Physical

  • Dimensions: 440 x 600 x 86.5 mm
  • Weight: 26.2kg
