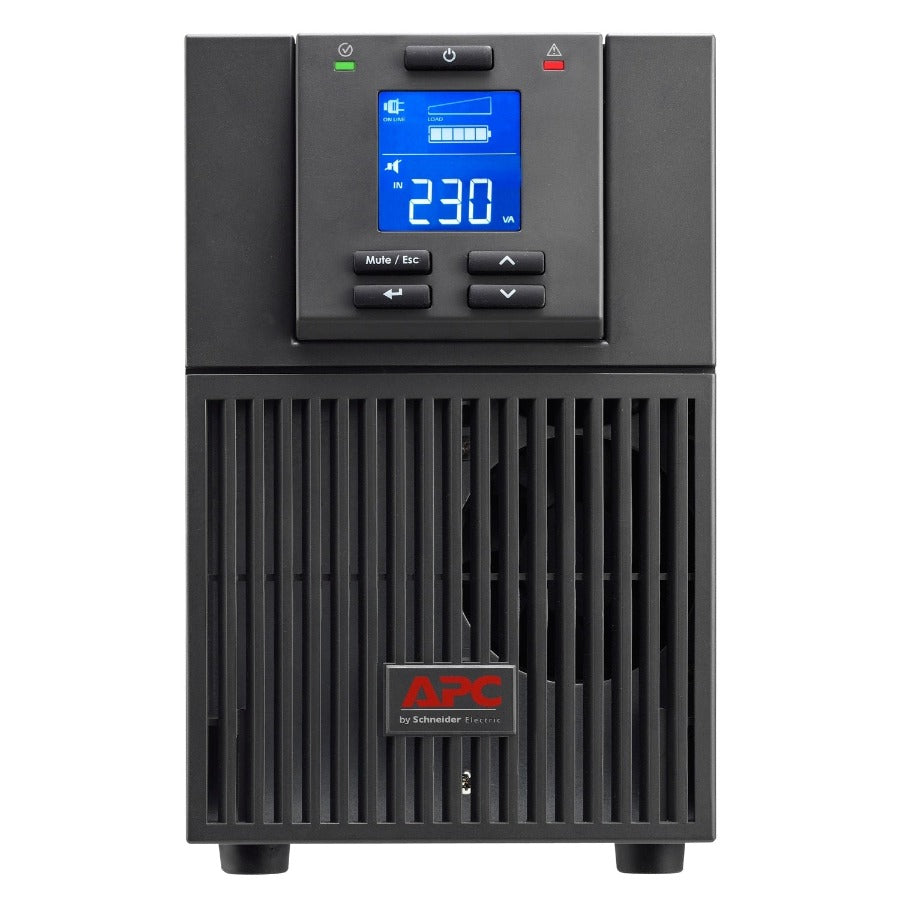

APC Smart-UPS RC 2000VA, 230V, LCD, 4 IEC Sockets SRC2KI

High density, double-conversion on-line power protection with scalable runtime, designed for essential power protection needs even in the most unstable power conditions.

Specifications

Voltage

• Main Input Voltage: 230 V
• Other Input Voltage: 220 V/ 240 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V/ 240 V
• Rated power in W: 1600 W
• Rated power in VA: 2000 VA

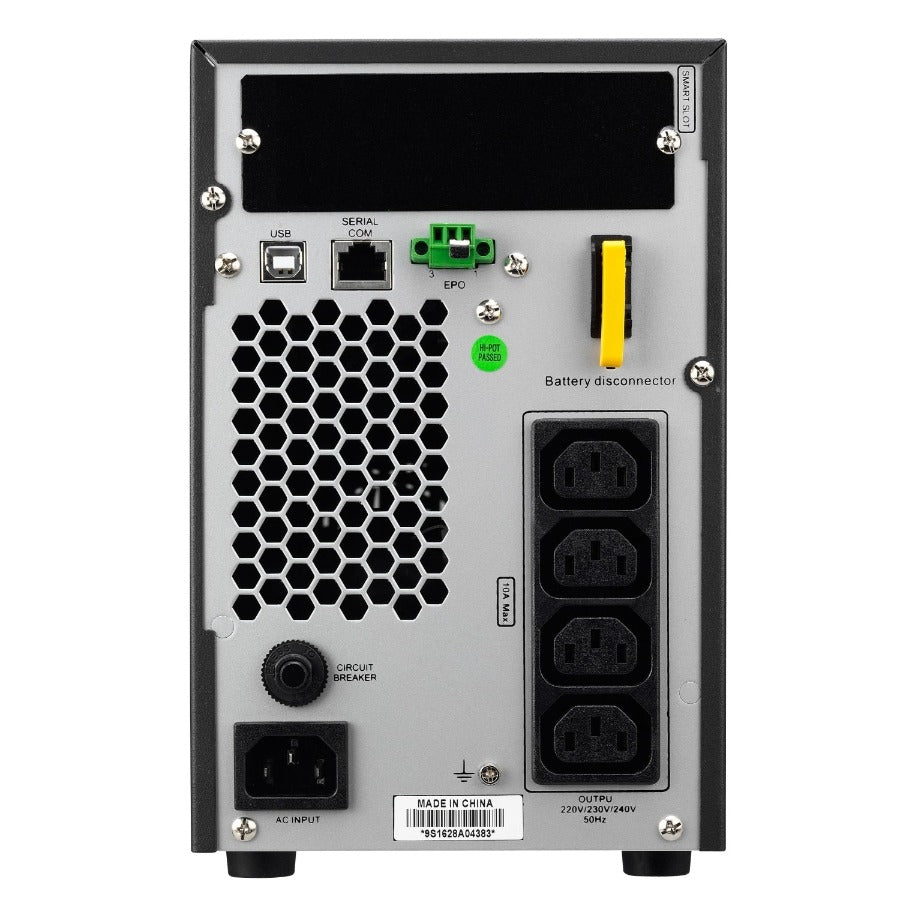

• Input Connection Type: IEC 60320 C14
• Output connection type: 4 IEC 60320 C13
• Cable length: 1.22 m

General

• Number of power module free slots: 0
• Number of power module filled slots: 0

Physical

• Height: 26 cm
• Width: 14.5 cm
• Depth: 39.7 cm
• Packaging weight: 19.8 kg

Input

• Network frequency: 50/60 Hz
• Input voltage limits: 160...280 V
• Load power factor: 0.8

Output

• Maximum configurable power in W: 1600 W
• Harmonic distortion: Less than 3 %
• Crest factor: 3 : 1
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised
• UPS type: Double conversion online
• Wave type: Sine wave
• Output harmonic distortion: < 3% linear load
• Bypass type: Built-in bypass
• Maximum configurable power in VA: 2000 VA

Environmental

• Ambient air temperature for operation: 0…40 °C
• Relative humidity: 0…95 %
• Ambient air temperature for storage: -20…50 °C
• Storage Relative Humidity: 0…95 %
• Acoustic level: 50 dBA

Batteries & Runtime

• Efficiency: View Efficiency Graph
• Number of battery filled slots: 1
• Number of battery free slots: 0
• Battery recharge time: 3 h
• Battery voltage: 48 V
• Battery charger power: 144 W rated
• Battery power in VAH: 432 VAh runtime

Communications & Management

• Free slots: 1
• Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency power off: Yes
