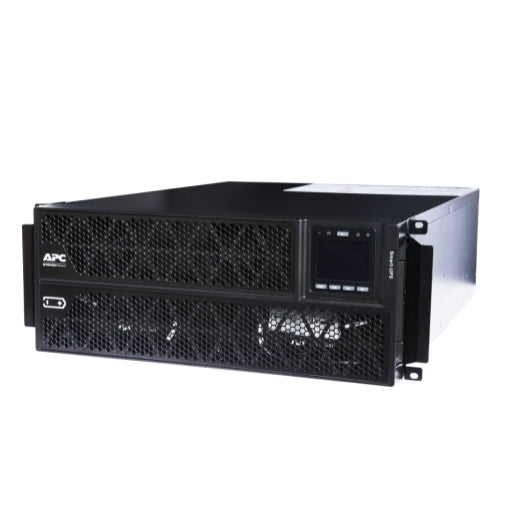

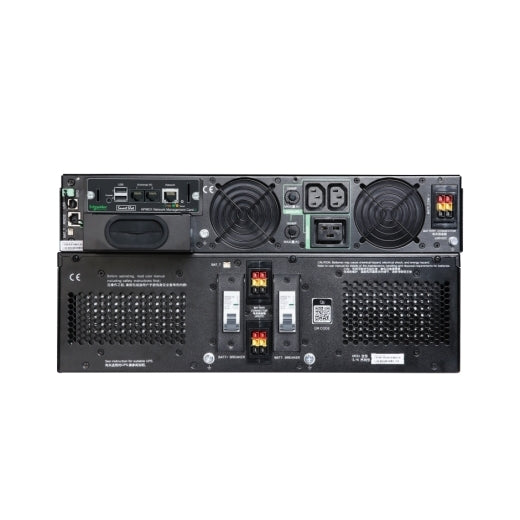

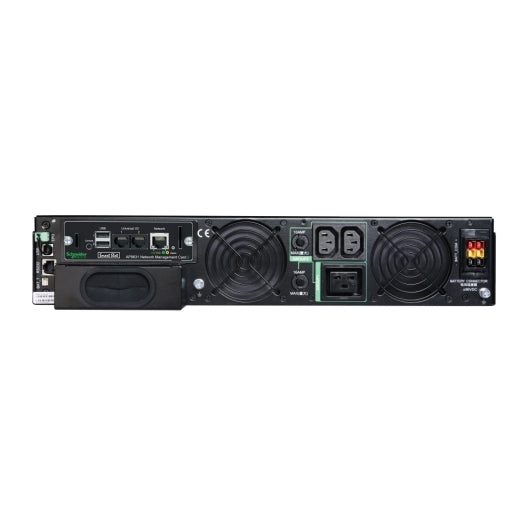

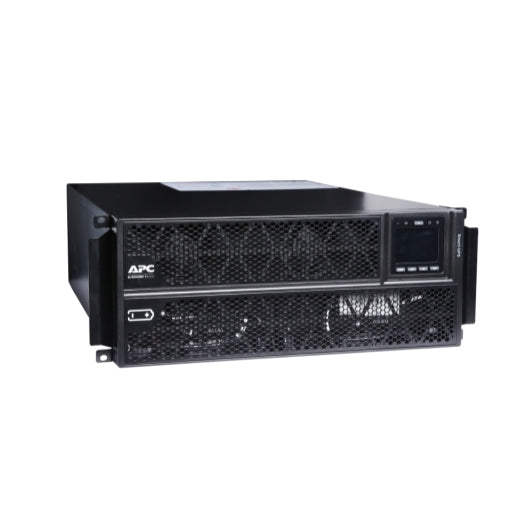

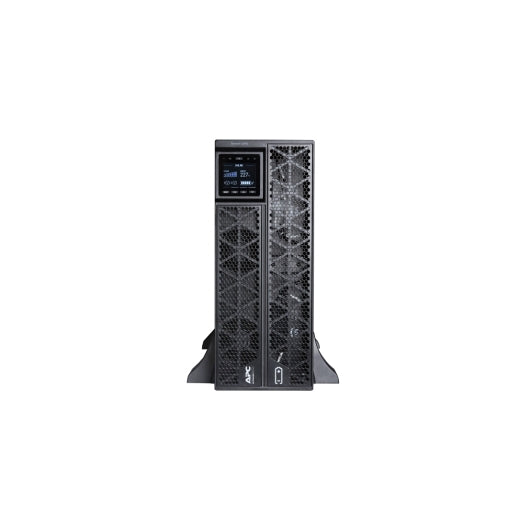

APC Smart-UPS On-Line, 5kVA 5000va, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets SRTG5KXLI

Specifications

Overview

• Main Input Voltage: 230 V
• Main Output Voltage: 230 V
• Rated power in W: 5000 W
• Rated power in VA: 5000 VA
• Nb of power socket outlets: 2 IEC 60320 C13, 1 IEC 60320 C19
• Output connector type: Hard wire 3-wire (H N + E) 1
• Battery type: Lead-acid battery
• Provided equipment: Smart UPS signaling RS-232 cable, User manual, USB cable

Physical

• Height: 17.78 cm
• Width: 44 cm
• Depth: 62 cm
• Net weight: 51.9 kg
• Mounting mode: Rack-mounted with kit ( NOT INCLUDED)
• USB compatible: No

Input

• Network frequency: 40...70 Hz auto-sensing
• Number of input connectors: 1 hard wire 3-wire (1P + N + E)
• Input voltage limits: 160...285 V
• Maximum input current: 30 A
• Switching current capacity: 40 A

Output

• Maximum configurable power in W: 5000 W
• Harmonic distortion: Less than 2 %
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains
• Crest factor: 3 : 1
• UPS type: Double conversion online
• Wave type: Sine wave
• Bypass type: Internal bypass (automatic and manual)
• Full load runtime: 00:03:30 5000 W
• Half load runtime: 00:10:20 2500 W
• Maximum configurable power in VA: 5000 VA

Environmental

• Ambient air temperature for operation: 0…40 °C
• Relative humidity: 0…95 % non-condensing
• Operating altitude: 0...6600 ft
• Acoustic level: 55 dBA
• Heat dissipation: 1108.95 Btu/h
• IP degree of protection: IP20

Batteries & Runtime

• Run Time: View Runtime Graph
• Number of battery filled slots: 2
• Number of battery free slots: 0
• Battery recharge time: 4 h
• Additional information: Configurable for 220 : 230 or 240 nominal output voltage
• Battery voltage: +/- 96 V
• Battery charger power: 239 W rated
• Battery power in VAH: 960 VAh capacity, 960 VAh runtime
• Battery option: SRTG192XLBP4 1 2651 VAh, SRTG192XLBP4 2 4424 VAh, SRTG192XLBP4 3 6314 VAh, SRTG192XLBP4 4 8118 VAh
• Extended runtime: 1

Communications & Management

• Preinstalled device: Network management card
• Control panel: LED Status display with on line on battery, Multifunction LCD status and control console
• Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency power off: Yes
