- Sku: apc-srtg10kxli
- Type: UPS Power Backup

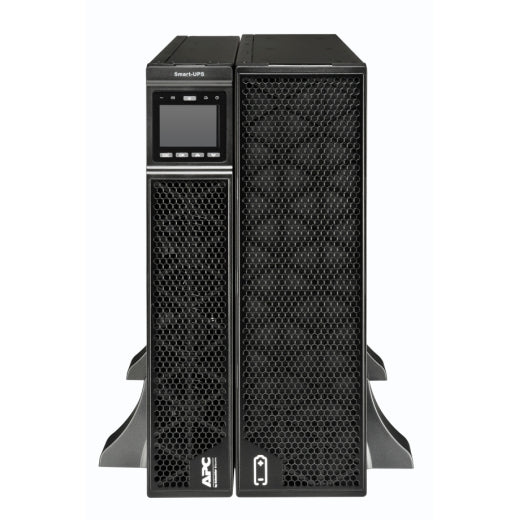

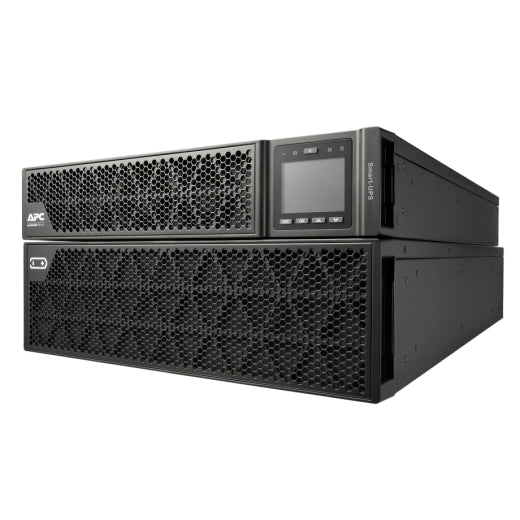

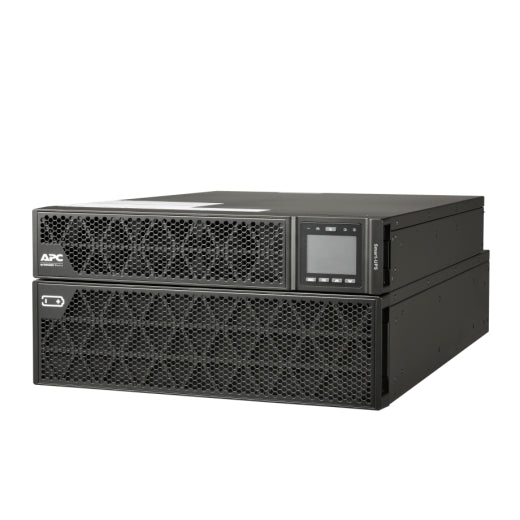

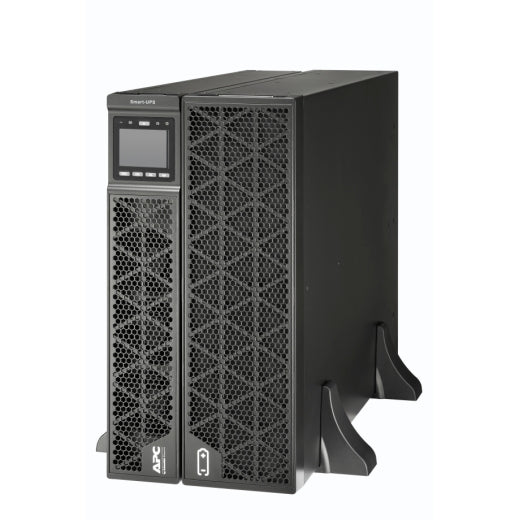

APC Smart-UPS On-Line, 10kVA 10000va, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, SRTG10KXLI
16,842,000.00 TZS
Tax included.
Shipping calculated at checkout.
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
FEATURES
- Output power capacity: 10.0kWatts / 10.0kVA / 10000va

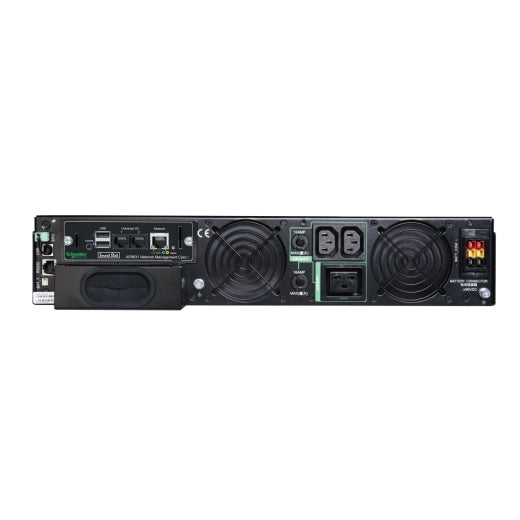

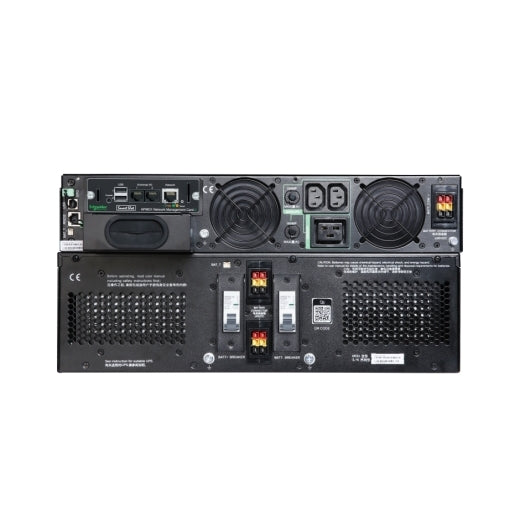

- Output Connections: (1) IEC 60320 C19 (Battery Backup), (2) IEC 60320 C13 (Battery Backup), (1) Hard wire 3-wire (H N + E) (Battery Backup)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: Hard wire 3-wire (1P + N + E)
- High density, double-conversion on-line power protection with scalable runtime
- Includes: Smart UPS signalling RS-232 cable, User manual
Specifications
Output
- Max Configurable Power (Watts): 10.0kWatts / 10.0kVA
- Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
- Output Voltage Distortion: Less than 2 %
- Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
- Other Output Voltages: 220 V, 240 V
- Load Crest Factor: 3 : 1
- Topology: Double conversion online
- Waveform type: Sine wave
- Bypass: Internal bypass (automatic and manual)
Input
- Input frequency: 40 - 70 Hz Auto-sensing
- Input voltage range for main operations: 160 - 285V
- Other Input Voltages: 220 V, 240 V
- Maximum Short Circuit Withstand (Icw): 40.0kAmps
Batteries & Runtime
- Battery type: Lead-acid battery
- Typical recharge time: 4 hour(s)
- Nominal Battery Voltage: +/- 96 V
- Battery Charge Power (Watts): 431 Watts
- Extendable Run Time: 1
- Runtime: View Runtime Graph
Communications & Management
- Interface Port(s): RJ-45 Serial, Smart-Slot, USB
- Control panel: LED Status display with on line : on battery, Multifunction LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Emergency Power Off (EPO): Yes
Physical
- Height: 217MM, 21.7CM
- Width: 440MM, 44.0CM
- Depth: 620MM, 62.0CM
- Net Weight: 81.12KG
Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 2011.68meters
- Audible noise at 1 meter from surface of unit: 55.0dBA
- Online thermal dissipation: 2218.0BTU/hr
- Protection Class: IP20
