- Sku: Apc-SUA5000RMI5U
- Type: ups apc rack mount power backups
APC Smart-UPS, 5kVA, 5000VA, 230V, 5U Rackmount/Tower SUA5000RMI5U
11,486,000.00 TZS
Tax included.
Shipping calculated at checkout.
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Output power capacity: 4.0kWatts / 5.0kVA
- Rack Height: 5U

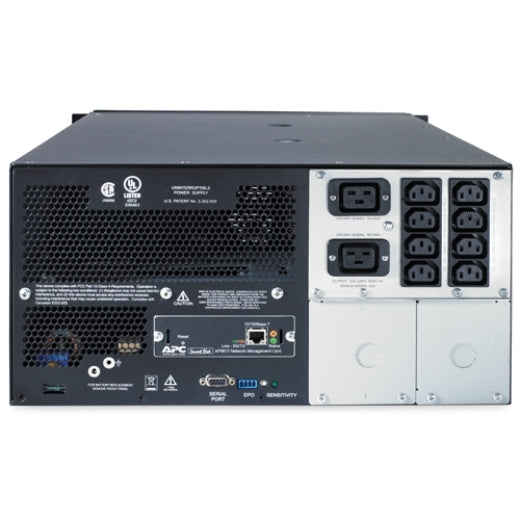

- Output Connections: IEC Jumpers (Battery Backup), IEC 320 C19 (Battery Backup), IEC 320 C13 (Battery Backup)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: Hard wire 3-wire
Features
- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Resettable circuit breakers: Enables a quick recovery from overload events.
- Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive failure notification.: Provides early-warning fault analysis ensuring proactive component replacement.
- Audible alarms: Provides notification of changing utility power and UPS conditions.
- Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- LED status indicators: Quickly understand unit and power status with visual indicators.
- Serial connectivity: Provides management of the UPS via a serial port.
- USB connectivity: Provides management of the UPS via a USB port (not available on all models).
- Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms: Provides notification of changing utility power and UPS power conditions
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Cold-start capable: Provides temporary battery power when the utility power is out.
- Disconnected battery notification: Warns when a battery is not available to provide backup power.
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

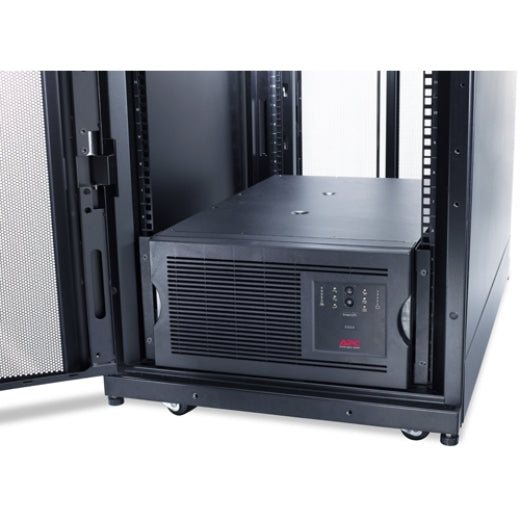

- Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Resettable circuit breakers: Enables a quick recovery from overload events.
- Safety-agency approved: The UPS is UL1778 Listed
- Serial connectivity: Provides management of the UPS via a serial port.
- SmartSlot: Customize UPS capabilities with management cards.
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
Technical Specifications
- Max Configurable Power (Watts): 4.0kWatts / 5.0kVA
- Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
- Efficiency at Full Load: 96.0 %
- Output Voltage Distortion: Less than 5 % at full load
- Output Frequency (sync to mains): 47 - 53 Hz For 50 Hz nominal Sync to mains
- Other Output Voltages: 220 V, 240 V
- Load Crest Factor: 3 : 1
- Topology: Line interactive
- Waveform type: Sine wave
- Transfer Time: 2 ms typical : 4 ms maximum
- Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
- Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
- Efficiency at Full Load: 96.0 %
- Battery type: VRLA
- Typical recharge time: 3hour(s)
- Replacement Battery: RBC55
- RBC Quantity: 2
- Battery Charge Power (Watts): 542 Watts
- Interface Port(s): DB-9 RS-232, SmartSlot
- Control panel: LED status display with on line : on battery : replace battery and overload indicators
- Audible Alarm: Audible and visible alarms : configurable delays
- Surge energy rating: 480Joules
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Height: 222MM, 22.2CM
- Width: 483MM, 48.3CM
- Depth: 660MM, 66.0CM
- Net Weight: 97.73KG
- Operating Temperature: 0 - 40 °C
- Operating Elevation: 0 - 3048meters
- Storage Temperature: -15 to 45 °C
- Audible noise at 1 meter from surface of unit: 53.0dBA
- Online thermal dissipation: 430.0BTU/hr
