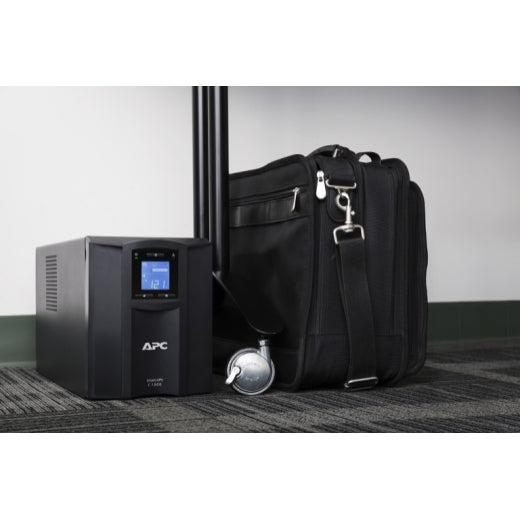

APC Smart-UPS 1000VA, Tower, LCD, 8 IEC Sockets, 230V with SmartConnect Port SMC1000IC

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and more.

• Output power capacity: 600 Watts / 1.0kVA
• Output Connections: (8) IEC 60320 C13 (Battery Backup)
• Nominal Output Voltage: 230V
• Nominal Input Voltage: 230V
• Input Connections: IEC 320 C14

Features

• Cold-start capable: Provides temporary battery power when the utility power is out.
• Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High online efficiency: Reduces utility costs, generates less heat.
• LCD Status Display: Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• SmartConnect: Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
• Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Specifications

Output

• Max Configurable Power (Watts): 600 Watts / 1.0kVA
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220, 240
• Topology: Line interactive
• Waveform type: Sine wave
• Transfer Time: 6 ms typical : 10 ms maximum

Input

• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations: 170 - 300 Adjustable, 180 - 287V
• Other Input Voltages: 220, 240

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 3 hour(s)
• Replacement Battery: APCRBC142
• Expected Battery Life (years): 3
• RBC Quantity: 1
• Battery Charge Power (Watts): 72 Watts
• Battery Volt-Amp-Hour Capacity: 216

Communications & Management

• Interface Port(s): RJ-45 Serial, USB
• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

• Surge energy rating: 455Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Height: 219MM, 21.9CM
• Width: 171MM, 17.1CM
• Depth: 439MM, 43.9CM
• Net Weight: 17.27KG

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0 - 3048meters
