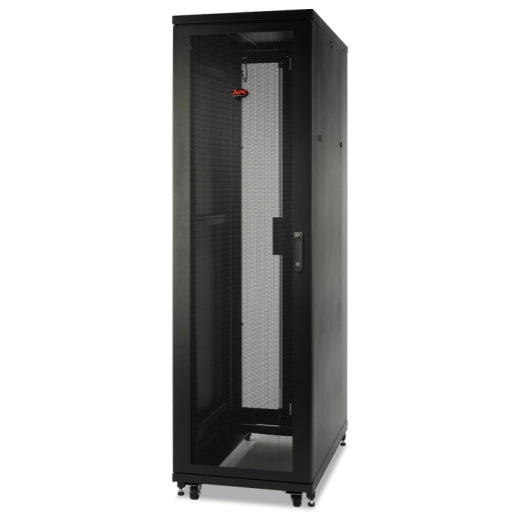

APC NetShelter SV 42U 600mm x 1060mm AR2400

• Enclosure adjustment tools and hardware provided: All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment
• Simple Selection: No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Schneider Electric has made it easy by handling the details and providing complete enclosures with single part numbers

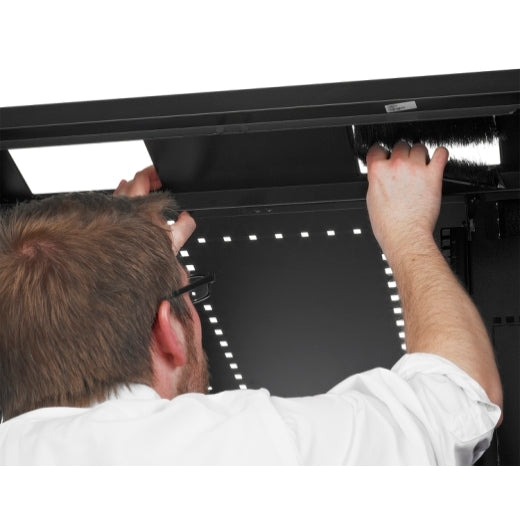

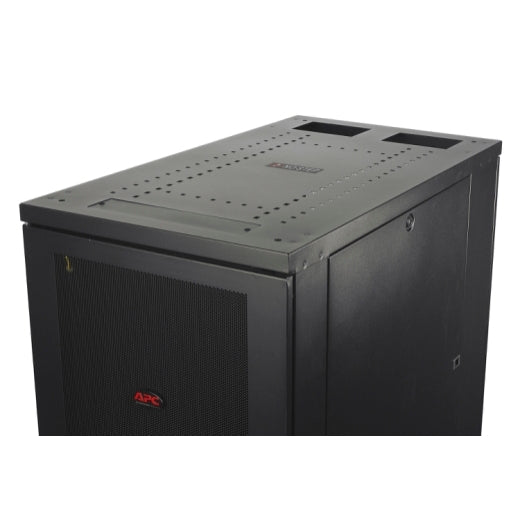

• Cable access openings and panels: Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Brushes included in roofs for 800mm (32 in) wide enclosures

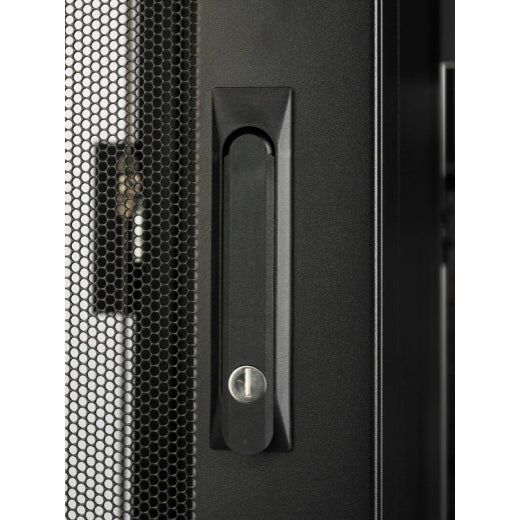

• Removable full-height side panels: Side panels are removable for ease of access to the enclosure during equipment installation and setup. Side panels are lockable utilizing a single key that is also usable on the front and rear doors.

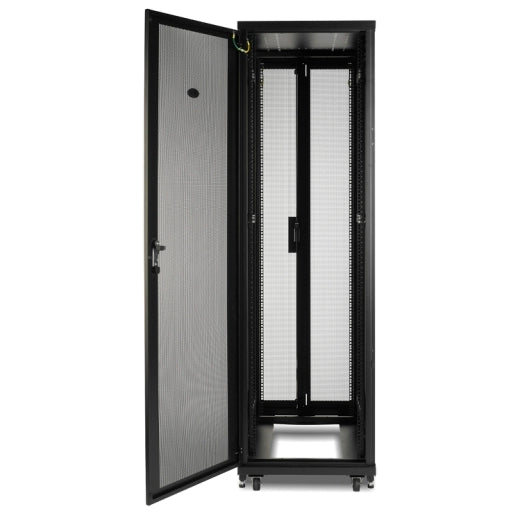

• Quick release doors with spring pin design: Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple spring hinge pin design

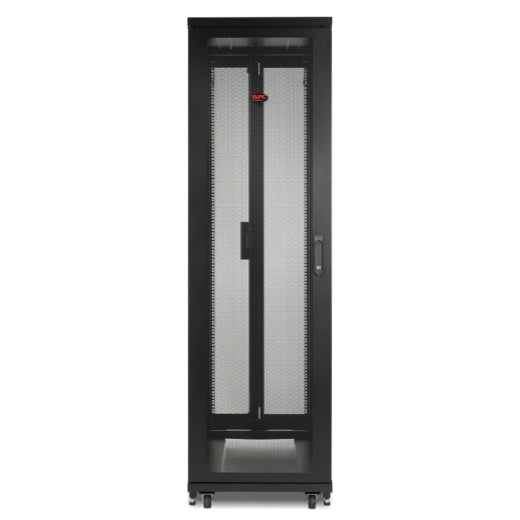

• Perforated front and rear doors: Perforated front and rear doors provide ample ventilation for rack-mount equipment

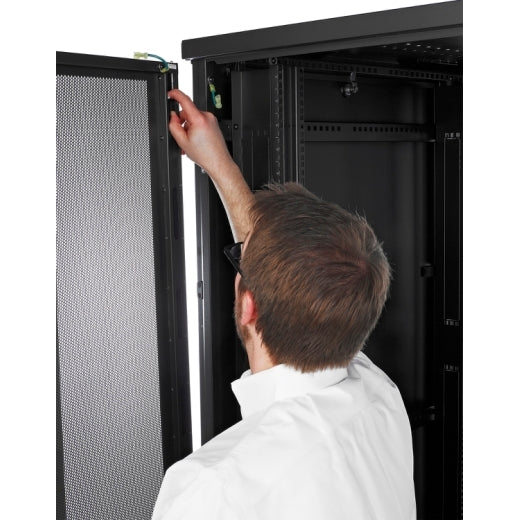

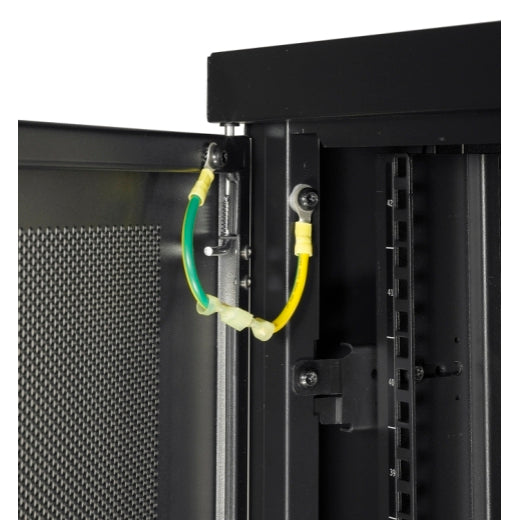

• Integrated electrical grounding: The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding
• Enclosure to floor bolt-down brackets provided: Enclosure is delivered with bolt-down brackets that secure the enclosure to the pallet during shipment. These same bolt-down brackets can be utilized to bolt the enclosure to the floor at the final installation site

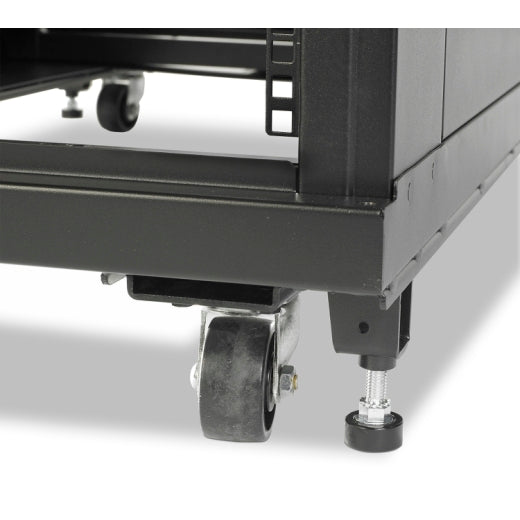

• Standard-profile castors and adjustable leveling feet from underneath: Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be adjusted using a wrench from underneath the enclosure

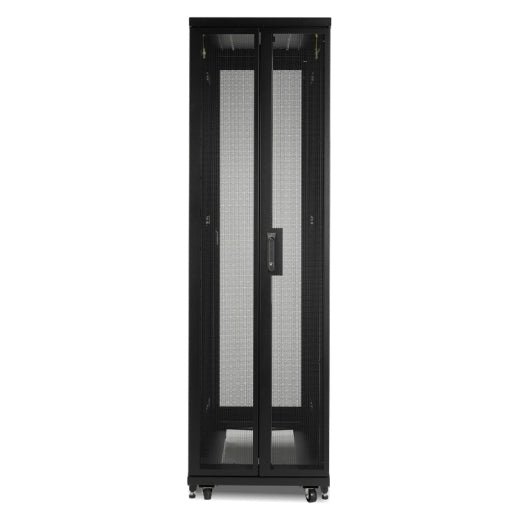

• Split rear doors: Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing
• Unassembled enclosure option (42U x 600mmW x 1060mmD) for unique sites: Not all installation sites have space clearance required to move and install standard height enclosures. This unassembled option is packaged for transport through narrow spaces and assembly at the installation site

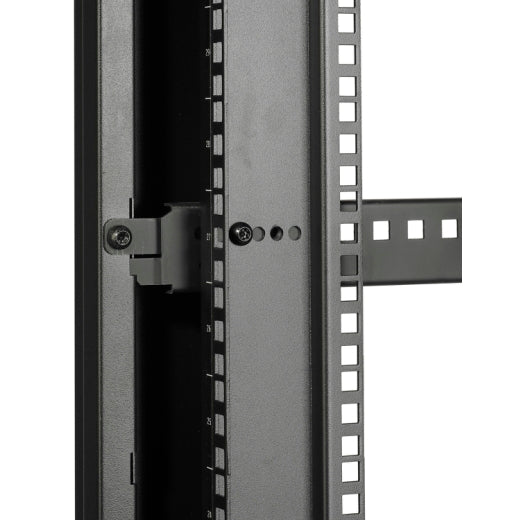

• Adjustable mounting rails with simple alignment: The vertical mounting rails can be adjusted in 0.4 in (10 mm) increments covering virtually any mounting requirement for IT equipment. Align the mounting rails with the opposite side of the enclosure by identifying the hole position used. U positions are numbered front and back for rapid installation of equipment

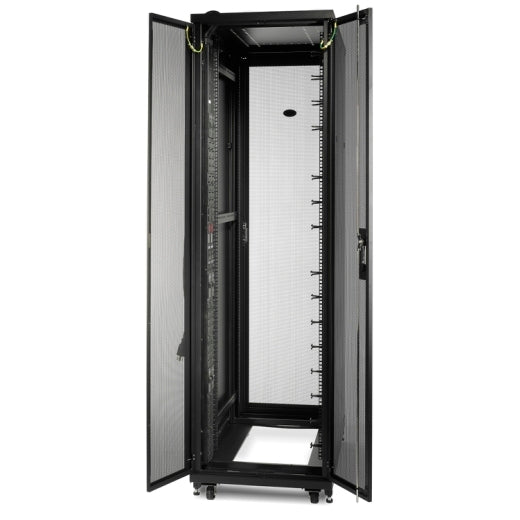

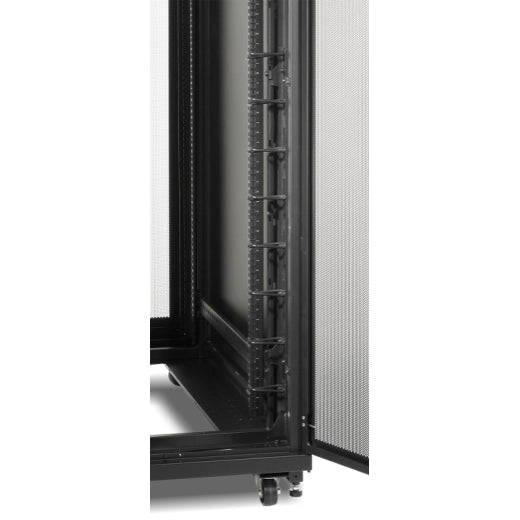

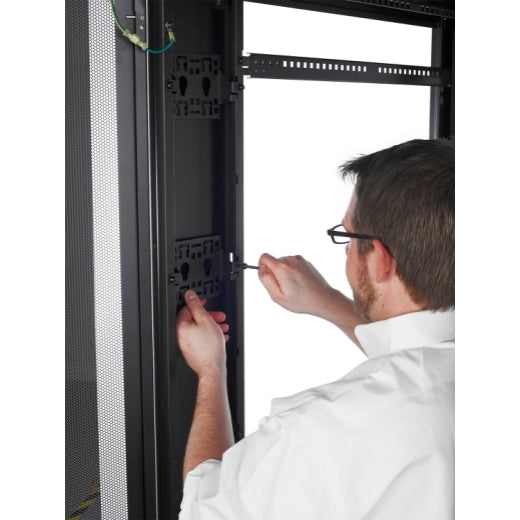

• Pre-installed rear accessory mounting brackets: Integrated and adjustable rear accessory mounting brackets provide zero U mounting locations for toolless accessories. Each bracket has two mounting bays to support a combination of up to four accessories such as Rack PDUs and vertical cable organizers mounted inside the rack. Adjust the brackets from their standard factory positions or install additional brackets (AR824002 - Qty 2) to install half enclosure height accessories such as cable managers and vertical Rack PDUs
• Joining hardware provided: Enclosures include pre-installed joining hardware for joining enclosures in a row and provide additional stability to the enclosure. Enclosures are pre-installed with joining brackets for joining enclosures on 600-mm centers. Joining brackets for joining enclosures on 24-in centers are included with the provided hardware kit
• EIA-310 19in Rack Mounting Compatibility: Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19 inch equipment. All of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter
• Schneider Electric Rack Systems Compatible: Compatible with a variety of Schneider Electric rack accessory products to provide the ability to create a complete rack system

Technical Specifications
