- Sku: srv3ki-apc
- Type: UPS Power Backup

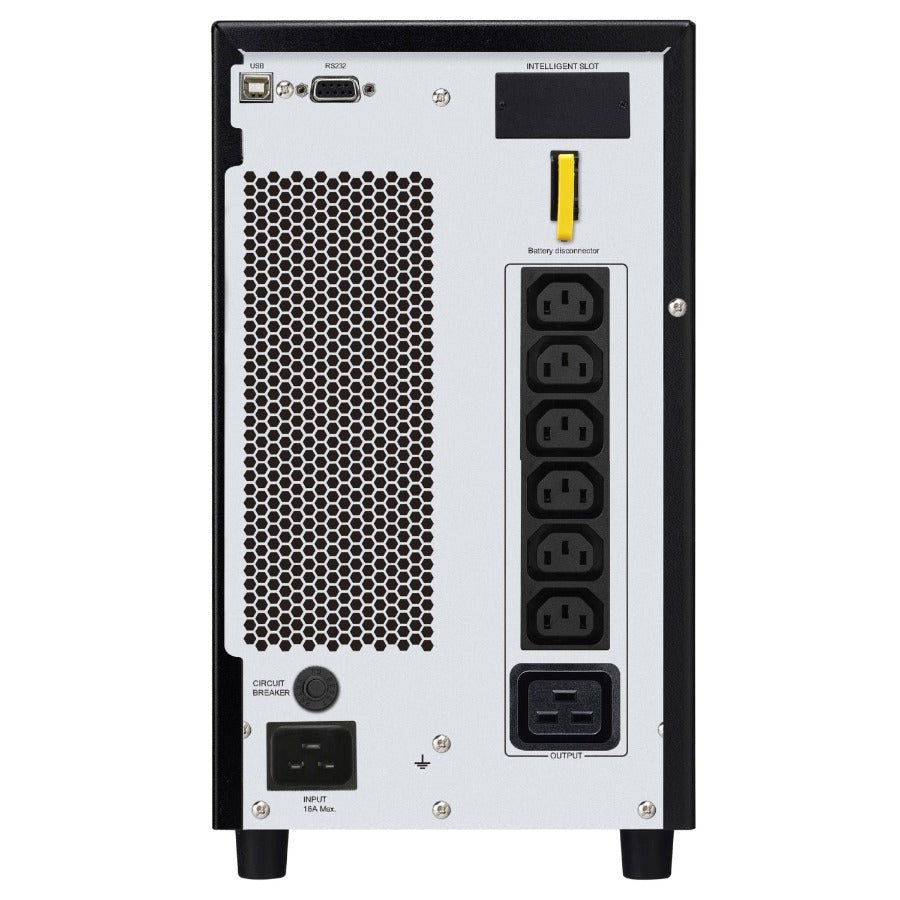

APC Easy UPS On-Line SRV 3000VA 3KVA, 230V, 6 x IEC C13, 1 x IEC C19 Outlets SRV3KI
2,574,000.00 TZS
Tax included.
Shipping calculated at checkout.
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
TECHNICAL SPECS
Overview
- Run time for load 2400W: 4min 24s
- Max. Capacity Used: 100 %
- Main Input Voltage: 230 V
- Other Input Voltage: 220 V / 240 V
- Main Output Voltage: 230 V
- Other Output Voltage: 220 V / 240 V
- Rated power in W: 2400 W
- Rated power in VA: 3000 VA
- Input Connection Type: IEC 60320 C20
- Output connection type: 6 IEC 60320 C13, 1 IEC 60320 C19
- Cable length: 1.50 m
- Provided equipment: 1 IEC 60320 C19 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, user manual
Physical
- Height: 33.6 cm
- Width: 19 cm
- Depth: 42.5 cm
- Net weight: 26.8 kg
- Package weight: 28.6 kg
Input
- Input voltage limits: 110...285 V half load, 160...280 V full load
- Network frequency: 40...70 Hz auto sensing
Output
- Maximum configurable power in VA: 3000 VA
- Maximum configurable power in W: 2400 W
- Output frequency: 50/60 Hz +/- 3 Hz sync to mains
- Harmonic distortion: 3 %
- UPS type: Double conversion online
- Wave type: Sine wave
- Efficiency: 88 % (full load)
- Crest factor: 3 : 1
Environment
- Ambient air temperature for operation: 0…40 °C
- Relative humidity: 0…95 % non-condensing
- Operating altitude: 0...3000 m
- Ambient air temperature for storage: -20…50 °C
- Storage Relative Humidity: 0…95 % non-condensing
- Storage altitude: 0…15000 m
- Acoustic level: 50 dBA
- Heat dissipation: 372 Btu/h
- IP degree of protection: IP20
Batteries & Runtime
- Run Time: View Runtime Graph
- Efficiency: View Efficiency Graph
- Battery type: Lead-acid battery
- Battery voltage: 72 V
- Number of battery filled slots: 0
- Number of battery free slots: 0
- Battery recharge time: 4 h
- Battery life: 3…5 year(s)
- Replacement battery: APCRBCV205
- Battery charger power: 60 W rated
Communications & Management
- Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Free slots: 1
- Control panel: Multifunction LCD status and control console
Surge Protection and Filtering
- Surge energy rate: 600 J
