APC Easy UPS On-Line, 3kVA/ 3000VA, Lithium-ion, Rack/Tower 4U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, Extended Runtime, With Rail Kit, SRVL3KRILRK

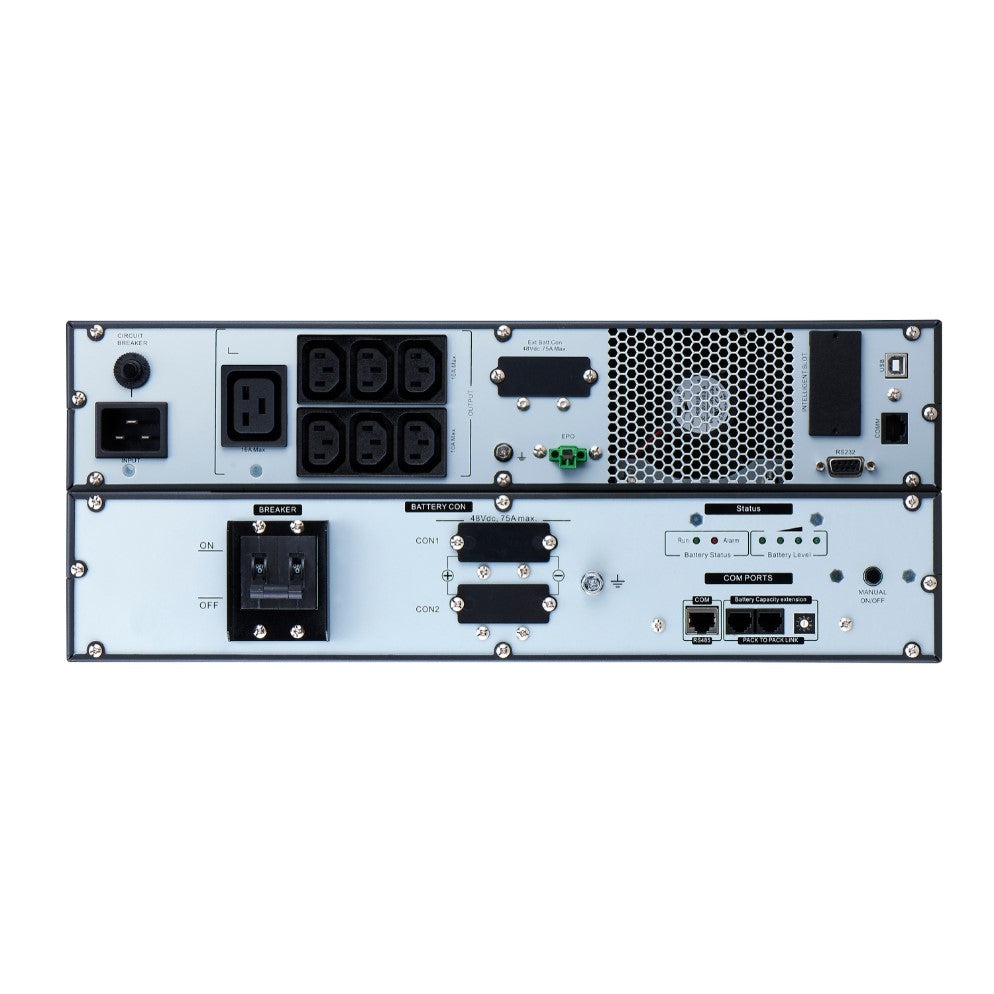

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.

Key Features

• 3000VA/2700W double-conversion on-line pure sine wave 4U rackmount UPS
• Rack/Tower convertible (rail kit included)
• Add up to 2 external battery packs (SRVL48RMBP2U) for extended runtime
• Lithium-ion battery minimizes the need to replace battery during UPS lifetime
• Graceful shutdown of servers and workstations

TECHNICAL SPECS

Output

• Rated Power (Watts): 2700 Watts
• Rated Power (VA): 3000 VA
• Output Voltage: 230 V AC 1 phase
• Efficiency at Full Load: 90.0 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Output Voltages: 220 V, 240 V
• Load Crest Factor: 3 : 1
• Bypass type: Internal bypass (automatic and manual)
• Waveform type: Sine wave
• Output Connections: 6 x IEC 60320 C13, 1 x IEC 60320 C19

Input

• Input Frequency: 40 - 70 Hz Auto sensing
• Input Voltage Limits: 110 - 300V 60 % load, 160 - 300V Full load
• Efficiency at Full Load: 90.0 %
• Input Voltage: 230 V
• Input Connection: IEC 60320 C20

Batteries & Runtime

• Battery type: Li-Ion (Lithium-Ion) external included
• Typical recharge time: 8.5 hour(s)
• Nominal Battery Voltage: 48 V
• Extended Runtime: Yes
• Runtime: Click here to view runtime

Communications & Management

• Control panel: Multifunction LCD status and control console

• Emergency Power off: Yes
• Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Interface Port(s): USB port, serial port, available expansion slot
• Rack mount: 4U

Surge Protection and Filtering

• Surge energy rating: 945 Joules

Physical

• Height: 17.2 CM
• Width: 43.8 CM
• Depth: 61.6 CM
• Net Weight: 38.3 KG
• Shipping weight: 50.6 KG
• What's in the box: Basic UPS signalling RS-232 cable, USB cable, RJ45 cable, RJ11 cable, C13-C14 power cord, IEC-C20 - Shuko input power cord, Rack mounting brackets, Stabilization feet, User manual, Safety guide, Battery cable

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000 meters
• Storage Temperature: -15 - 60 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 15000 meters
• Audible noise at 1 meter from surface of unit: 50.0dBA
• Heat dissipation: 1024 Btu/h
• Protection Class: IP20
