APC Easy UPS On-Line, 1kVA / 1000va, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot With Rail Kit SRV1KRIRK

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Key Features

• Output power capacity: 800Watts / 1.0kVA

• Rack Height: 2U
• Nominal Output Voltage: 230V
• Nominal Input Voltage: 230V
• Output Connections: (3) IEC 60320 C13 (Battery Backup)

• Input Connections: IEC 60320 C13

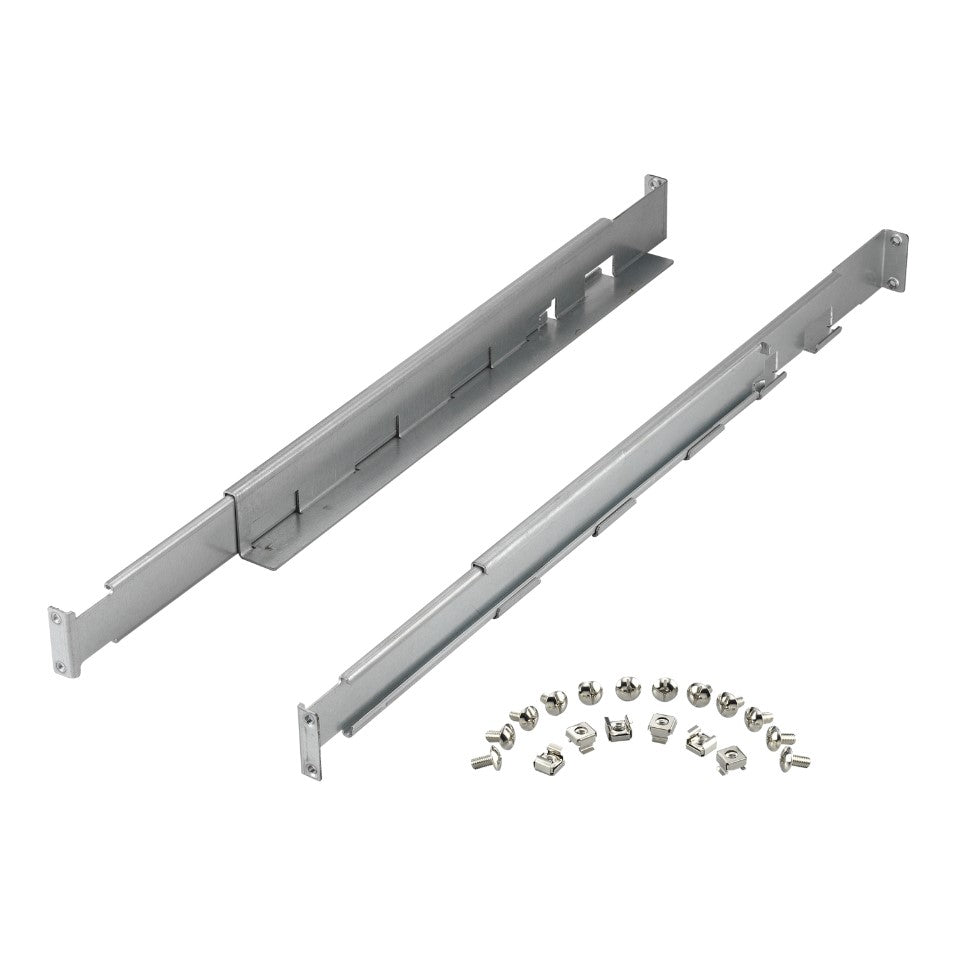

• Whats in the box: 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 1 Brackets suitable for installation in a server cabinet, 1 Guides-supports for installation of circuits in a server cabinet, User manual
• Automatic internal bypass: Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load
• Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power
• ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling
• Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging
• LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms
• Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
• Audible alarms: Provides notification of changing utility power and UPS power conditions
• Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement
• Disconnected battery notification: Warns when a battery is not available to provide backup power
• LED Indicators: Provide easy-to-read status of the unit and utility power conditions
• LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms
• Serial connectivity: Provides management of the UPS via a serial port.
• Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded
• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
• Management Software: Allows you to easily monitor your utility power and manage your UPS

TECHNICAL SPECS

Output

• Max Configurable Power (Watts): 800Watts / 1.0kVA
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load: 88.0 %
• Output Voltage Distortion: 3 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220 V, 240 V
• Load Crest Factor: 3 : 1
• Topology: Double conversion online
• Waveform type: Sine wave
• Bypass: Internal bypass (automatic and manual)

Input

• Input frequency: 40 - 70 Hz Auto sensing
• Input voltage range for main operations: 110 - 285 50 % load, 160 - 280 Full loadV
• Efficiency at Full Load: 88.0 %
• Other Input Voltages: 220 V, 240 V

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 4 hour(s)
• Nominal Battery Voltage: 24 V
• Replacement Battery: APCRBCV200
• Runtime: 4 min max

Communications & Management

• Control panel: Multifunction LCD status and control console

• Interface Port(s): DB-9 RS-232, USB
• Available slots: 1

Surge Protection and Filtering

• Surge energy rating: 600 Joules

Physical

• Height: 8.6 CM
• Width: 43.7 CM
• Depth: 31.2 CM
• Net Weight: 11 KG
• Shipping weight: 13.1 KG

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 60 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 15000meters
• Audible noise at 1 meter from surface of unit: 50.0dBA
• Online thermal dissipation: 745.0BTU/hr
• Protection Class: IP20
