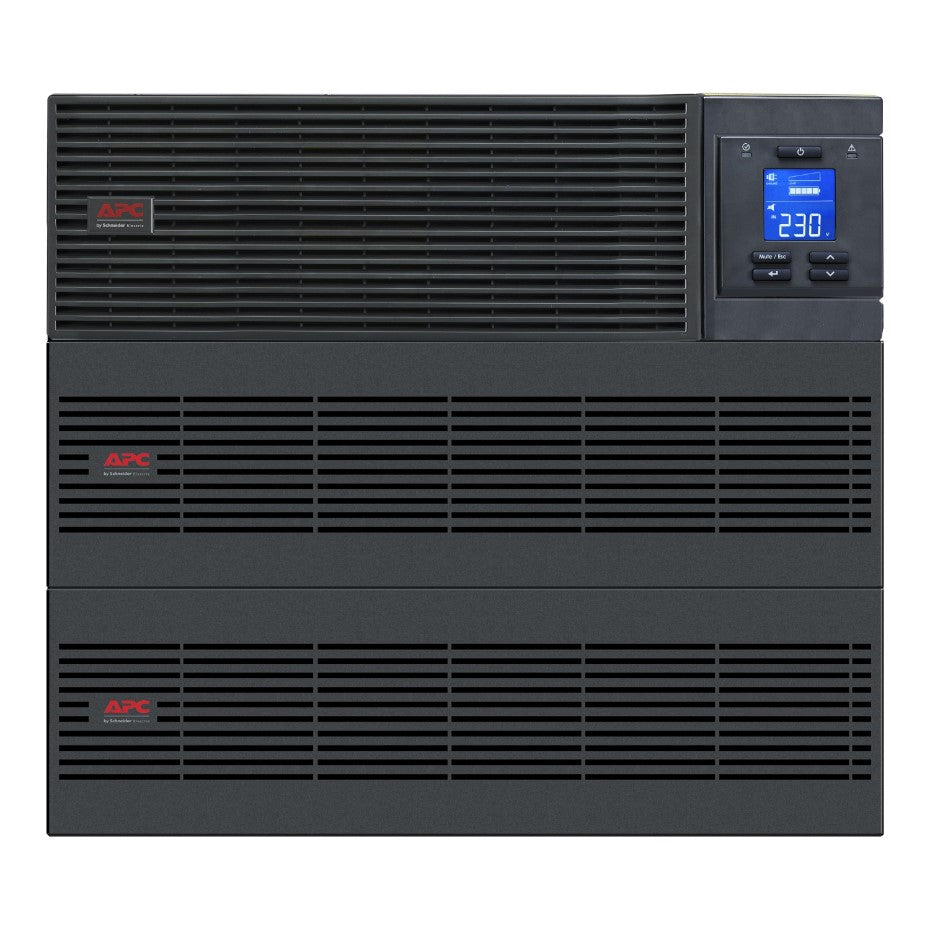

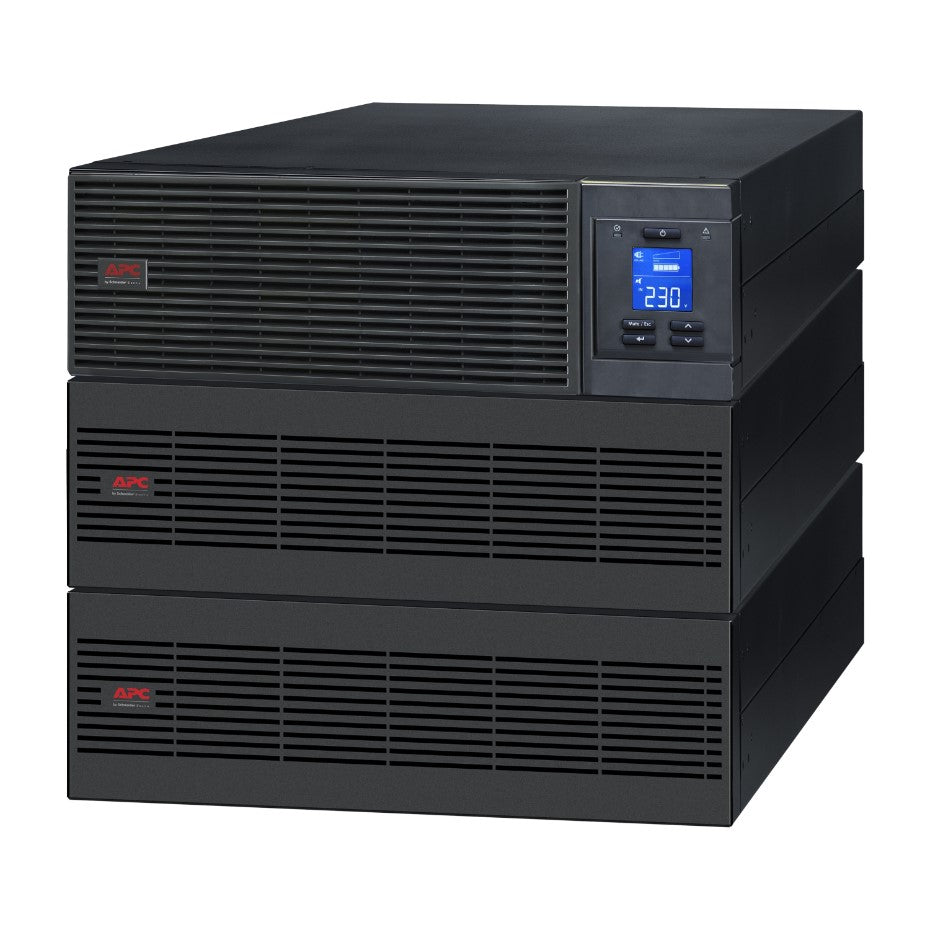

APC Easy UPS On-Line, 15kVA / 15000va, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, With Rail Kit And External Battery Pack With Extended Runtime SRV15KRILRK

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Key Features

• Run time for load for 15000va: 4 min 37 seconds
• Output power capacity: 15.0kWatts / 15.0kVA
• Rack Height: 9U
• Main Input Voltage: 230 V, 415 V
• Main Output Voltage: 230V
• Nominal Input Voltage: 220 V, 230V, 415 V

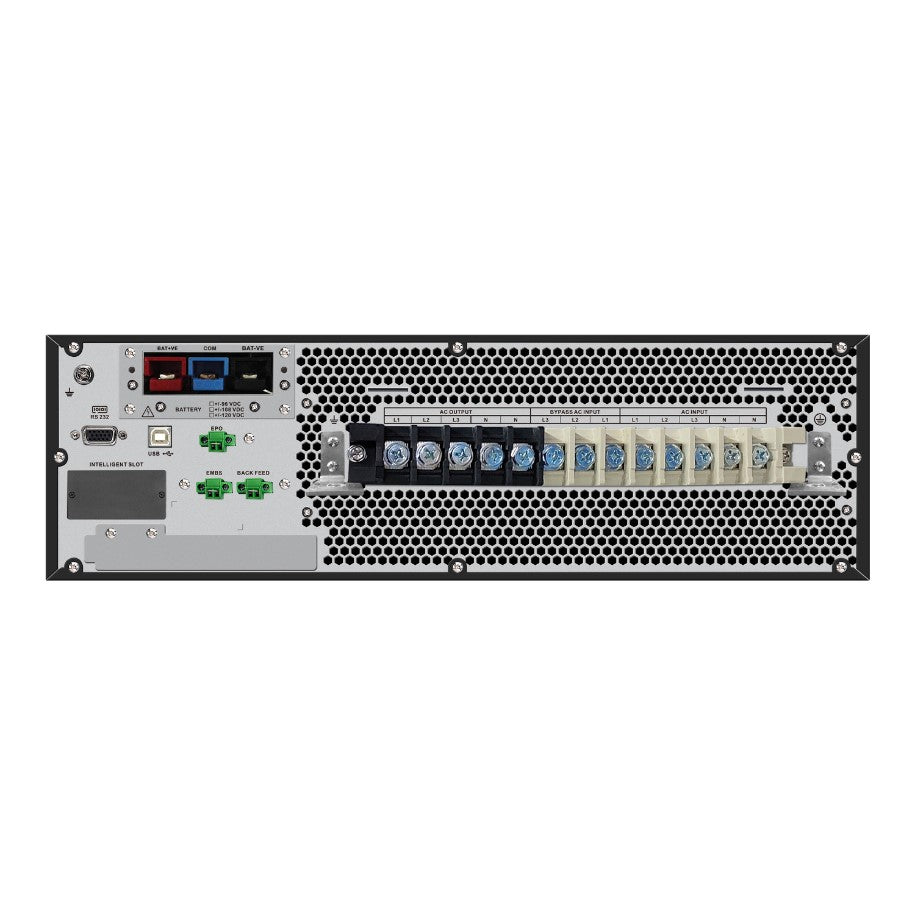

• Input Connections: Hard wire 3-wire (1P + N + E)

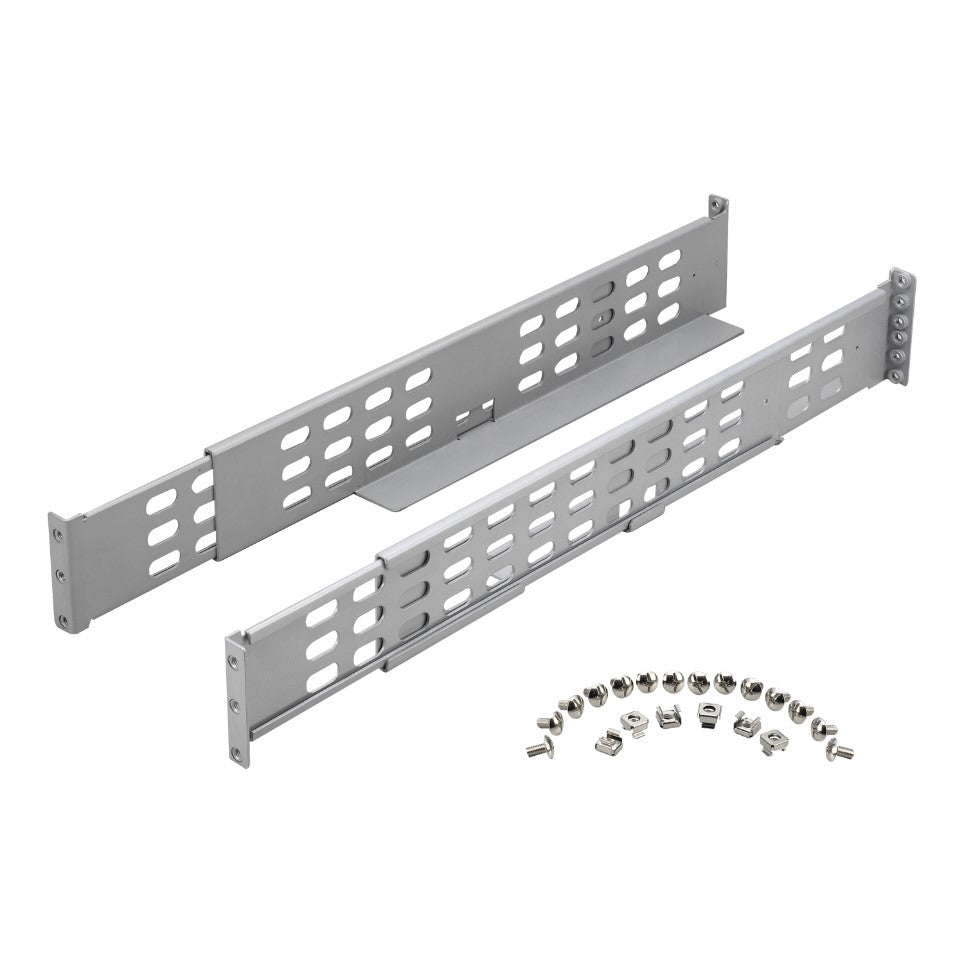

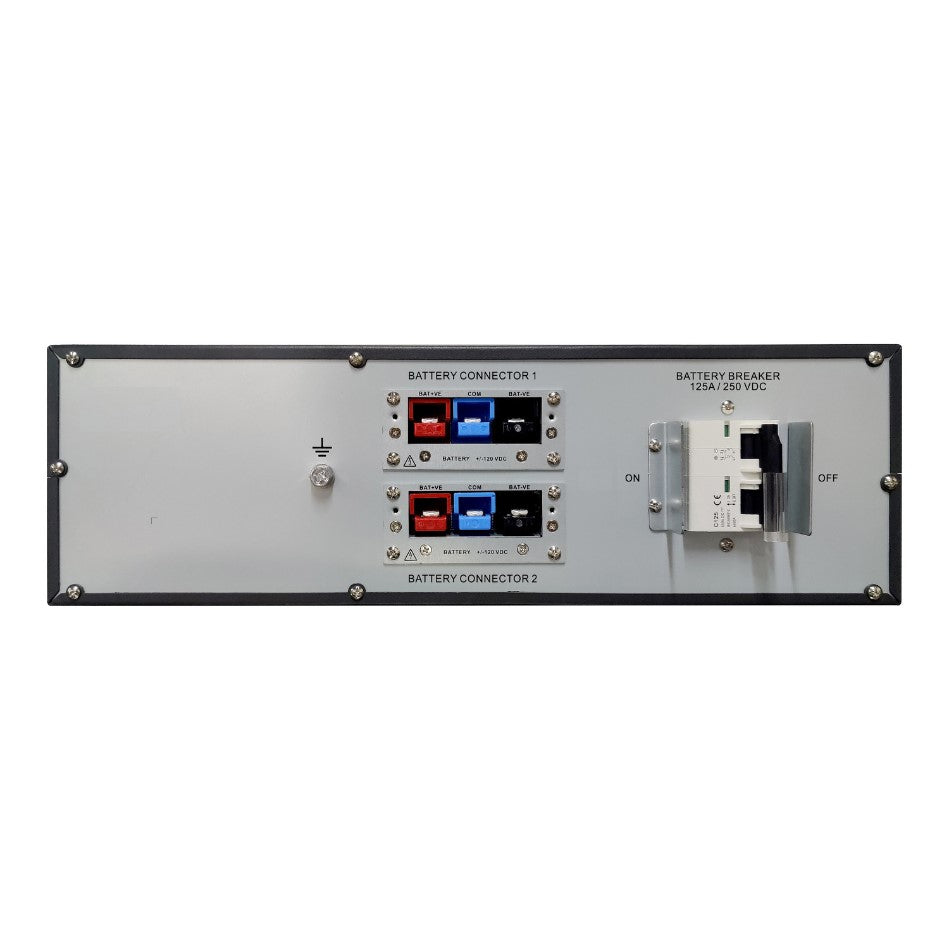

• Provided equipment: 1 USB cable, 1 RS-232 configuration cable, 3 rack mounting brackets, 3 stabilization/wall mounting feet, 6 jumper bar, 2 external battery pack, 1 battery cable, user manual
• Automatic internal bypass: Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load
• Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power
• ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation
• Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling
• Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging
• LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms
• Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
• Audible alarms: Provides notification of changing utility power and UPS power conditions
• Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement
• Disconnected battery notification: Warns when a battery is not available to provide backup power
• LED Indicators: Provide easy-to-read status of the unit and utility power conditions
• LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms
• Serial connectivity: Provides management of the UPS via a serial port.
• Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded
• Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
• Management Software: Allows you to easily monitor your utility power and manage your UPS

TECHNICAL SPECS

Output

• Max Configurable Power (Watts): 15.0kWatts / 15.0kVA
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Efficiency at Full Load: 95.0 %
• Output Voltage Distortion: 2 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 220 V, 230 V, 415 V
• Load Crest Factor: 3 : 1
• Topology: Double conversion online
• Waveform type: Sine wave
• Bypass: Internal bypass (automatic and manual)

Input

• Input frequency: 40 - 70 Hz Auto sensing
• Input voltage range for main operations: 110...300 V half load 176...300 V full load
• Number of input connectors: 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
• Efficiency at Full Load: 95.0 %
• Other Input Voltages: 220 V, 230 V, 415 V

Batteries & Runtime

• Battery type: VRLA
• Typical recharge time: 6 hour(s)
• Battery Voltage: +/- 120 V
• Battery Charge Power (Watts): 2340 Watts
• Runtime: View Runtime Graph
• Efficiency: View Efficiency Graph

Communications & Management

• Control panel: Multifunction LCD status and control console

• Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO): Yes

Surge Protection and Filtering

• Surge energy rating: 600 Joules

Physical

• Height: 39.3 CM
• Width: 43.8 CM
• Depth: 69.0 CM
• Net Weight: 157.0 KG

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 60 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 15000meters
• Audible noise at 1 meter from surface of unit: 65.0dBA
• Online thermal dissipation: 2503.0BTU/hr
• Protection Class: IP20
