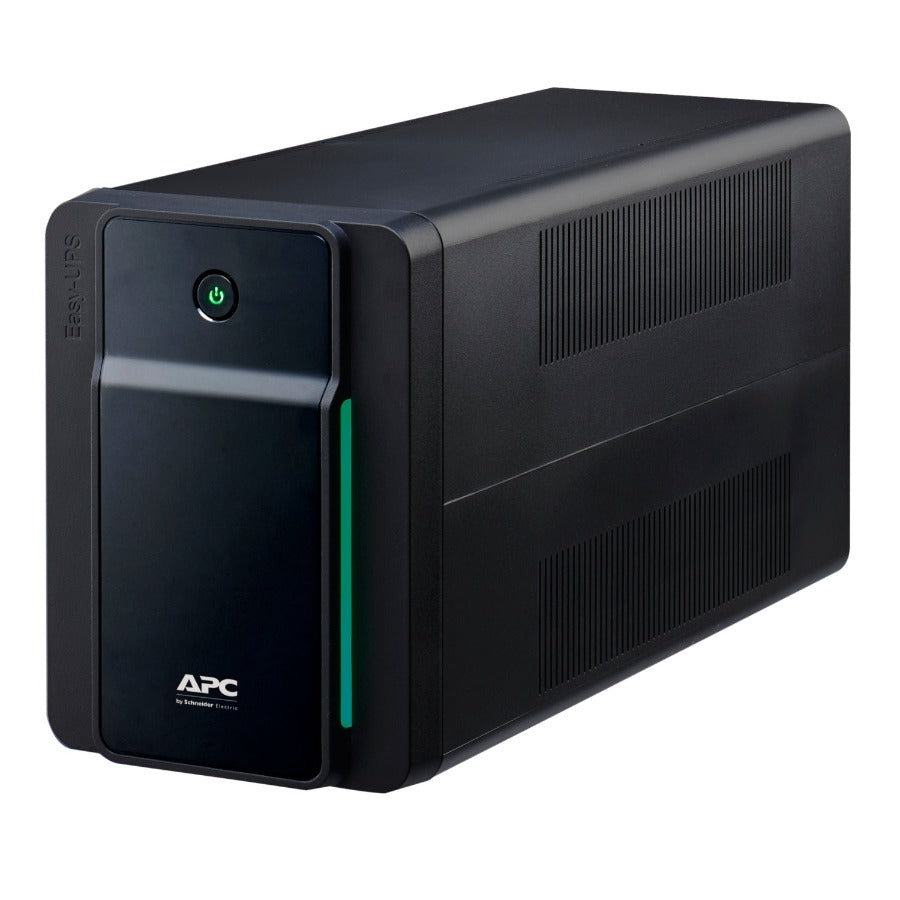

APC Easy UPS BVX 2200VA, 230V, AVR, 4 IEC Sockets BVX2200Li

• Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Battery backup and surge protection: Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
• Battery and surge protected outlets: Back up and protect your hardware and data during power outages, surges and spikes .
• Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Advanced Safety Features: Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
• Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
• LED Indicators: Provide easy-to-read status of the unit and utility power conditions.
• Audible alarms: Provides notification of changing utility power and UPS power conditions
• Sleek design: Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
• Cold-start capable: Provides temporary battery power when the utility power is out.
• Boost Automatic Voltage Regulation (AVR): Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
• Transformer-block spaced outlets: Protect equipment with input transformer blocks without blocking access to other receptacles.

Technical Specifications

• Max Configurable Power (Watts): 1200 Watts / 2.2kVA
• Rated power in VA: 2200 VA
• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
• Plug standard: IEC 60320 C20
• Nb of power socket outlets: 6 IEC 320 C19
• Topology: Line interactive
• Waveform type: Stepped approximation to a sinewave
• Transfer Time: 6 ms typical : 10 ms maximum
• Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing
• Input voltage range for main operations: 140 - 300 (230 V) ACV
• Number of Power Cords: 1
• Input Power Factor at Full Load: 0.54
• Full load runtime: 00:01:00 1200 W
• Half load runtime: 00:06:30 600 W
• Run Time: View Runtime Graph

• Battery type: Lead-acid battery
• Typical recharge time: 8 hours
• Nominal Battery Voltage: 24 V
• Battery capacity: 9.0 Ah
• Control panel: LED Status display with on line : on battery
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Height: 19 cm
• Width: 14 cm
• Depth: 39 cm
• Net Weight: 12.2 kg
• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 40 °C
• Storage Elevation: 0 - 3000meters
• Audible noise at 1 meter from surface of unit: 40.0dBA
• Protection Class: IP20
