APC Easy UPS 3S 10kVA 10000va 400 V 3:3 UPS With Set of 3 Internal Batteries (INCLUDED) E3SUPS10KHB

Name: APC Easy UPS 3S 10kVA 10000va 400 V 3:3 UPS With Set of 3 Internal Batteries (INCLUDED) E3SUPS10KHB
Brand: APC
SKU: apc-e3sups10khb
Price: 30224000.0 TZS
Availability: InStock

30,224,000.00 TZS

Sale Sold out

18% Vat Inclusive. Shipping calculated at checkout.

Low stock: 1 left

Product variants

Quantity

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied with a set of 3 internal batteries.

View advert: Click here to see the product video

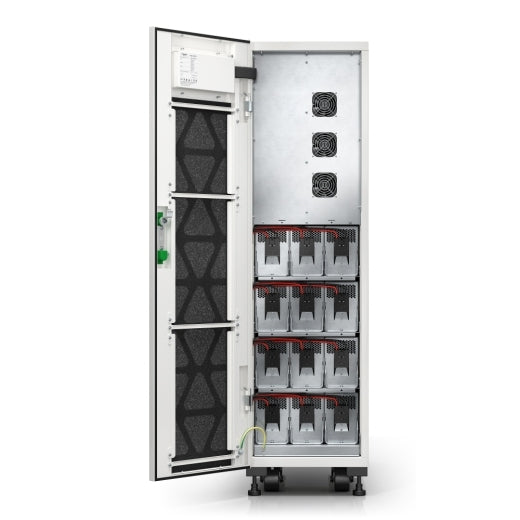

Includes: Set of 3 internal batteries, Dust filter, Installation guide
Not included: Any input/output cables and or wires NOT INCLUDED

Easy UPS 3S Features & Benefits

Parallel capability

Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Optional SNMP Card

When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites.

Wide Input Voltage Window

Saves your battery power for when you really need it - during power cuts!

Replaceable dust filters

protect the UPS in harsh environments.

Straightforward installation

Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Intuitive user interface

The intuitive graphical user interface allows for easy system configuration.

Easy to install fast

Quickly roll the compact and lightweight UPS into position.

Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.

Easy Loop Test

Verifies UPS performance before you connect your load, without the need for a load bank.

TECH SPECS

Max Configurable Power (Watts): 10.0kWatts / 10.0kVA
Output Voltage Distortion: Less than 3 %
Output Frequency (sync to mains): 50 Hz Sync to mains, 60 Hz Sync to mains
Other Output Voltages: 380 V, 415 V
Overload Operation: 130-150% for 1 minute and 125-130% for 10 minutes
Topology: Double conversion online
Output Voltage THD: < 3% linear load
Output Voltage Tolerance: +/- 1.5 %

Input frequency: 45 - 65 Hz
Maximum Input Current: 18.0A
Input voltage range for main operations: 304 - 477V
Input Total Harmonic Distortion: Less than 3 % for full load
Other Input Voltages: 380 V, 415 V
Input Power Factor at Full Load: 0.99

Battery type: VRLA - E3SBT4 X 4pcs (INCLUDED)
Nominal Battery Voltage: 240 V
Battery Slots Empty: 3
End of Discharge Battery Voltage: +/- 198 V DC
Maximum Available Short Circuit Current: 10kAmps
Efficiency: View Efficiency Graph
Runtime Chart: View runtime chart

Interface Port(s): E3S_Parallel, E3S_TempSensor

Height: 1400MM, 140.0CM
Width: 380MM, 38.0CM
Depth: 928MM, 92.8CM
Net Weight of UPS: 112.0KG
Shipping weight of UPS: 145.0KG

Approvals: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM

Selling terms

Installation/configuration has to be done by APC technicians: This UPS requires APC technical installation/configuration when purchased, for warranty to be active. Please note that the buyer has to have all wirings ready at a set date so that the APC team can come to install ( wirings and accessories not supplied with UPS)
Standard warranty for Dar es salaam: 1 year on-site repair or replace with factory authorized Start-Up (WARRANTY VALID ONLY IF INSTALLED BY APC SERVICE CENTRE AUTHORIZED TECHNICIANS)
Standard warranty for Tanzania Up-country: 1 year on-site repair or replace with factory authorized Start-Up (WARRANTY VALID ONLY IF INSTALLED BY APC SERVICE CENTRE AUTHORIZED TECHNICIANS). Additional charges for transport/lodging etc will be incurred by the buyer if machine is for up-country in Tanzania ( Charges depends on location)
Booking of Configuration: Once you purchase it, we will give a time and date when the APC team will be able to come for installation/configuration
Free setup (For Dar-es Salaam only): Our APC technicians will provide free installation at your site in Dar es Salaam provided that the buyer has all wirings and accessories ready (UPS is not supplied with any wires or accessories and have to be purchased separately by the buyer)
Setup with additional charges(For Up-country Tanzania): Our APC technicians will provide installation at your site in locations across Tanzania with an additional charge which depends on the location, provided that the buyer has all wirings and accessories ready (UPS is not supplied with any wires or accessories and have to be purchased separately by the buyer)
