- Sku: apc-e3mups80khb
- Type: UPS Power Backup

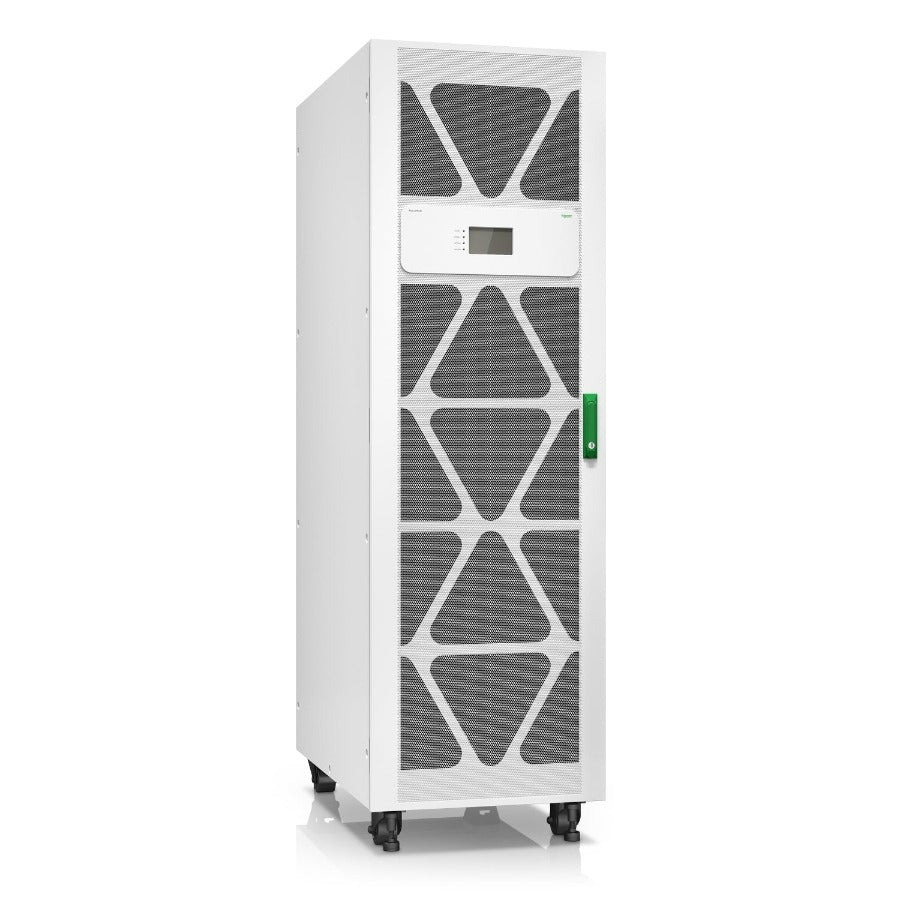

APC Easy UPS 3M 80kVA 80000va 400 V 3:3 UPS With Set of 6 Internal Batteries (INCLUDED) E3MUPS80KHB
81,440,000.00 TZS
Tax included.
Shipping calculated at checkout.
SHIPPING/ PICK-UP DETAILS FOR THIS PRODUCT
Estimated Shipping Widget will be displayed here!
PRODUCT DESCRIPTION
Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. This UPS is for internal batteries, Includes 5x8 start-up service. This UPS is supplied with a set of 6 internal batteries.
- View advert: Click here to see the product video
- Includes: Set of 6 internal batteries, Dust filter, Installation guide
- Not included: Any input/output cables and or wires NOT INCLUDED
Easy UPS 3M Features & Benefits
Protection
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Replaceable dust filters
protect the UPS in harsh environments.
Convenience
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
TECH SPECS
Output
- Main Output Voltage: 400 V, 3 phases
- Max Configurable Power (Watts): 80.0kWatts / 80.0kVA
- Output Voltage Distortion: Less than 3 %
- Output Frequency (sync to mains): 50 Hz Sync to mains, 60 Hz Sync to mains
- Other Output Voltages: 380 V, 415 V
- Topology: Double conversion online
- Wave type: Sine wave
- Output Voltage THD: < 3% linear load
- Bypass type: Built-in static bypass
- Output overload operation: 10 minutes at 125% and 60 seconds at 150%
Input
- Main Input Voltage: 400 V, 3 phases
- Maximum Input Current: 104.0A
- Max short time withstand current: 10 kA
- Input frequency: 40 - 70 Hz
- Input voltage range for main operations: 342 - 477V
- Input Total Harmonic Distortion: Less than 3 % for full load
- Load power factor: 0.5 leading to 0.5 lagging without derating
- Other Input Voltages: 380 V, 415 V
- Input Power Factor at Full Load: 0.99
- Number of input connectors: 1 hard wire 5-wire (3P + N + E)
Batteries & Runtime

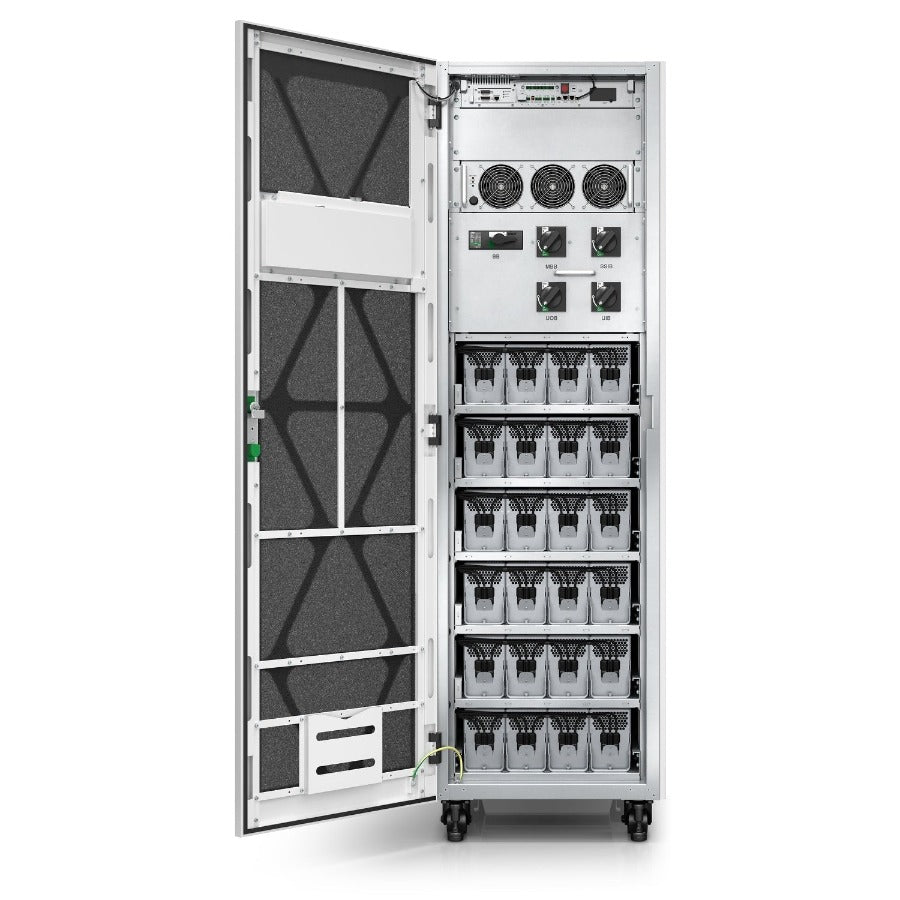

- Battery type: 9aH modular battery strings x 6pc (INCLUDED)
- Nominal Battery Voltage: 240 V
- Battery Slots Empty: 6
- Max current discharge: 222 A
Communications & Management
- Control panel: Touch screen LCD user interface
Physical
- Height: 197 CM
- Width: 60 CM
- Depth: 100 CM
- Net Weight of UPS: 339 KG
- Package weight: 387 KG
Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 1015.05meters
- Storage Temperature: -15 - 40 °C
- Storage Relative Humidity: 0 - 95 (Non-condensing) %
- Storage Elevation: 0 - 15240 meters
- Online thermal dissipation: 10523.0BTU/hr
- Protection Class: IP20
Conformance
- Approvals: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM
Selling terms
- Configuration/Overlooking has to be done by APC technicians (For Dar es salaam only): This UPS requires APC technical configuration when purchased, for warranty to be active. Please note that the buyer has to install the UPS themselves, with an APC technician overlooking the installation. (wirings and accessories not supplied with UPS)
- Standard warranty for Dar es salaam: 1 year on-site repair or replace with factory authorized Start-Up (WARRANTY VALID ONLY IF CONFIGURED/OVERLOOKED) BY APC SERVICE CENTRE AUTHORIZED TECHNICIANS)
- Standard warranty for Tanzania Up-country: 1 year on-site repair or replace with factory authorized Start-Up (WARRANTY VALID ONLY IF CONFIGURED/ OVERLOOKED) BY APC SERVICE CENTRE AUTHORIZED TECHNICIANS. Additional charges for transport/ lodging etc will be incurred by the buyer if machine is for up-country in Tanzania (Charges depends on location)
- Booking of Configuration: Once you purchase it, we will give a time and date when the APC team will be able to come for configuration
- Setup with additional charges(For Up-country Tanzania): Our APC technicians will provide configuration at your site in locations across Tanzania with an additional charge which depends on the location, provided that the buyer installs the UPS themselves and has all wirings and accessories ready (UPS is not supplied with any wires or accessories and have to be purchased separately by the buyer)
