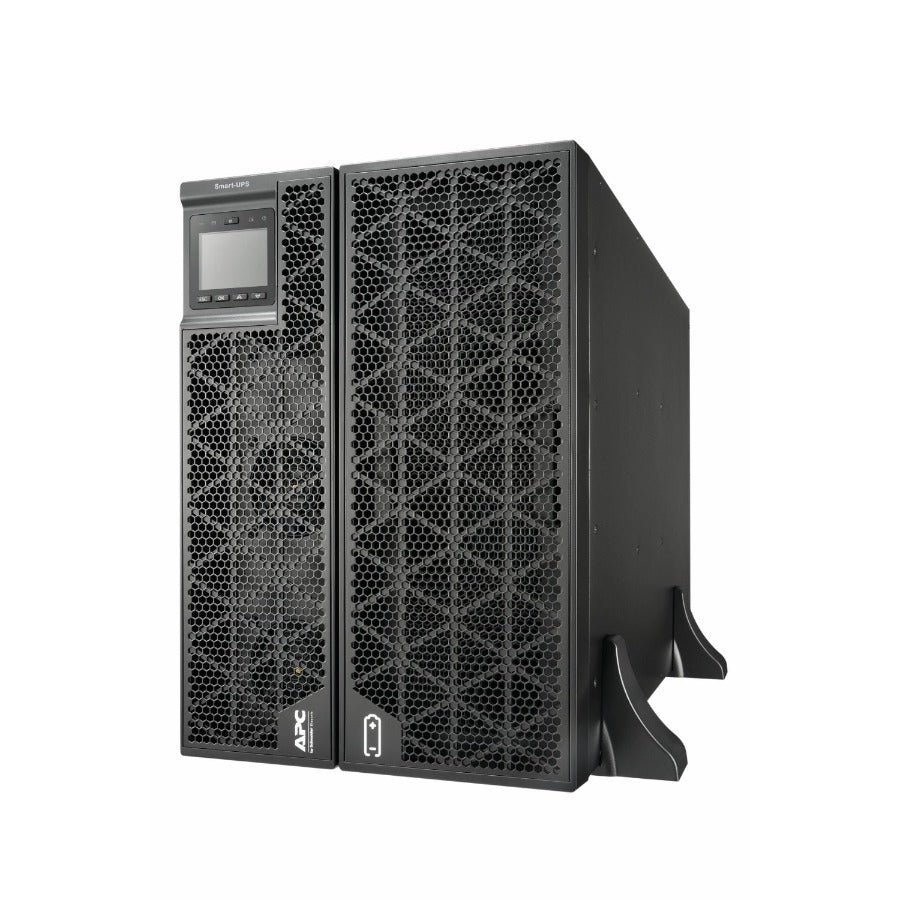

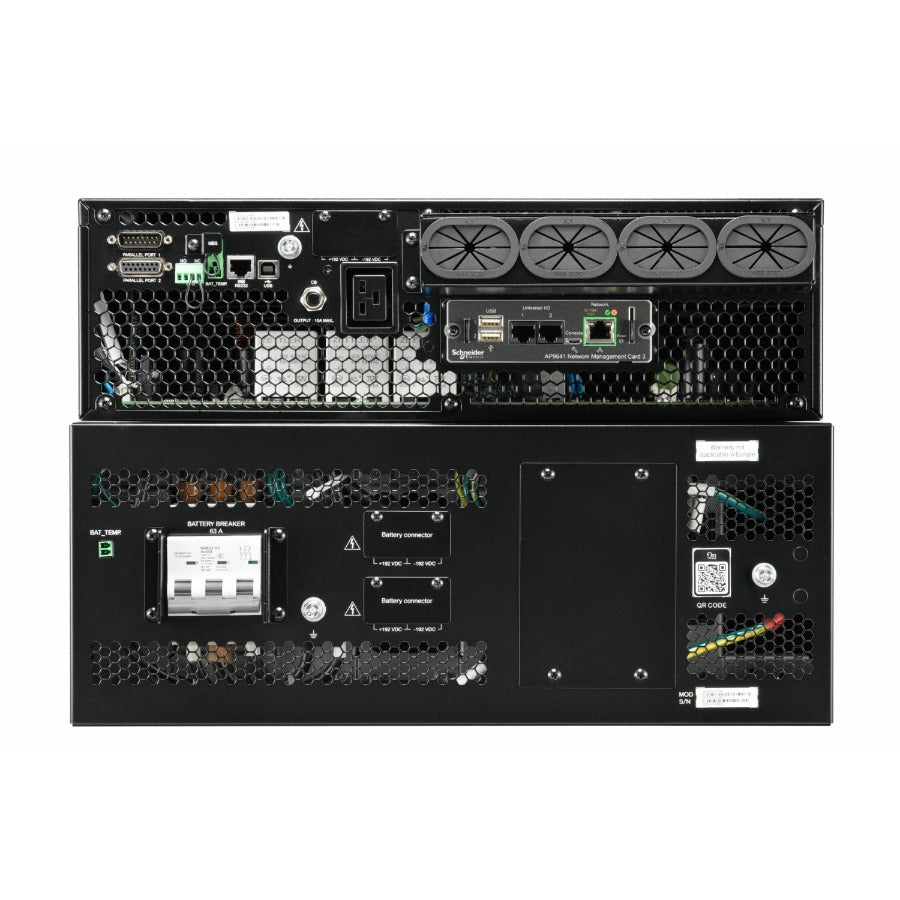

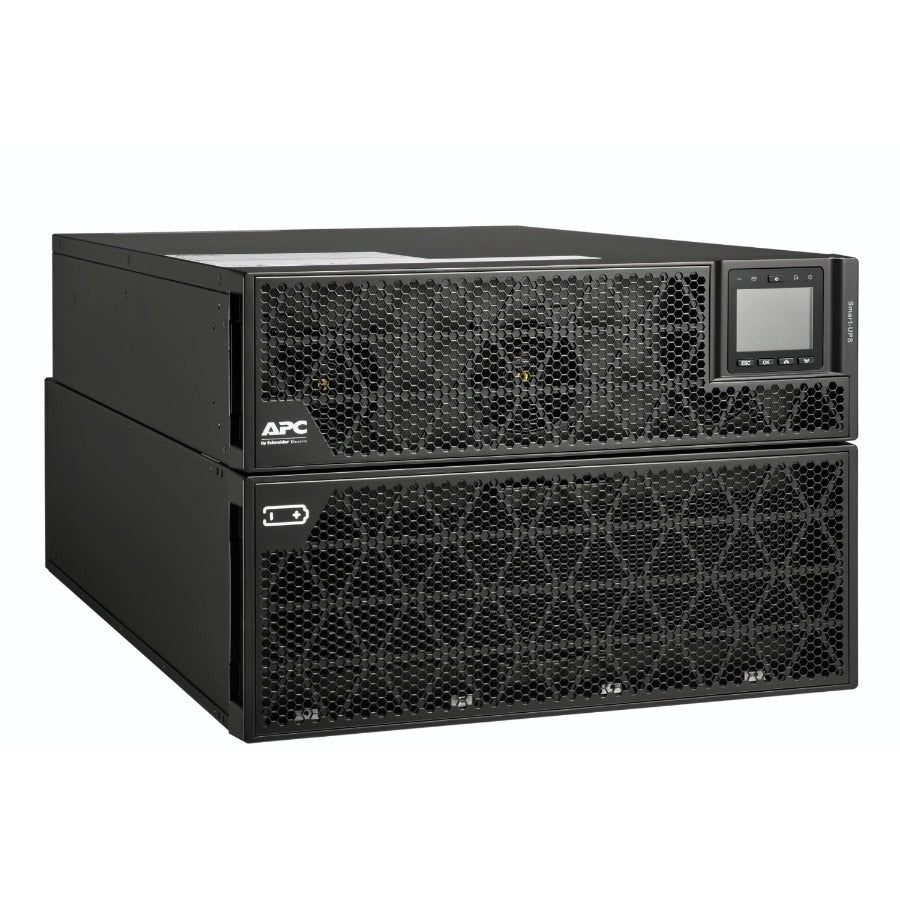

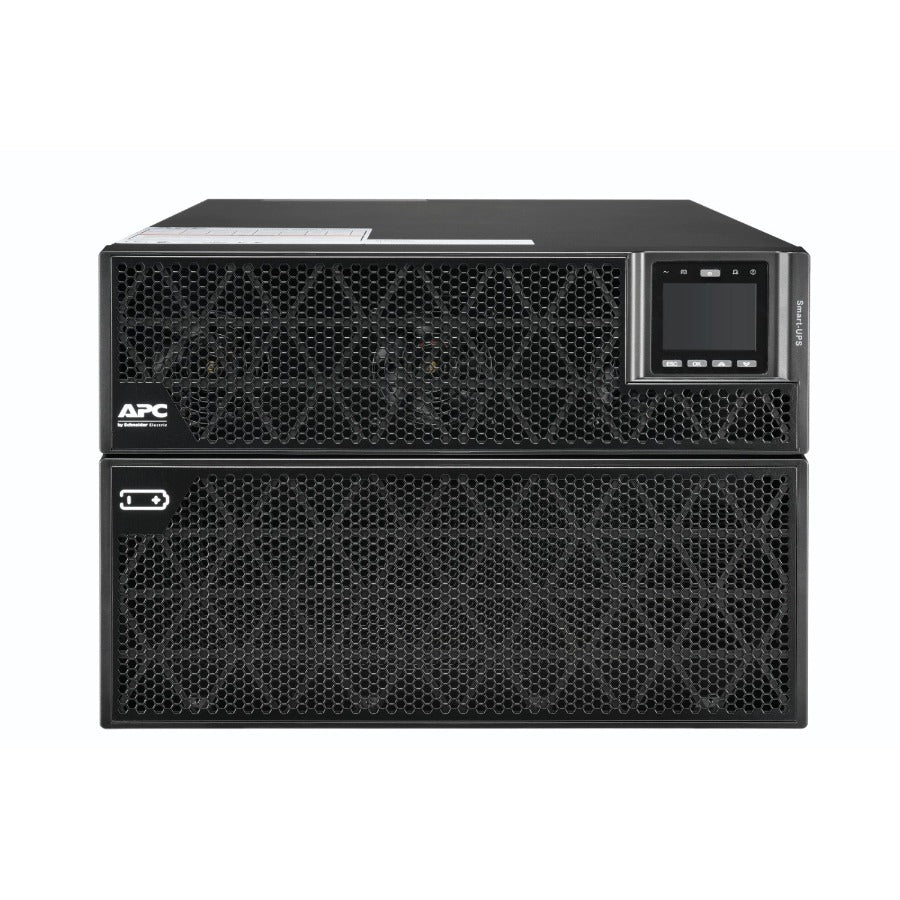

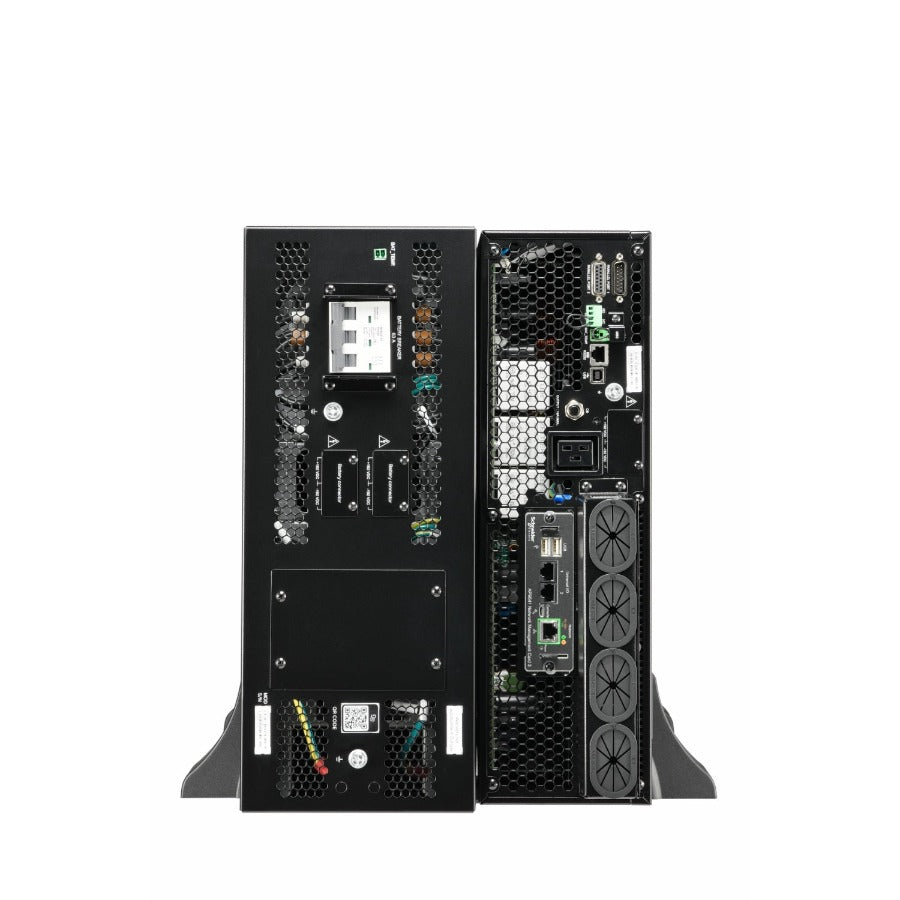

APC 20Kva 20000va Smart-UPS On-Line, Rack/Tower, Network Card, Without Rail Kit SRTG20KXLI

Specifications

Output

• Max Configurable Power (Watts): 20.0kWatts / 20.0kVA
• Output Voltage Note: Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage. 230 V for 1 Phase
• Output connector type: Hard wire 5 wire (3P + N + E) 1, Hard wire 3-wire (1P + N + E) 1, IEC connector 3-wire (1P + N + E) 1
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 0.1 Hz Sync to mains
• Other Output Voltages: 230 V
• Load Crest Factor: 3 : 1
• Topology: Double conversion online
• Waveform type: Sine wave
• Overload Operation: 60 seconds at 125% and 30 seconds at 150%
• Bypass: Built-in static bypass

Input

• Input frequency: 40 - 70 Hz Auto-sensing
• Input voltage range for main operations: 160 - 285, 380V
• Maximum input current: 87 A
• Switching current capacity: 125 A
• Number of input connectors: 1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)
• Input Total Harmonic Distortion: Less than 5 % for full load
• Other Input Voltages: 220, -, 240 V
• Load power factor: From 0.9 leading to 1 lagging

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 4hour(s)
• Nominal Battery Voltage: +/- 192 V
• Expected Battery Life (years): 2-4
• Battery Charge Power (Watts): 2.16kWatts
• Extendable Run Time: 1
• Battery Volt-Amp-Hour Capacity: 3366
• Efficiency in Battery Operation: 93.0 %
• Full load runtime: 00:03:30 20000 W
• Half load runtime: 00:09:30 10000 W
• Runtime: View runtime graph

Communications & Management

• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO): Yes
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Height: 30.6 cm
• Width: 44.0 cm
• Depth: 70.0 cm
• Net weight: 142.5 kg
• Shipping weight: 157.2 kg
• Mounting location: Front
• Mounting preference: Lower
• Mounting mode: Rack-mounted

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 45 °C
• Audible noise at 1 meter from surface of unit: 58.0dBA
• Online thermal dissipation: 2866.0BTU/hr
