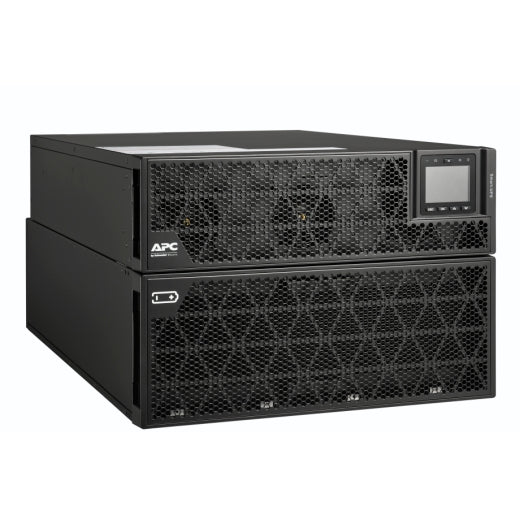

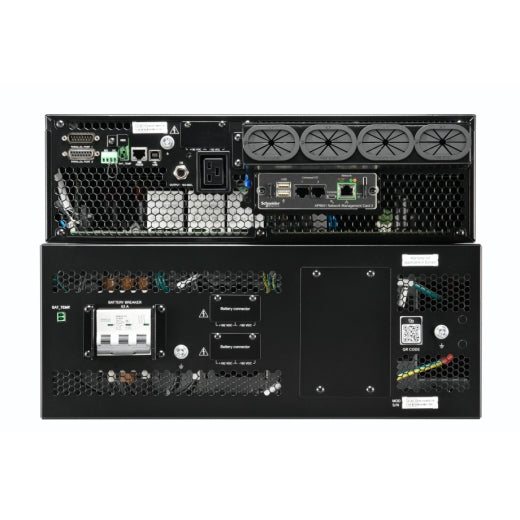

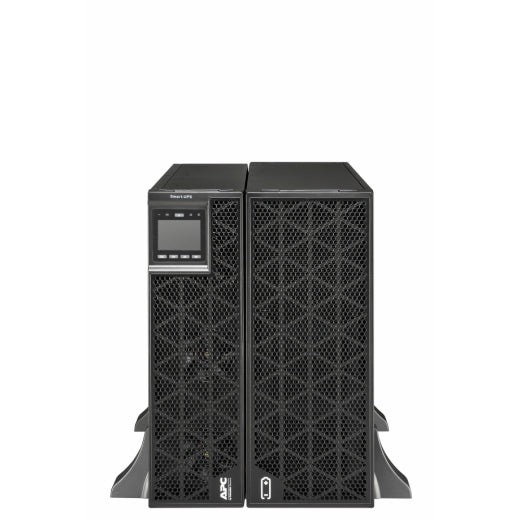

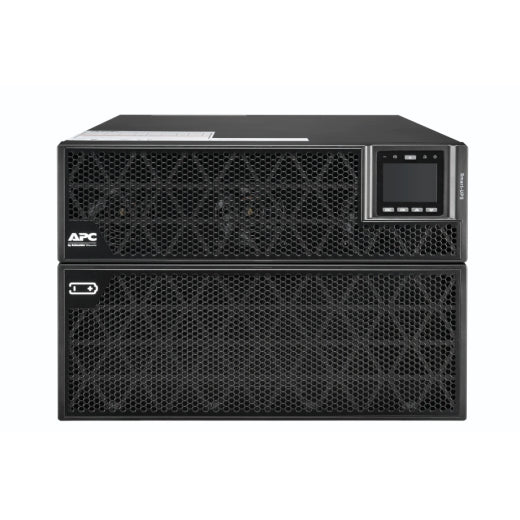

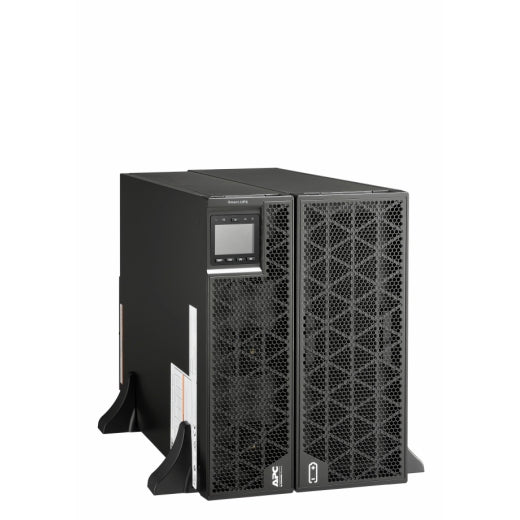

APC 15Kva 15000va Smart-UPS On-Line , Rack Tower, 230V Without Rail Kit SRTG15KXLI

Specifications

Output

• Max Configurable Power (Watts): 15.0kWatts / 15.0kVA
• Output Voltage Note: Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 0.1 Hz Sync to mains
• Other Output Voltages: 230 V
• Load Crest Factor: 3 : 1
• Topology: Double conversion online
• Waveform type: Sine wave
• Overload Operation: 60 seconds at 125% and 30 seconds at 150%
• Bypass: Built-in static bypass

Input

• Input frequency: 40 - 70 Hz Auto-sensing
• Input voltage range for main operations: 160 - 285, 380V
• Input Total Harmonic Distortion: Less than 5 % for full load
• Other Input Voltages: 220, -, 240 V

Batteries & Runtime

• Battery type: Lead-acid battery
• Typical recharge time: 4hour(s)
• Nominal Battery Voltage: +/- 192 V
• Expected Battery Life (years): 2-4
• Battery Charge Power (Watts): 2.16kWatts
• Extendable Run Time: 1
• Battery Volt-Amp-Hour Capacity: 3366
• Efficiency in Battery Operation: 93.0 %
• Runtime: View Runtime Graph

Communications & Management

• Control panel: Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO): Yes
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Height: 306MM, 30.6CM
• Width: 440MM, 44.0CM
• Depth: 700MM, 70.0CM
• Net Weight: 142.5KG

Environmental

• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Audible noise at 1 meter from surface of unit: 58.0dBA
• Online thermal dissipation: 2866.0BTU/hr
